Product Features
Product Description

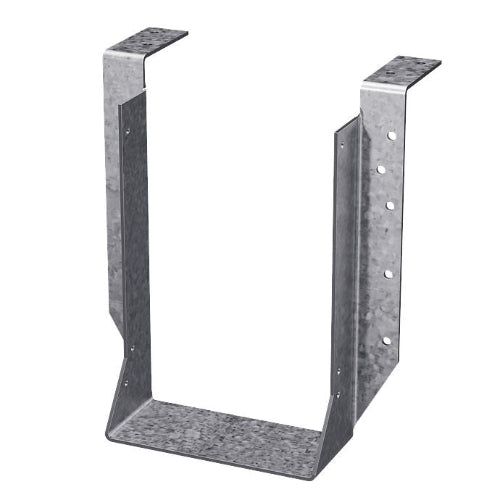

Simpson 6x10 Top-Flange Face Mount Hanger, Galvanized (HU610TF) - is a heavy-duty hybrid joist hanger engineered by Simpson Strong-Tie that combines the structural advantages of both face-mount and top-mount hanger designs. Built for demanding framing applications, the HU610TF delivers secure, reliable connections for 6x10 lumber while offering the flexibility of face-nailing for firm attachment to the supporting member. Its top-flange design sits over the header for added bearing support, making it an ideal choice for floor, deck, and roof framing where strength and stability are paramount.
Key Features
- Hybrid hanger design incorporates advantages of both face-mount and top-mount hangers for versatile, high-strength connections
- Top-flange construction provides bearing support over the header beam, reducing installation complexity
- Face-nailing capability allows the hanger to be securely attached to the supporting member
- Available with one "A" flange concealed for cleaner installations
- Heavy-duty 12-gauge steel construction for superior load capacity in demanding framing applications
- Zinc Galvanized G90 coating provides corrosion resistance for interior and protected exterior use
- Made in the United States

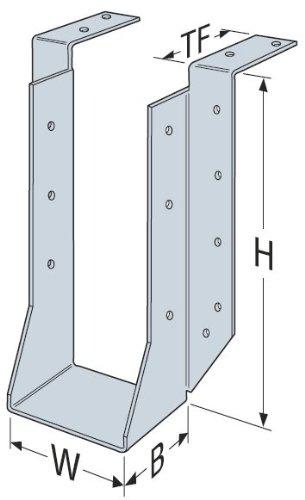

Specifications
- Model Number: HU610TF
- Joist Size: 6x10
- Gauge: 12
- W (in.): 5.5
- H (in.): 9 1/8
- B (in.): 2.5
- TF (in.): 2.5
- Coating/Material: Zinc Galvanized, G90
- Country of Origin: United States
Options
Frequently Asked Questions
- What makes the HU610TF a "hybrid" hanger?
- The HU610TF is described as a hybrid hanger because it incorporates the advantages of both face-mount and top-mount hanger styles. It features a top flange that sits over the header for bearing support while also allowing face-nailing, giving installers the benefits of both connection methods in a single product.
- What lumber size is the HU610TF designed to support?
- The HU610TF is specifically designed for 6x10 dimensional lumber, with an interior width of 5.5 inches and an interior height of 9 1/8 inches to accommodate that joist size.
- What type of coating does the HU610TF have, and where is it appropriate to use?
- The HU610TF features a Zinc Galvanized G90 coating, which provides a protective layer against corrosion. This makes it suitable for use in typical interior framing and protected exterior applications where enhanced corrosion resistance is needed.
- Can the HU610TF be installed with one flange hidden or concealed?
- Yes. The HU610TF is available with one "A" flange concealed, allowing for a cleaner aesthetic or to accommodate specific framing conditions where a hidden flange installation is preferred.
