Product Description

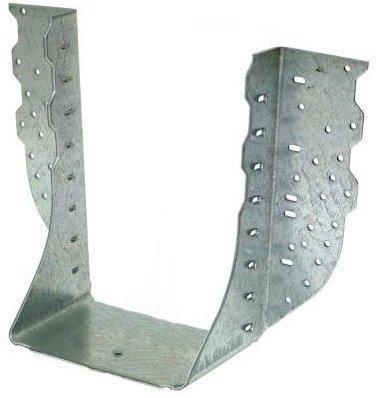

The Simpson HGUS6.88/10 Face-Mount Hanger is an extra-heavy-capacity girder hanger from Simpson, engineered to deliver reliable, high-load support in demanding structural framing applications. Designed for face-mount installation, this hanger is a dependable solution for contractors and builders who need a robust connection where girder support is critical.
Key Features
- Extra-heavy-capacity design - built specifically for girder support applications, giving structural professionals confidence when high loads are in play
- Double-shear nailing system - distributes the load through two points on each joist nail, increasing connection strength and reducing stress concentration
- Value-engineered construction - delivers high carrying capacity at an economical price, helping keep structural projects on budget without sacrificing performance
- 12-gauge steel construction - provides the structural integrity and rigidity required for heavy-capacity girder hanger applications
- Zinc Galvanized G90 coating - offers reliable corrosion resistance to help extend service life across a range of installation environments
Why This Product
- Purpose-built for girder support - the extra-heavy-capacity rating means this face-mount hanger is sized and engineered for the most demanding load-bearing connections, not adapted from a lighter-duty design
- Strength through smarter nailing - the double-shear nailing approach maximizes the structural value of every nail, so builders get more performance out of each fastened connection
- Cost-effective without compromise - the value-engineered construction means structural capacity and budget efficiency work together, making this hanger a practical choice for large framing projects
- Domestic quality you can count on - produced in the United States under Simpson's manufacturing standards, this hanger meets the expectations of professionals who specify quality hardware for structural applications
Specifications

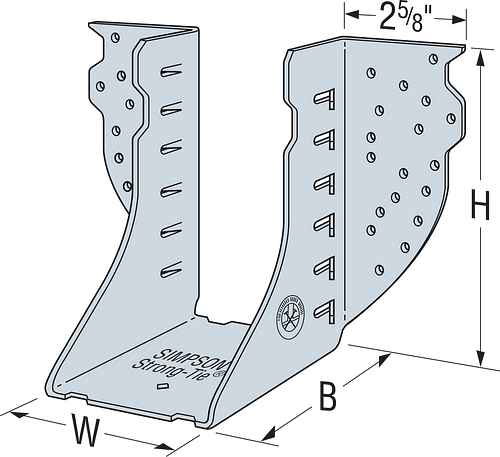

- Model No.: HGUS6.88/10
- Gauge (Ga.): 12
- W (in.): 6-7/8
- H (in.): 8-13/16
- B (in.): 4
- Coating/Material: Zinc Galvanized, G90
- Country of Origin: United States
Options
Contact us for Configurable Options and Special orders
Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
Frequently Asked Questions
What makes the HGUS6.88/10 suitable for heavy-load applications?
The HGUS6.88/10 is an extra-heavy-capacity hanger specifically designed for girder support. Its double-shear nailing system distributes the load through two points on each joist nail, resulting in greater strength and reliability under demanding structural loads.
What gauge steel is used in the HGUS6.88/10?
The HGUS6.88/10 is constructed from 12-gauge steel, providing the structural integrity required for heavy-capacity girder hanger applications.
What corrosion protection does the HGUS6.88/10 have?
The HGUS6.88/10 features a Zinc Galvanized G90 coating, which offers reliable corrosion resistance to help extend the service life of the hanger in various installation environments.
What are the dimensions of the HGUS6.88/10?
The HGUS6.88/10 has a width (W) of 6-7/8 inches, a height (H) of 8-13/16 inches, and a bearing seat depth (B) of 4 inches, making it sized for substantial girder members.
