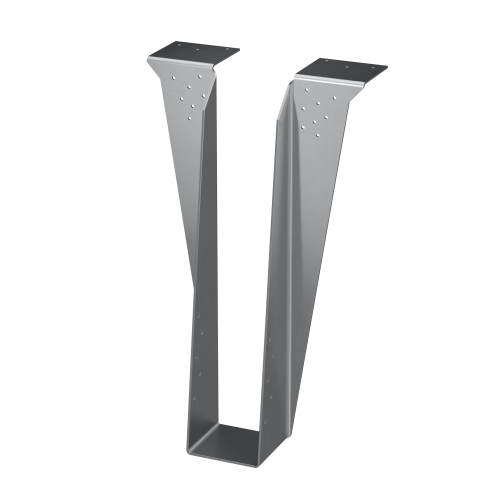

The Simpson HB5.50/12 Top Flange Hanger for Heavy Beam is an engineered structural connector purpose-built to carry medium to high loads in solid sawn and engineered wood construction. Designed as a one-piece top-flange hanger, the HB5.50/12 delivers a cost-effective, high-performance alternative to welded hangers - combining structural integrity with ease of installation. The full-height joist flange captures the top chord of the joist, actively preventing rotation and ensuring long-term connection stability in demanding heavy beam applications.

Key Features

• Top-Flange Design: Mounts to the top of the supporting member for clean, secure load transfer without the need for face-mounting hardware
• Full-Height Joist Flange: Captures the top chord of the joist to prevent rotation under load
• One-Piece Construction: Eliminates the cost and complexity associated with welded multi-piece hangers
• Medium-to-High Load Capacity: Engineered to support demanding load requirements typical of heavy beam applications
• Solid Sawn & Engineered Wood Compatible: Suitable for use with a broad range of lumber types and engineered wood products
• Galvanized Finish: Provides corrosion resistance for long service life
• Made in the United States: Domestically manufactured for consistent quality standards

Specifications

• Model Number: HB5.50/12
• Description: 5-1/4 x 12 Top Flange Hanger for Heavy Beam
• Material: 10 Gauge Steel
• Finish: Galvanized
• Country of Origin: United States

Approved Applications

• Heavy beam connections in residential and commercial wood-frame construction
• Solid sawn lumber framing systems requiring top-flange hanger support
• Engineered wood product (EWP) connections including LVL, PSL, and glulam beams
• Structural applications demanding medium-to-high vertical load transfer
• Situations where rotation prevention at the joist top chord is required

Note: Product dimensions may differ from picture. Please see item description for specifications.

Options

• Contact us for Special orders

Frequently Asked Questions

What beam size is the HB5.50/12 designed to support?

The HB5.50/12 is specifically sized for a 5-1/4 x 12 heavy beam, making it suitable for medium-to-high load applications in solid sawn and engineered wood construction.

How does the top-flange design differ from a standard face-mount hanger?

Unlike face-mount hangers that attach to the side of the supporting member, the HB5.50/12 mounts to the top of the supporting member. This top-flange design allows for clean, secure load transfer without the need for face-mounting hardware, and the full-height joist flange captures the top chord of the joist to actively prevent rotation under load.

What material and finish is the HB5.50/12 made from?

The HB5.50/12 is constructed from 10 gauge steel with a galvanized finish, which provides corrosion resistance for long service life.

Is the HB5.50/12 compatible with engineered wood products?

Yes, the HB5.50/12 is suitable for use with both solid sawn lumber and a broad range of engineered wood products, making it versatile for various heavy beam construction applications.
