Product Features
Product Description

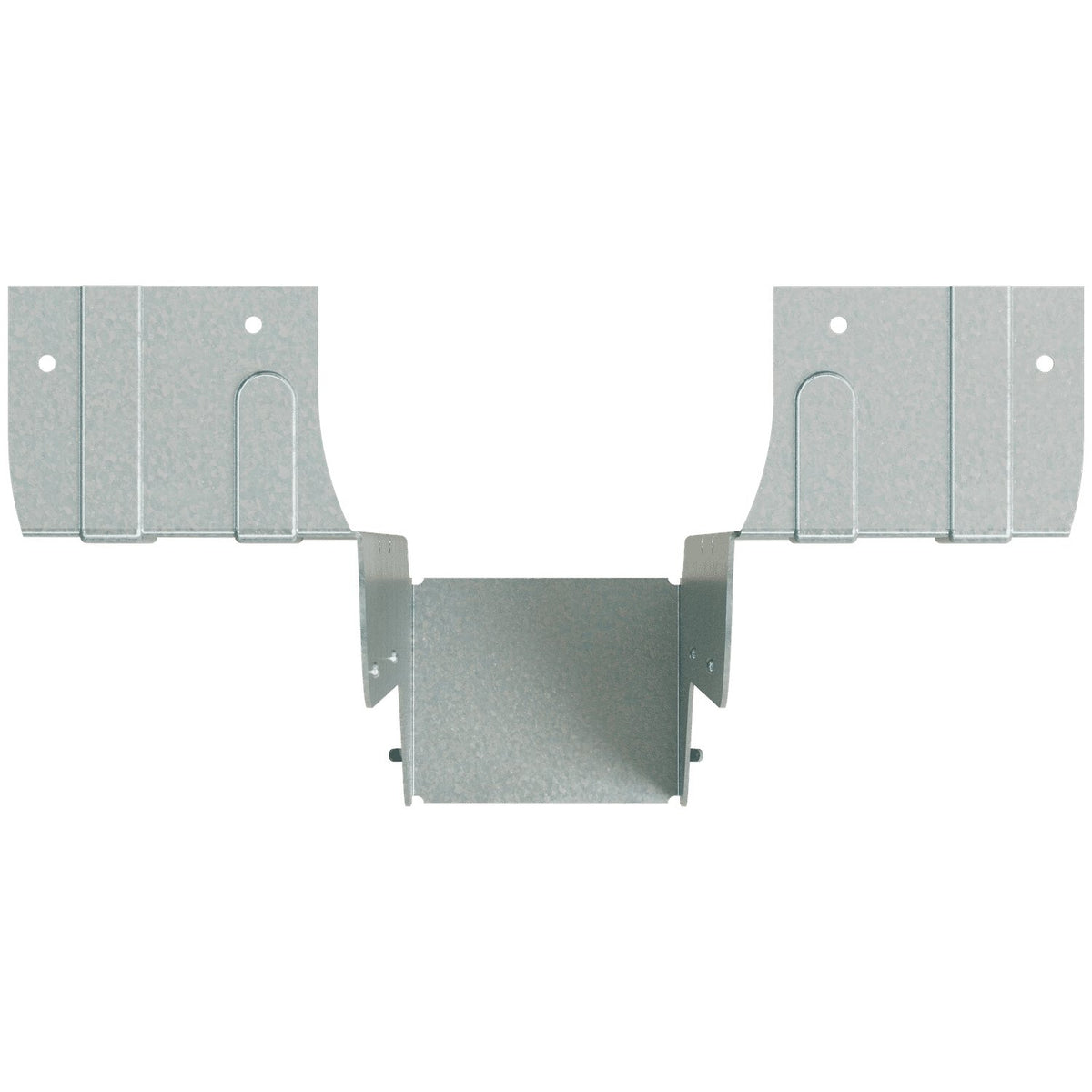

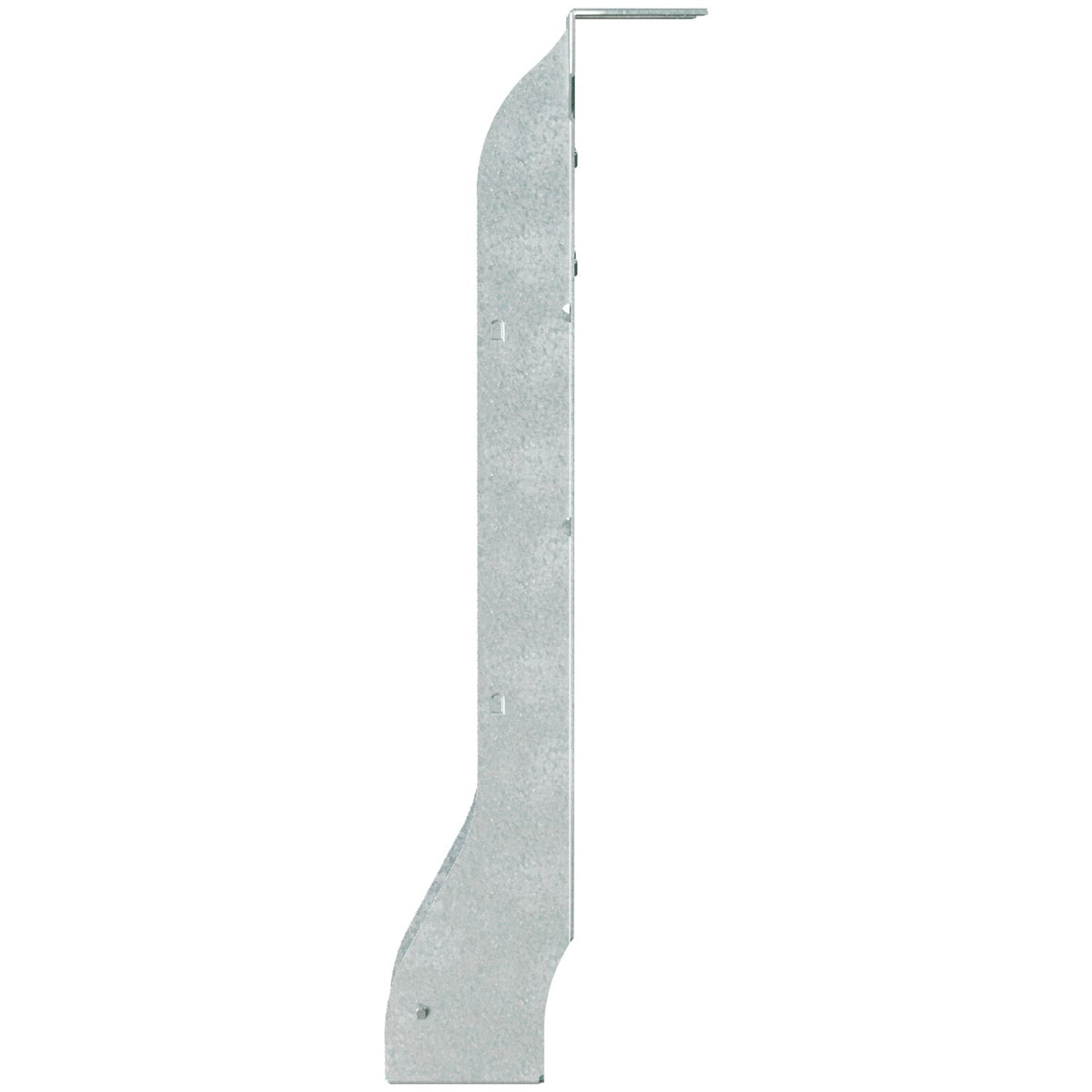

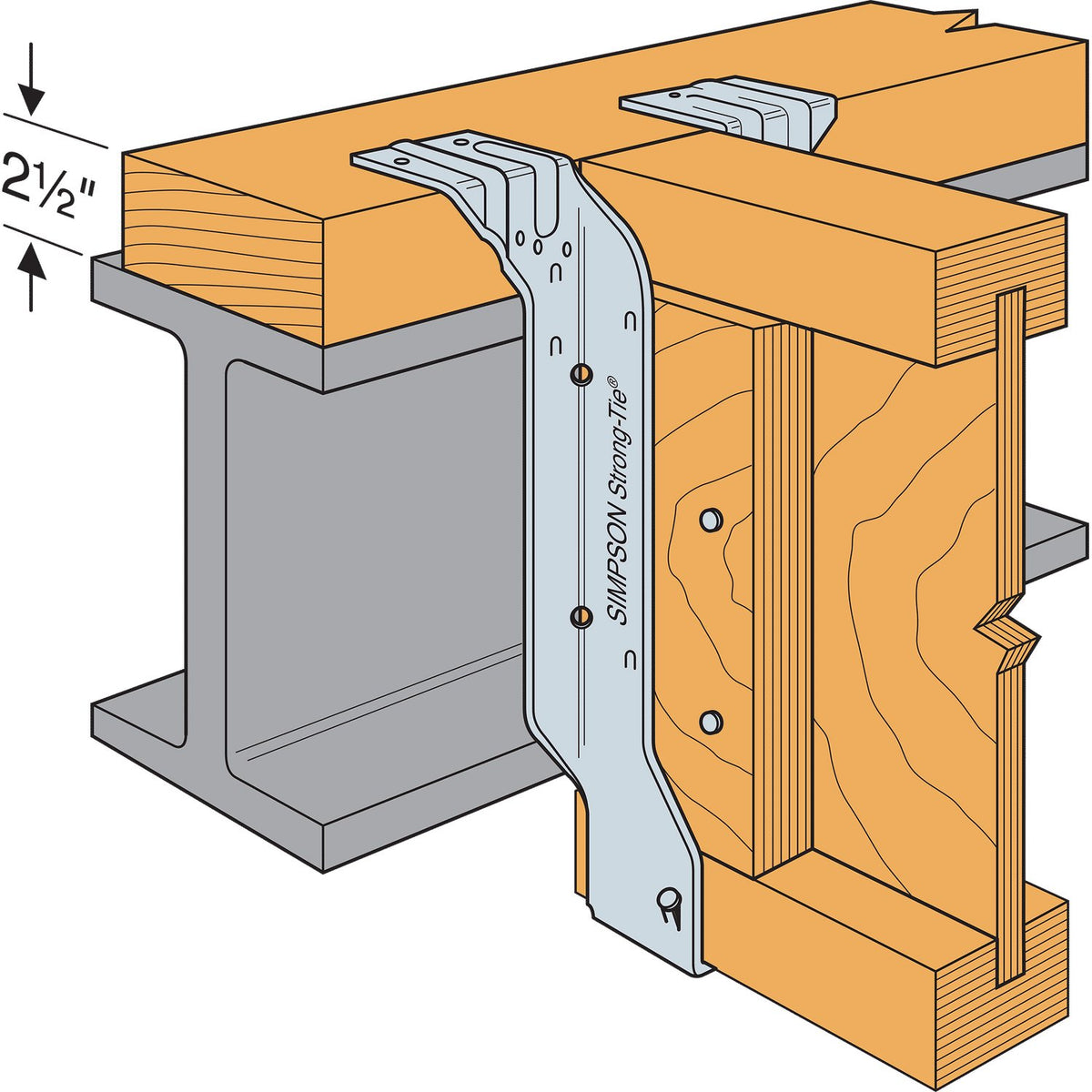

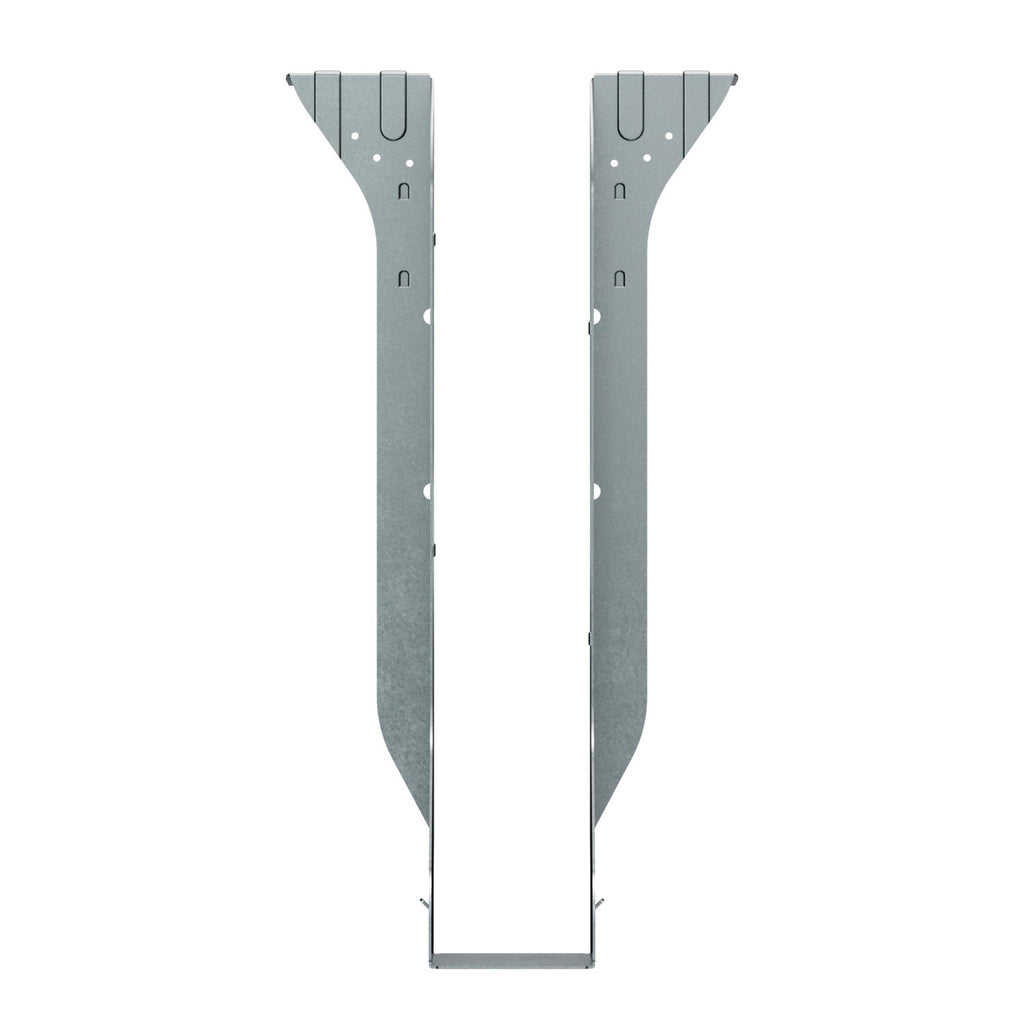

The Simpson HIT420 HIT Galvanized Top-Flange Joist Hanger for 3-1/2 in. x 20 in. Engineered Wood by Simpson is engineered for standard 90 deg. connections of I-joists to headers. This heavy top-flange hanger features positive-angle nailing (PAN), specifically created for I-joists to minimize splitting, and includes extra triangle holes to allow higher uplift loads - delivering a cost-effective, code-friendly alternative to welded hangers.
Key Features
- Time-saving PAN nailing
- Features two face nails to allow for a higher uplift
- Cost-effective solution for standard 90 deg. connections in comparison to welded hangers
- Seat width: 3-9/16 in.
- Actual joist size: 3-1/2 in. x 20 in.
- Made from 16-gauge steel
- Galvanized (G90) for extra corrosion resistance
Specifications
- MPN: HIT420
- Member Size: 3-1/2 in. x 20 in.
- Seat Width: 3-9/16 in.
- Gauge: 16
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Install With: 0.162 in. x 3-1/2 in. nails in the header and 0.148 in. x 1-1/2 in. nails in the joist
- Country of Origin: United States
Frequently Asked Questions
- What type of connection is the HIT420 designed for?
- The HIT420 is designed for standard 90 deg. connections of I-joists to headers, making it a reliable and cost-effective solution for engineered wood framing applications.
- What nails should be used to install the HIT420?
- Install with 0.162 in. x 3-1/2 in. nails in the header and 0.148 in. x 1-1/2 in. nails in the joist.
- What is positive-angle nailing (PAN) and why does it matter for I-joists?
- Positive-angle nailing (PAN) is a nailing method specifically created for I-joists to minimize splitting during installation. The HIT420 is designed with this feature to protect the structural integrity of engineered wood members.
- How does the HIT420 achieve higher uplift loads?
- The HIT420 features extra triangle holes and two face nails, both of which work together to allow for higher uplift loads compared to standard joist hangers.
Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
