Product Features
Product Description

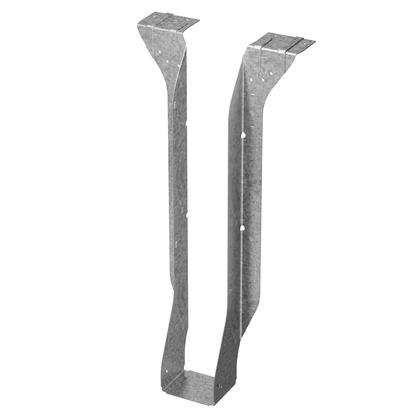

Simpson Strong-Tie HIT418 Heavy I-Joist Top-Flange Hanger (3-1/2 x 18) - is engineered by Simpson Strong-Tie for standard 90-degree connections of I-joists to headers. This heavy-duty top-flange hanger is purpose-built to deliver reliable structural performance while protecting I-joist integrity through its positive-angle nailing (PAN) design.
Key Features
- Designed for standard 90-degree connections of I-joists to headers
- Heavy top-flange hanger construction for demanding load applications
- Positive-angle nailing (PAN) specifically created for I-joists to minimize splitting
- Extra triangle holes allow for higher uplift loads
- 16-gauge steel for robust, heavy-duty strength
- Zinc Galvanized, G90 finish for corrosion resistance
- Made in the United States
Specifications
- Model No.: HIT418
- Joist Size (in.): 3-1/2 x 18
- Gauge: 16
- W (in.): 3-9/16
- H (in.): 18
- B (in.): 3
- Finish: Zinc Galvanized, G90
- Country of Origin: United States
Frequently Asked Questions
- What type of connection is the HIT418 designed for?
- The HIT418 is designed for standard 90-degree connections of I-joists to headers, making it a reliable choice for typical framing applications where I-joists meet a header at a right angle.
- What is positive-angle nailing (PAN) and why does it matter for I-joists?
- Positive-angle nailing (PAN) is a nailing configuration specifically engineered for I-joists. It directs fasteners at an angle that minimizes the risk of splitting the I-joist material, helping maintain the structural integrity of the joist during and after installation.
- What is the purpose of the extra triangle holes on the HIT418?
- The extra triangle holes are designed to allow for higher uplift loads. This feature gives the hanger greater capacity to resist upward forces, making it suitable for applications where elevated uplift performance is required.
- What gauge steel and finish does the HIT418 use?
- The HIT418 is manufactured from 16-gauge steel with a Zinc Galvanized, G90 finish, providing a sturdy and corrosion-resistant hanger suited for structural applications.
Note: Product dimensions and/or nail holes may differ from picture. Please see item description for specifications.
