Product Description

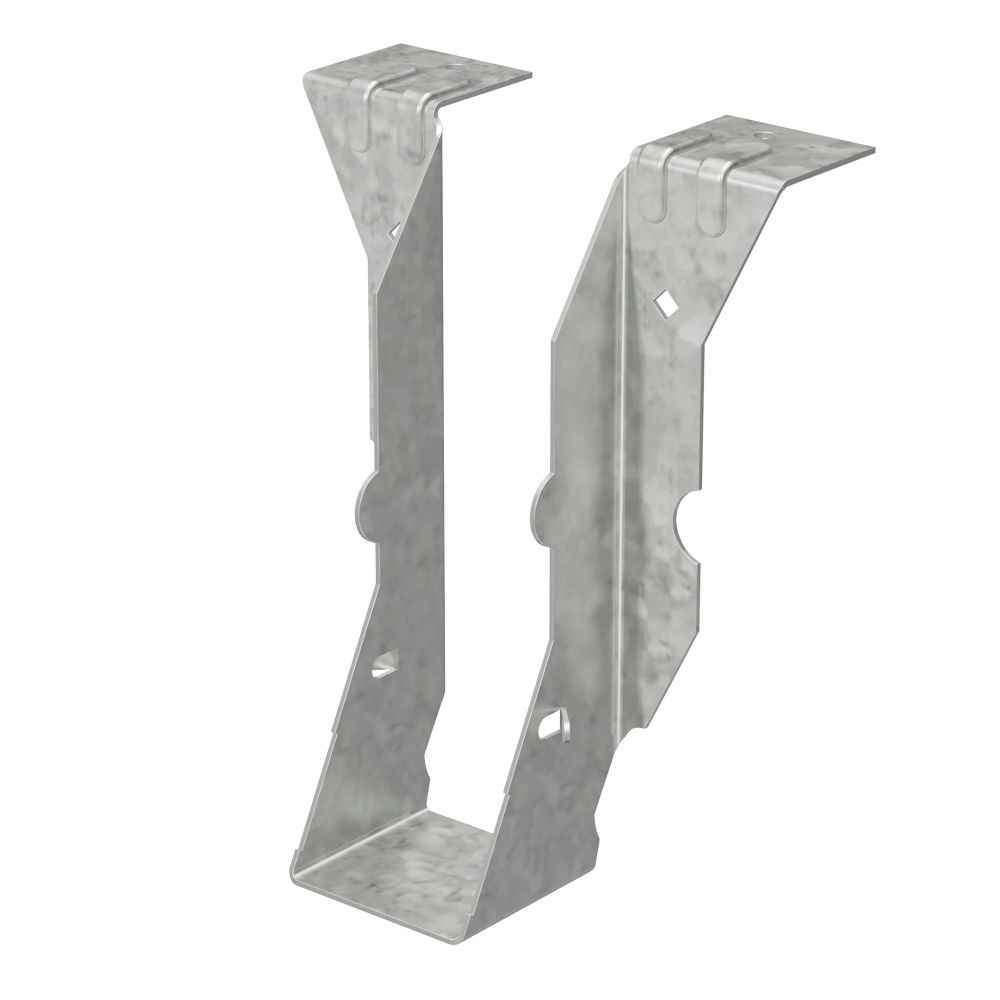

The Simpson Strong-Tie PF26Z PF 18-Gauge ZMAX Galvanized Post Frame Hanger for 2x6 is a top-flange hanger engineered by Simpson Strong-Tie for common light-frame applications. Featuring a patented double-shear nailing design, this economical hanger distributes the load through two points on each joist, delivering greater strength with fewer nails. The ZMAX galvanized coating provides enhanced corrosion resistance, making it well suited for exterior and treated-wood applications.
Key Features
- Self-jigging design for automatic vertical alignment provides quick installation
- Diamond holes to temporarily fasten the connector for easy alignment and attachment
- Patented double-shear nailing design distributes load through two points on each joist for greater strength with fewer nails
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
- Top-flange design for use with 2x6 members
- Made from 18-gauge steel
- Cannot be modified
- Made in the United States
Specifications
- Model Number: PF26Z
- Brand: Simpson Strong-Tie
- Nominal Joist Size: 2x6
- Gauge: 18
- Seat Width: 1-9/16 in.
- Coating/Finish: ZMAX
- Install With: (4) 0.148-in. x 3-in. nails (sold separately)
- Height: 5-3/8 in.
- Seat Depth: 1-1/2 in.
- Top Flange: 1-1/16 in.
- Country of Origin: United States
Frequently Asked Questions
- What size joist is the PF26Z designed to support?
- The PF26Z is designed for use with nominal 2x6 members, with a seat width of 1-9/16 inches to accommodate that member size.
- What fasteners are required to install the PF26Z?
- Installation requires (4) 0.148-in. x 3-in. nails. These purlin nails must be driven at an angle through the purlin into the header, and can be combined with top nails to achieve table loads.
- Why does the PF26Z use ZMAX galvanization instead of standard galvanization?
- ZMAX galvanization provides extra corrosion resistance compared to standard coatings, making the PF26Z suitable for exterior environments and applications involving treated wood where greater protection against corrosion is required.
- Can the PF26Z be field-modified to fit a different application?
- No. The PF26Z cannot be modified. It is engineered specifically for 2x6 members and must be used as manufactured to maintain its structural integrity and load performance.
Note: Product dimensions may differ from picture. Please see item description for specifications.
