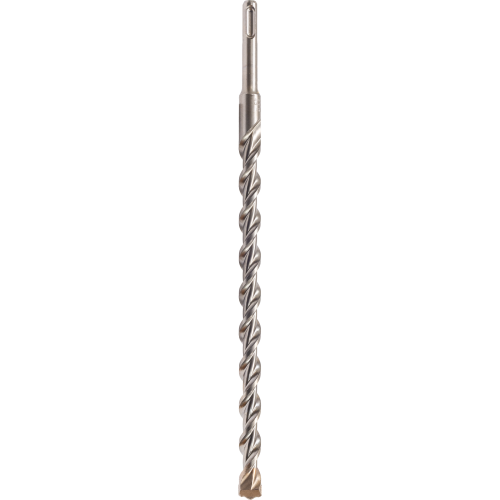

Simpson SDS-Plus Drill Bit 7/8 in. x 12-1/4 in. 2-Cutter Head Carbide-Tipped is a premium-quality, professional-grade rotary hammer bit from Simpson, purpose-built for demanding concrete and masonry drilling applications. Engineered to the highest industry standards and manufactured to meet precise tolerance requirements, this carbide-tipped bit pairs a 2-Cutter Head design with an SDS-plus shank to deliver consistent drilling speed, extended service life, and reliable performance job after job.

Key Features

• Uniformly brazed carbide inserts - provide consistent contact with the work surface, resulting in longer bit life and more holes drilled before replacement is needed
• Centering tip design - facilitates easy spot drilling so the bit stays on target from the first strike, reducing slippage and improving accuracy
• Chromium-nickel-molybdenum steel alloy body - delivers the toughness needed for hammering applications while supporting an extended service life under heavy use
• Heat-treatment procedures and shot-peened finish - increase surface hardness and drilling speed, reduce drill bit wear, and improve resistance to bending forces for reliable performance under load
• Chisel-shaped drill-bit head - penetrates the material efficiently and directs concrete dust into the multi-flute spiral, keeping the cutting zone clear
• High-volume, multi-flute spiral - quickly channels concrete dust from the hole to improve drilling speed and reduce clogging during deep drilling
• ANSI Standard B212.15 compliance - confirms the bit meets rigorous industry requirements, giving professionals confidence in its quality and dimensional consistency
• SDS-plus shank - allows quick, tool-free bit changes and full compatibility with SDS-plus rotary hammer drills, reducing downtime on the job

Why This Product

• Professional-grade construction built to last - the combination of uniformly brazed carbide inserts, a chromium-nickel-molybdenum alloy body, and a heat-treated, shot-peened finish means this bit is engineered to outlast standard drill bits in tough concrete and masonry conditions
• Faster drilling with less effort - the chisel-shaped 2-Cutter Head and high-volume multi-flute spiral work together to break material efficiently and evacuate dust continuously, keeping drilling speed high without forcing the operator to stop and clear debris
• Precision from start to finish - the centering tip helps lock the bit onto the target spot before drilling begins, and ANSI B212.15 compliance ensures diameter tolerances are held to industry-standard accuracy throughout the full 10 in. drilling depth
• Seamless compatibility with SDS-plus hammer drills - the SDS-plus shank fits a wide range of professional rotary hammer drills and enables tool-free bit swaps, making this a practical, ready-to-use choice for crews who need reliable performance without setup delays

Specifications

• MPN: MDPL08712
• Brand: Simpson Strong-Tie
• Shank Type: SDS-plus Shank
• Head Type: 2-Cutter Head
• Diameter: 7/8 in.
• Drilling Depth: 10 in.
• Overall Length: 12-1/4 in.
• Material: Hardened Steel
• Tip Material: Carbide
• Compliance: ANSI Standard B212.15
• Country of Origin: Germany

Frequently Asked Questions

What type of shank does the Simpson MDPL08712 drill bit use?

The Simpson MDPL08712 features an SDS-plus shank, which allows for quick, tool-free bit changes and is compatible with SDS-plus rotary hammer drills.

What is the drilling depth and overall length of this drill bit?

This drill bit has a maximum drilling depth of 10 in. and an overall length of 12-1/4 in., with a diameter of 7/8 in.

What material is the body of this drill bit made from?

The body is constructed from a chromium-nickel-molybdenum steel alloy, which is heat-treated and shot-peened to increase surface hardness, improve drilling speed, reduce wear, and enhance resistance to bending forces.

Does this drill bit meet any industry standards?

Yes, this drill bit conforms to ANSI Standard B212.15, ensuring it meets rigorous industry requirements for quality and performance in professional drilling applications.

Note: Product dimensions may differ from picture. Please see the item description above for specifications.
