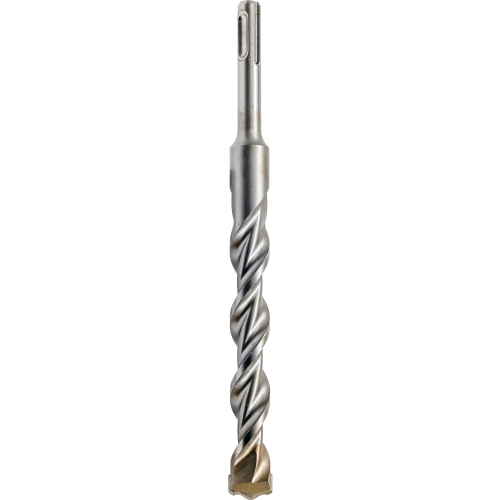

Simpson SDS-Plus Drill Bit 3/4 in. x 8 in. 2-Cutter Head Carbide-Tipped is a professional-grade rotary hammer bit from Simpson, engineered for demanding concrete, masonry, and demolition applications where precision hole placement and long service life are non-negotiable. Built on a chromium-nickel-molybdenum steel alloy body with uniformly brazed carbide inserts, this SDS-plus bit delivers fast, accurate drilling in tough base materials while standing up to the repetitive impact forces of rotary hammer use on the jobsite.

Key Features

• Uniformly brazed carbide inserts - consistent tip integrity across the full cutting edge means the bit stays sharp longer, reducing replacement frequency on high-volume drilling jobs
• Centering tip design - facilitates easy spot drilling so you can start holes accurately without walking, saving time on layout-critical anchor installations
• Chromium-nickel-molybdenum steel alloy body - engineered specifically for hammering quality and extended service life, so the shank and flute body resist cracking and fatigue under sustained impact
• Heat-treatment procedures and shot-peened finish - increase surface hardness, drilling speed, reduce drill bit wear, and improve resistance to bending forces, keeping the bit performing true even under lateral stress
• ANSI Standard B212.15 compliance - confirms the bit meets established dimensional and performance tolerances, ensuring reliable compatibility with standard SDS-plus rotary hammers and consistent hole sizing for anchor specifications
• Chisel-shaped 2-cutter drill-bit head - penetrates material aggressively and directs concrete dust into the multi-flute spiral, reducing clogging and maintaining cutting efficiency through the full drilling depth
• High-volume, multi-flute spiral - quickly channels concrete dust from the hole during drilling, improving drilling speed and reducing the need to withdraw the bit to clear debris

Why This Product

• Precision-manufactured to tight tolerances - the bit is produced to meet precise tolerance requirements, which means cleaner holes, better anchor seating, and fewer do-overs on critical fastening applications in concrete and masonry
• Purpose-built for professional rotary hammer use - the SDS-plus shank provides a secure, tool-free interface with SDS-plus rotohammers, and the chromium-nickel-molybdenum alloy body is specifically formulated to handle the hammering forces these tools generate without premature fatigue
• Engineered for faster drilling with less wear - the combination of a shot-peened finish, heat-treated body, and high-volume multi-flute spiral work together to increase drilling speed and reduce bit wear simultaneously, lowering cost-per-hole over the life of the tool
• Backed by Simpson Strong-Tie engineering standards - produced in Germany to the highest industry standards for Simpson, this carbide-tipped bit is part of a complete professional drilling system designed to support structural fastening and anchor installation workflows

Specifications

• Model Number (MPN): MDPL07508
• Brand: Simpson Strong-Tie
• Shank Type: SDS-plus Shank
• Head Type: 2-Cutter Head
• Diameter: 3/4 in.
• Drilling Depth: 6 in.
• Overall Length: 8 in.
• Material: Hardened Steel (Chromium-Nickel-Molybdenum Steel Alloy Body with Carbide Tip)
• Standard Compliance: ANSI Standard B212.15
• Country of Origin: Germany

Frequently Asked Questions

What type of shank does the MDPL07508 use, and which tools is it compatible with?

The MDPL07508 features an SDS-plus shank, which is the industry-standard interface designed to fit SDS-plus rotary hammers and rotohammers. This shank type provides a secure, tool-free bit change and allows the hammer mechanism to drive the bit efficiently during concrete drilling.

What are the key dimensions of this drill bit?

This drill bit has a diameter of 3/4 in., an overall length of 8 in., and a maximum drilling depth of 6 in., making it well-suited for medium-depth anchor hole drilling in concrete and masonry applications.

What construction features contribute to the durability and long life of this bit?

The bit's longevity comes from several engineered features: uniformly brazed carbide inserts for consistent tip integrity, a chromium-nickel-molybdenum steel alloy body for hammering strength, and heat-treatment procedures combined with a shot-peened finish that increase surface hardness and resistance to bending forces while reducing wear over time.

How does this bit handle concrete dust during drilling?

The chisel-shaped drill-bit head is designed to penetrate material efficiently while directing concrete dust into the high-volume, multi-flute spiral. This spiral then quickly channels the dust out of the hole, helping maintain drilling speed and preventing clogging during use.

Note: Product dimensions may differ from picture. Please see the item description above for specifications.
