Product Description

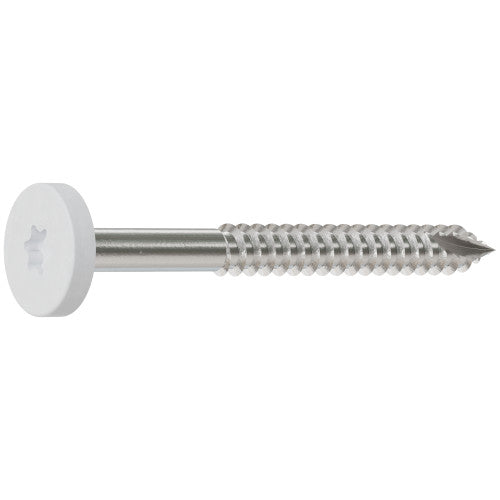

Simpson T08175FS75WH01 Fascia Board Screw - #8 x 1-3/4 in. T-20 6-Lobe Pancake Head Type 316, White 01 is engineered by Simpson Strong-Tie specifically for securing PVC and composite fascia boards, including approved attachment of Trex Fascia Boards. Constructed from Type 316 stainless steel for severe-level corrosion resistance, this screw features a low-profile pancake head and a deep T-20 6-lobe recess that work together to deliver a clean, professional installation that resists pullover and cam-outs.
Key Features
- Approved for attachment of Trex Fascia Boards
- Deep T-20 6-lobe recess for reduced cam-outs (bit part number: BIT20T-2-RC3)
- Type-17 tip for fast starts
- Low-profile pancake head resists pullover
- Type 316 stainless steel provides severe-level corrosion resistance
- Head color: White 01
Specifications
- Model No.: T08175FS75WH01
- Screw Size: #8
- Length: 1-3/4 in.
- Head Type: Pancake Head
- Head Diameter: 0.400 in.
- Drive Type: T-20 6-Lobe
- Thread Type: Coarse Threads
- Point Type: Type-17 Point
- Material: Type 316 Stainless Steel
- Finish: Type 316 Stainless Steel
- Head Color: White 01
- Country of Origin: Taiwan
Approved Applications
- PVC and composite fascia board installations
- Attachment of Trex Fascia Boards
What's Included
Each pack contains (75) White Composite Fascia Screws, T-20 6-lobe driver bit, part number BIT20T-2-RC3.
Frequently Asked Questions
- What type of drive does this fascia screw use?
- This screw features a deep T-20 6-lobe recess, which is specifically designed to reduce cam-outs during installation. The compatible bit part number is BIT20T-2-RC3, and a T-20 6-lobe driver bit is included with the screws.
- Is this screw approved for use with Trex Fascia Boards?
- Yes. This screw is approved for the attachment of Trex Fascia Boards, making it a reliable choice for composite fascia board installations.
- Why is Type 316 stainless steel used for these fascia screws?
- Type 316 stainless steel provides severe-level corrosion resistance, making these screws well-suited for exterior applications where exposure to moisture and the elements is a concern.
- Do I need any additional tools or accessories to install these screws?
- For best results, install with the Simpson Strong-Tie Fascia Counterbore Bit (sold separately). The T-20 6-lobe driver bit (part number BIT20T-2-RC3) is included with the screws.
