Product Description

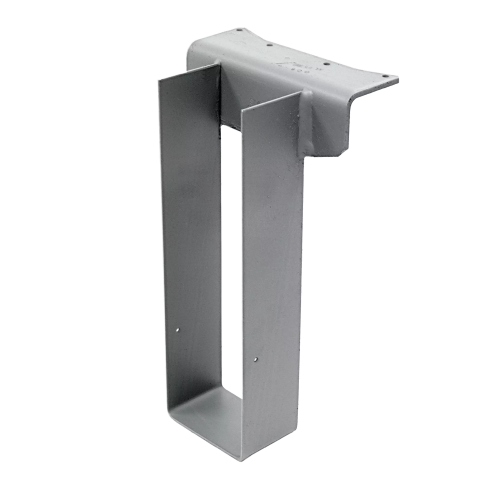

The 1 1/2 x 11 7/8 Welded Top-Flange Joist Hanger from Simpson is built to support joists on purlins or beams across a broad range of structural framing conditions. Engineered for wood-to-wood, wood-to-steel, and cold-formed steel connections, this top-flange hanger handles skewed and sloped installations with equal confidence, giving contractors and engineers a single, dependable connector for complex framing layouts.
Key Features
- Accepts skew up to 84 deg. - tackles sharp angle framing conditions without requiring custom fabrication on the job site, keeping projects on schedule.
- Accepts slope up to 45 deg. - handles steep roof and floor framing pitches in a single connector, eliminating the need for specialized alternatives on sloped applications.
- Multi-application compatibility - approved for wood-to-wood, wood-to-steel, and cold-formed steel framing, so one hanger model covers a wide variety of structural scenarios.
- 12 ga. stirrup material - provides a robust, high-gauge steel body sized for 1 1/2 in. x 11 7/8 in. joists, delivering the load-carrying capacity demanding structural applications require.
- Simpson Strong-Tie Gray Paint finish - offers a consistent, corrosion-resistant coating suited to protected interior framing environments, with hot-dip galvanized options available for projects requiring enhanced corrosion resistance.
- Welded top-flange design - transfers load directly through the top flange, allowing the hanger to seat flush against the carrying member and supporting a clean, structurally sound connection.
Why This Product
- Unmatched angular range in one connector - the ability to skew up to 84 deg. and slope up to 45 deg. simultaneously means this hanger adapts to the most demanding framing geometries without requiring multiple product solutions.
- Verified cross-material versatility - with approved applications spanning wood-to-wood, wood-to-steel, and cold-formed steel connections, this hanger reduces the number of SKUs a framing crew needs to stock for mixed-material projects.
- Purpose-built for joist-on-purlin and joist-on-beam conditions - the welded top-flange construction is specifically engineered for these connection types, ensuring the right load path and a secure, code-consistent installation.
- Backed by Simpson engineering - produced domestically under the quality standards Simpson is known for, this hanger carries the design integrity that structural engineers and general contractors rely on for load-bearing applications.
Specifications
- Model Number: WP211.88
- Brand: Simpson Strong-Tie
- Joist Size: 1-1/2 in. x 11-7/8 in.
- Description: 1-1/2 x 11-7/8 Welded Top-Flange Joist Hanger
- Material - Stirrup: 97 mil (12 ga.)
- Finish: Simpson Strong-Tie Gray Paint; some models available hot-dip galvanized as a custom order
- Maximum Skew: Up to 84 deg.
- Maximum Slope: Up to 45 deg.
- Country of Origin: United States
Approved Applications

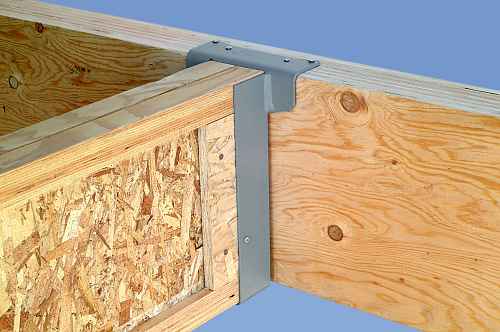

- Supporting joists on purlins or beams
- Wood-to-wood framing connections
- Wood-to-steel framing connections
- Cold-formed steel framing applications
- Skewed and/or sloped joist installations
Options
- Contact us for Configurable Options and Special orders
- Refer to the Special-Order Worksheet for ease of ordering a Custom WP Hanger
Note: Product dimensions may differ from picture. Please see the item description above for specifications.
Frequently Asked Questions
What joist size does the WP211.88 accommodate?
The WP211.88 is sized for joists measuring 1-1/2 inches wide by 11-7/8 inches in height.
What material and gauge is the WP211.88 stirrup made from?
The stirrup is fabricated from 97 mil (12 ga.) steel, providing robust structural support for demanding load applications.
What finish options are available for the WP211.88?
The standard finish is Simpson Strong-Tie Gray Paint. Some models are available hot-dip galvanized as a custom order for enhanced corrosion resistance.
How much can the WP211.88 be skewed or sloped during installation?
The WP211.88 can be skewed up to 84 deg. and/or sloped to a maximum of 45 deg., offering considerable flexibility for angled or non-standard framing configurations.
