Product Description

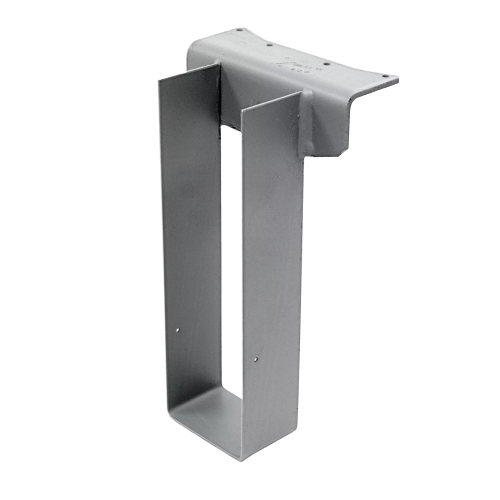

The Simpson 1-3/4 x 16 Welded Top-Flange Joist Hanger is a heavy-duty connector engineered to support joists on purlins or beams across a wide range of residential and commercial framing applications. Built by Simpson, this top-flange hanger handles wood-to-wood, wood-to-steel, and cold-formed steel connections, giving structural framers a single reliable solution for varied job site conditions. The welded construction and generous skew and slope allowances make this hanger a practical choice wherever precise load transfer and framing flexibility are both required.
Key Features
- Skew capacity up to 84 deg. - accommodates sharply angled framing layouts without requiring custom cutting or additional hardware, saving time on complex structural assemblies
- Slope capacity up to 45 deg. - supports pitched roof and floor framing conditions, reducing the need for field modifications on sloped applications
- Multi-substrate compatibility - approved for wood-to-wood, wood-to-steel, and cold-formed steel framing applications, so one hanger model covers a broad spectrum of structural connections on the same project

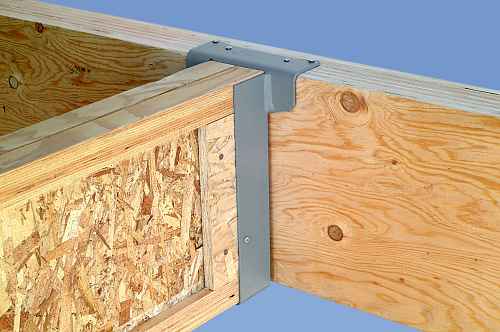

- Welded top-flange design - transfers loads efficiently through the top of the supporting member, providing secure joist-to-purlin or joist-to-beam connections in both residential and commercial framing
- 12 ga. stirrup material - delivers the structural rigidity needed for dependable performance in demanding load conditions
- Simpson Strong-Tie Gray Paint finish - provides corrosion resistance suitable for typical interior and protected structural applications
Why This Product
- Unmatched framing flexibility - with skew allowances up to 84 deg. and slope allowances up to 45 deg., this hanger handles the angled and pitched conditions that standard hangers cannot, reducing callbacks and rework
- Broad connection compatibility - approved for wood-to-wood, wood-to-steel, and cold-formed steel structural connections, this single hanger model reduces the need to stock multiple connector types for mixed-material projects
- Trusted Simpson engineering - manufactured to the quality standards that structural contractors and engineers rely on for residential and commercial framing, with clearly defined approved applications backed by the Simpson name
- Domestically produced quality - built in the United States, supporting consistent manufacturing standards and reliable availability for time-sensitive structural projects
Specifications
- Model Number: WP16
- Brand: Simpson Strong-Tie
- Joist Size: 1-3/4 in. x 16 in.
- Description: 1-3/4 x 16 Welded Top-Flange Joist Hanger
- Material - Stirrup: 97 mil (12 ga.)
- Finish: Simpson Strong-Tie Gray Paint; select models available hot-dip galvanized as a custom order
- Country of Origin: United States
Approved Applications
- Supporting joists on purlins or beams in residential and commercial framing
- Wood-to-wood structural connections
- Wood-to-steel structural connections
- Cold-formed steel framing applications
- Skewed framing conditions up to 84 deg.
- Sloped framing conditions up to 45 deg.
Options
- Contact us for Configurable Options and Special orders
- Refer to the Special-Order Worksheet for ease of ordering a Custom WP Hanger
Note: Product dimensions may differ from picture. Please see the item description above for specifications.
Frequently Asked Questions
What joist dimensions does the WP16 accommodate?
The WP16 is sized for a 1-3/4 inch wide by 16 inch deep joist member.
What material gauge is the WP16 stirrup?
The stirrup is constructed from 97 mil (12 gauge) steel for structural strength and rigidity.
What finish does the WP16 come in?
The WP16 is finished in Simpson Strong-Tie Gray Paint as a standard option. Select models are available hot-dip galvanized as a custom order.
Can the WP16 be used with steel framing?
Yes. The WP16 is designed for wood-to-wood, wood-to-steel, and cold-formed steel applications, providing broad compatibility across framing systems.
