Product Description

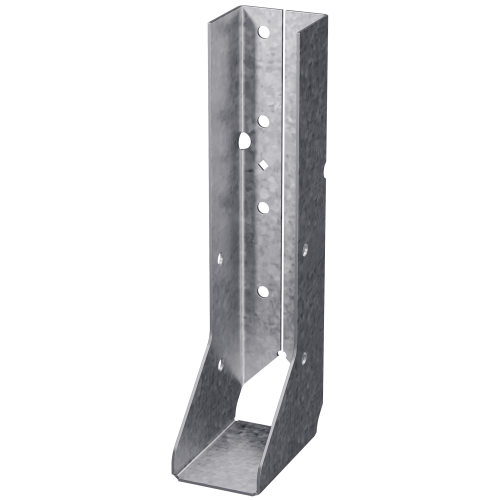

The Simpson HUCQ5.25/11ZSDSG is a heavy-duty, face-mount concealed-flange joist hanger engineered by Simpson for structures requiring additional strength and safety factors. Built specifically for 5-1/8 in. x 12 in. glulam members, this hanger features concealed header flanges that keep connections clean and unobtrusive in exposed conditions, and its design allows installation close to the end of the supporting beam. A ZMAX galvanized coating delivers extra corrosion resistance for exterior environments and treated-wood construction, while included Strong-Drive SDS Heavy-Duty Connector screws make installation fast and efficient with no predrilling required.
Key Features
- Concealed header flanges - keep the connection out of sight for a finished, professional appearance in exposed structural applications
- ZMAX galvanized coating - provides extra corrosion resistance, making this hanger well-suited for exterior use and contact with treated wood
- 14-gauge steel construction - delivers the structural integrity needed for heavy-duty glulam beam connections where higher load capacity is required
- Strong-Drive SDS Heavy-Duty Connector screws included - no predrilling needed, so installation is faster and easier without sacrificing connection strength
- Tested, load rated, and code compliant - gives builders and inspectors confidence that the connection meets recognized structural standards
- Compatible with wood, masonry, and concrete headers - provides flexibility across a wide range of structural configurations and project types
Why This Product
- Built for demanding structural applications - the HUCQ series is specifically designed for projects requiring additional strength and safety factors, making it a reliable choice for heavy glulam framing where standard hangers fall short
- Clean aesthetics without sacrificing performance - concealed flanges allow this heavy-duty connector to blend into exposed framing, so structural integrity and visual finish are never a trade-off
- Ready to install out of the box - twenty Strong-Drive SDS screws are included and no predrilling is required, reducing labor time and eliminating the need to source separate fasteners for the job
- Corrosion resistance built in - ZMAX galvanization makes this hanger a durable long-term choice for exterior structures and applications involving treated lumber, where standard coatings may not hold up
Specifications
- Model Number: HUCQ5.25/11ZSDSG
- Member Size: 5-1/8 in. x 12 in. glulam
- Seat Width: 5-1/4 in.
- Material Gauge: 14-gauge steel
- Finish / Coating: ZMAX
- Country of Origin: United States
Approved Applications
- Connecting wood joists to wood, masonry, and concrete supporting members
- Glulam beam-to-beam connections requiring high load capacity
- Structures requiring additional strength and safety factors
- Exterior applications and treated-wood construction where corrosion resistance is critical
- Exposed conditions where concealed flanges provide a cleaner, finished appearance
What's Included
- (20) 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws
Installation Notes
- Install with (14) 1/4 in. x 2-1/2 in. SDS screws in the header and (6) 1/4 in. x 2-1/2 in. SDS screws in the joist (screws included)
- No predrilling required for ease of installation
Note: Product dimensions and/or screw holes may differ from picture. Please see item description for specifications.
Options
- Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What size joist is this hanger designed for?
- This hanger is specifically designed for 5-1/8 in. x 12 in. glulam members, with a seat width of 5-1/4 in. It is intended for heavy-duty applications requiring high load capacity.
- What fasteners are required for installation, and are they included?
- Installation requires 14 screws (1/4 in. x 2-1/2 in. SDS) in the header and 6 screws (1/4 in. x 2-1/2 in. SDS) in the joist, for a total of 20 fasteners. All 20 Simpson Strong-Drive SDS Heavy-Duty Connector screws are included with the hanger, and no predrilling is required.
- Is this hanger suitable for exterior or treated-wood applications?
- Yes. The hanger features a ZMAX galvanized coating, which provides extra corrosion resistance making it appropriate for exterior and treated-wood applications.
- What supporting member materials can this hanger connect to?
- This hanger is designed to connect wood joists to wood, masonry, and concrete supporting members. The concealed header flanges also allow it to be installed close to the end of the supporting beam, offering flexibility in placement.
