Product Description
The Simpson 15 deg. Wire Coil Ring-Shank Nail 2-1/4 in. x.092 in. 304 SS Dark Brown Painted from Simpson Strong-Tie is a collated fastener engineered for fast driving and superior holding power in wood siding, asphalt roofing, and synthetic slate roofing applications. Built from Type 304 stainless steel for high-level corrosion resistance, this 7d nail features an annular ring shank, a dark brown painted full round head, and a slender 13-gauge profile - all working together to deliver a clean, durable, and efficient installation. Compatible with many major manufacturers' pneumatic coil nailers, it is a reliable choice for contractors and installers who demand both speed and long-term performance from their fasteners.
Key Features
- Type 304 stainless steel construction - provides high-level corrosion resistance, keeping fasteners structurally sound in exterior and weather-exposed applications over the long term
- Annular ring shank - increases withdrawal resistance to provide a secure attachment that reduces cupping of siding boards, meaning installed material stays flat and tight

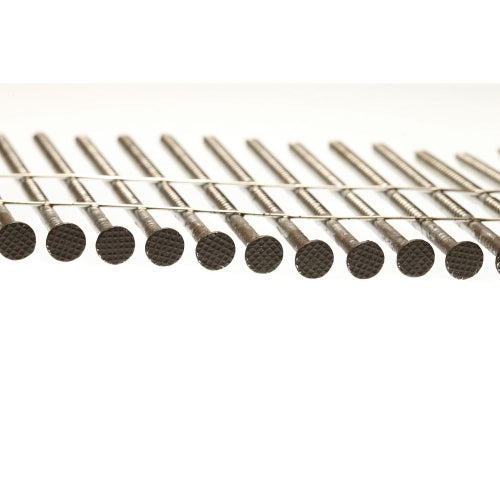

- Dark brown painted full round head - the durable painted finish helps heads blend with siding material for a cleaner, less visible result on finished surfaces
- Checkered head pattern - blends with wood grain, reduces glare from sunlight, and accepts surface finishes so the nail head does not stand out after installation
- Slender 13-gauge profile with diamond point - allows easier driving with less resistance, reducing fatigue and improving installation speed on large jobs
- 15 deg. wire-coil collation - compatible with many major manufacturers' pneumatic coil nailers, making it a versatile choice across a wide range of job site tool setups
- 3,600 nails per package - bulk packaging supports continuous workflow on large-scale siding and roofing projects without frequent reloading interruptions
Why This Product
- Corrosion resistance built for the long haul - Type 304 stainless steel is not a surface coating that wears away; it is the material itself, making these ring-shank nails a sound long-term investment for exterior wood siding and roofing applications exposed to moisture and the elements
- Holding power that fights siding movement - the annular ring shank mechanically resists withdrawal forces that cause siding boards to warp or cup over time, giving installers confidence that the finished surface will stay secure and flat
- A finish that disappears into the work - the dark brown painted checkered head is designed specifically to blend with siding material and wood grain, so the fastener becomes part of the finished appearance rather than a distraction from it
- Efficiency from start to finish - the combination of wire-coil collation, pneumatic tool compatibility, diamond point, and slender gauge means faster driving, less stopping, and more consistent results across asphalt roofing, synthetic slate roofing, and wood siding installations
Specifications
- Model Number (MPN): S13A225CCB
- Brand: Simpson Strong-Tie
- Penny Size: 7d
- Length: 2-1/4 in.
- Shank Diameter: 0.092 in.
- Head Diameter: 0.221 in.
- Gauge: 13
- Head Type: Full Round Head
- Head Pattern: Checkered
- Shank Type: Annular-Ring Shank
- Point Type: Diamond Point
- Collation Type: Wire Coil
- Collation Angle: 15 deg.
- Material: Type 304 Stainless Steel
- Finish / Coating: Type 304 Stainless Steel
- Nail Color: Dark Brown
- Package Quantity: 3,600
- Country of Origin: United States
Approved Applications
- Fastening Wood Siding
- Asphalt Roofing Applications
- Synthetic Slate Roofing Applications
What's Included
- 3,600 x Simpson S13A225CCB 15 deg. Wire-Coil, Painted Full Round Head, Ring-Shank Nails - 2-
Frequently Asked Questions
- What pneumatic tools are compatible with these wire coil nails?
- The Simpson S13A225CCB is a 15 deg. wire-coil collated nail, which is compatible with many major manufacturers' pneumatic coil nailers designed for this collation angle. Always verify your specific tool's compatibility with 15 deg. wire-coil format before use.
- What material are these nails made from, and why does it matter?
- These nails are made from Type 304 stainless steel, which provides high-level corrosion resistance. This makes them well suited for applications where long-term durability and resistance to rust are important, such as fastening wood siding or roofing materials exposed to the elements.
- What is the purpose of the annular ring shank on these nails?
- The annular ring shank increases withdrawal resistance, providing a more secure attachment compared to smooth-shank nails. This is particularly beneficial when fastening wood siding, as it helps reduce cupping of the boards over time.
- What are the key dimensions and specifications of the S13A225CCB nail?
- These nails measure 2-1/4 in. in length with a shank diameter of 0.092 in. and a head diameter of 0.221 in. They feature a full round head, a diamond point for easier driving, and are 13-gauge. Each package contains 3,600 nails.
