Key Features

• Uniformly brazed carbide inserts result in longer bit life
• Most bits contain a centering tip that facilitates easy spot drilling
• Chromium-nickel-molybdenum steel alloy body ensures hammering quality and extended service life
• Heat-treatment procedures and shot-peened finish increase surface hardness, drilling speed, reduces drill bit wear and improves resistance to bending forces
• Drill bits conform to ANSI Standard B212.15
• Chisel-shaped drill-bit head penetrates the material and directs concrete dust into the multi-flute spiral
• High-volume, multi-flute spiral quickly channels concrete dust from the hole to improve drilling speed
• 2-Cutter Head design for efficient penetration and debris removal
• SDS-plus shank provides secure chuck engagement and optimal energy transfer in rotary hammer drilling

Specifications

• MPN: MDPL05606
• Brand: Simpson Strong-Tie
• Shank Type: SDS-plus Shank
• Head Type: 2-Cutter Head
• Diameter: 9/16 in.
• Drilling Depth: 4 in.
• Overall Length: 6-1/4 in.
• Material: Hardened Steel with Carbide Tip
• Country of Origin: DE
• Compliance: ANSI Standard B212.15

Frequently Asked Questions

What type of shank does the MDPL05606 drill bit use?

The MDPL05606 features an SDS-plus shank, which is compatible with SDS-plus rotary hammers and provides a secure, tool-free bit engagement for efficient energy transfer during hammering and drilling.

What is the maximum drilling depth this bit can achieve?

The MDPL05606 has a drilling depth of 4 in., with an overall length of 6-1/4 in. and a diameter of 9/16 in.

What makes the carbide tip on this drill bit durable?

The carbide inserts are uniformly brazed to the bit, which ensures consistent bonding and longer bit life. The chromium-nickel-molybdenum steel alloy body, combined with heat-treatment procedures and a shot-peened finish, further increases surface hardness and resistance to bending forces.

How does this drill bit manage concrete dust during drilling?

The chisel-shaped drill-bit head penetrates the material and directs concrete dust into the high-volume, multi-flute spiral, which quickly channels that dust out of the hole. This design improves drilling speed and keeps the hole clean during operation.

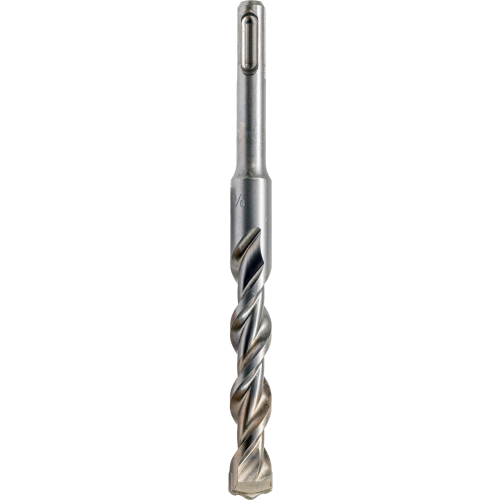

Note: Product dimensions may differ from picture. Please see the item description above for specifications.
