Key Features

• Uniformly brazed carbide inserts result in longer bit life and consistent performance throughout the life of the tool.
• Centering tip facilitates easy spot drilling, improving accuracy and reducing bit walk at the start of a hole.
• Chromium-nickel-molybdenum steel alloy body ensures superior hammering quality and extended service life under heavy-duty use.
• Heat-treatment procedures and shot-peened finish increase surface hardness and drilling speed, reduce drill bit wear, and improve resistance to bending forces.
• Chisel-shaped drill-bit head penetrates the material efficiently and directs concrete dust into the multi-flute spiral for clean, fast drilling.
• High-volume, multi-flute spiral quickly channels concrete dust from the hole to improve drilling speed and reduce clogging.
• ANSI Standard B212.15 compliant - drill bits conform to industry-recognized dimensional and performance standards.
• SDS-plus shank provides secure, tool-free bit changes and compatibility with SDS-plus rotary hammers.

Specifications

• Model Number (MPN): MDPL06224
• Diameter: 5/8 in.
• Overall Length: 24 in.
• Drilling Depth: 22 in.
• Shank Type: SDS-plus Shank
• Head Type: 2-Cutter Head
• Material: Hardened Steel (Chromium-Nickel-Molybdenum Steel Alloy)
• Tip Material: Carbide
• Industry Standard: ANSI Standard B212.15
• Country of Origin: Germany

Approved Applications

• Drilling into concrete with SDS-plus rotary hammer tools
• Masonry and concrete demolition drilling applications requiring extended drilling depth up to 22 in.
• Professional-grade and contractor applications demanding high durability and drilling speed
• Applications requiring precise hole tolerances in accordance with ANSI Standard B212.15

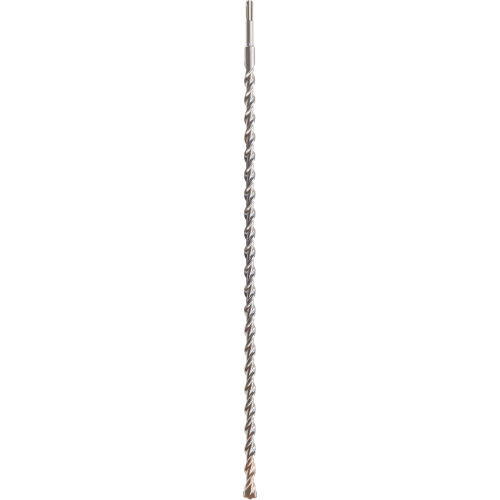

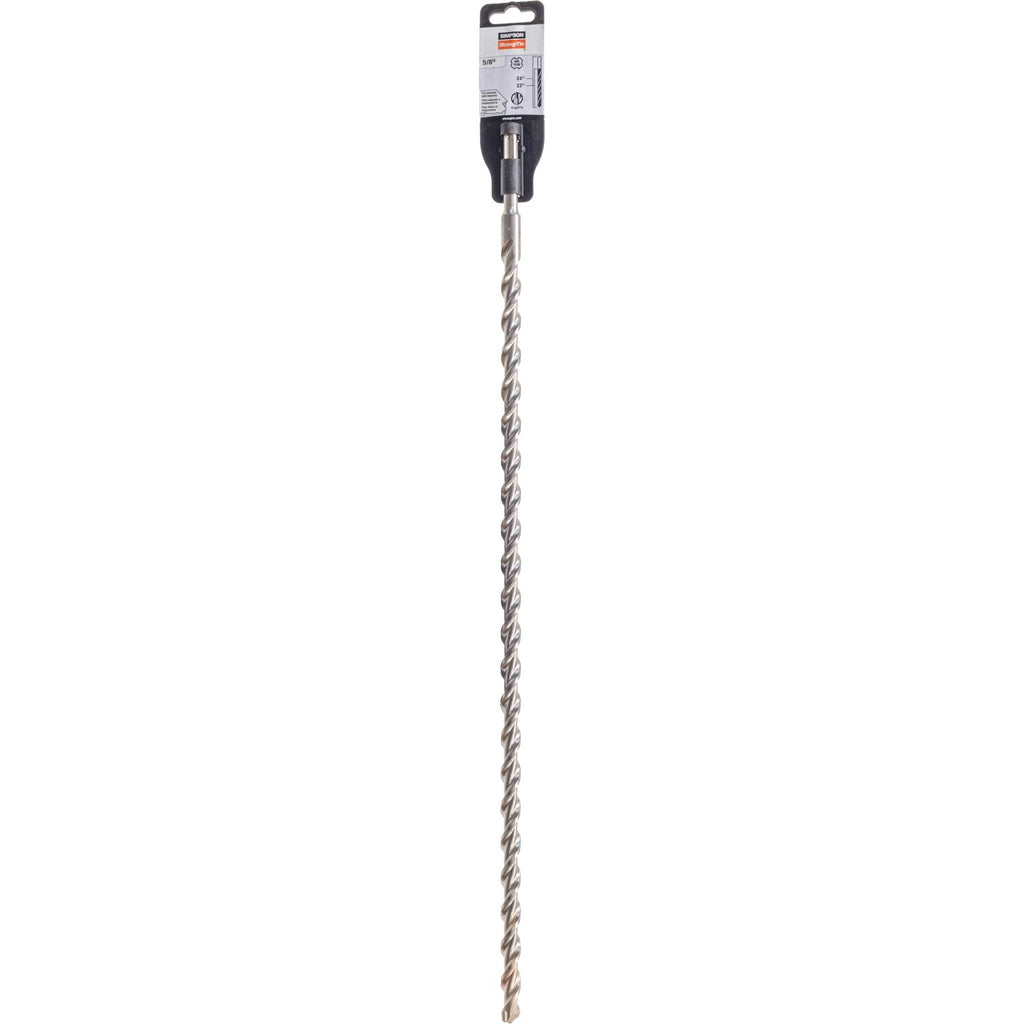

Note: Product dimensions may differ from picture. Please refer to the specifications listed above for accurate dimensions

Frequently Asked Questions

What type of drill is required to use this bit?

This bit is designed for use with SDS-plus rotary hammer drills. The SDS-plus shank provides a secure, tool-free bit change and ensures proper compatibility with any SDS-plus rotary hammer tool.

What is the maximum drilling depth this bit can achieve?

This bit has a drilling depth of 22 in. and an overall length of 24 in., making it well-suited for applications that require extended reach into concrete or masonry.

What materials is this drill bit made from?

The body is constructed from a chromium-nickel-molybdenum steel alloy, which is heat-treated and shot-peened to increase surface hardness and resistance to bending forces. The cutting tip is carbide, with uniformly brazed carbide inserts for longer bit life and consistent performance.

Does this bit meet any recognized industry standards?

Yes, this drill bit conforms to ANSI Standard B212.15, an industry-recognized standard for dimensional and performance requirements for rotary hammer drill bits used in concrete and masonry applications.
