Product Features
Product Description

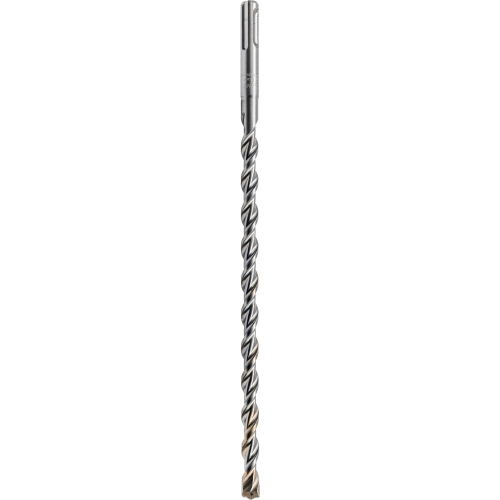

The Simpson MDPL07510 3/4 in. x 10 in. SDS-plus Shank Drill Bit is a professional-grade, carbide-tipped drill bit from Simpson Strong-Tie engineered for demanding concrete drilling applications. Featuring a 2-Cutter Head design and SDS-plus shank, this bit is manufactured to the highest industry standards and incorporates proprietary features that enhance durability and drilling speed, while improving ease of use. Its chromium-nickel-molybdenum steel alloy body and precision heat-treatment processes make it a dependable choice for contractors and professionals who require consistent, high-performance results.
Key Features
- Uniformly brazed carbide inserts result in longer bit life
- Most bits contain a centering tip that facilitates easy spot drilling
- Chromium-nickel-molybdenum steel alloy body ensures hammering quality and extended service life
- Heat-treatment procedures and shot-peened finish increase surface hardness, drilling speed, reduces drill bit wear and improves resistance to bending forces
- Drill bits conform to ANSI Standard B212.15
- Chisel-shaped drill-bit head penetrates the material and directs concrete dust into the multi-flute spiral
- High-volume, multi-flute spiral quickly channels concrete dust from the hole to improve drilling speed
- 2-Cutter Head design for precise, efficient penetration
- SDS-plus shank for secure, tool-free bit changes with compatible rotary hammers
Specifications
- MPN: MDPL07510
- Brand: Simpson Strong-Tie
- Diameter: 3/4 in.
- Overall Length: 10 in.
- Drilling Depth: 8 in.
- Head Type: 2-Cutter Head
- Shank Type: SDS-plus Shank
- Material: Hardened Steel
- Tip Material: Carbide
- ANSI Standard: B212.15
- Country of Origin: DE
Frequently Asked Questions
- What type of shank does the MDPL07510 drill bit use?
- The MDPL07510 features an SDS-plus shank, which allows for quick, tool-free bit changes and is compatible with SDS-plus rotary hammers and rotohammers.
- What is the drilling depth and overall length of this bit?
- This bit has a drilling depth of 8 in. and an overall length of 10 in., with a diameter of 3/4 in., making it suitable for deeper anchor and fastener holes in concrete applications.
- What material is the body of this drill bit made from?
- The body is constructed from a chromium-nickel-molybdenum steel alloy, which ensures hammering quality and extended service life. Heat-treatment procedures and a shot-peened finish further increase surface hardness and resistance to bending forces.
- What standards does this drill bit conform to?
- The MDPL07510 drill bit conforms to ANSI Standard B212.15, ensuring it meets precise dimensional and performance tolerance requirements for professional-grade drilling applications.
Note: Product dimensions may differ from picture. Please see the item description above for specifications.
