Product Features

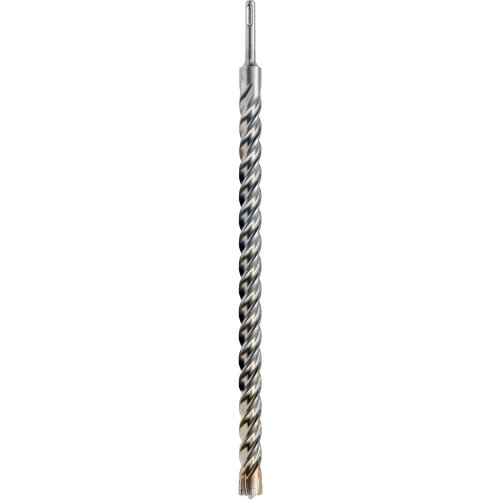

Product Description
Key Features
- Uniformly brazed carbide inserts result in longer bit life
- Centering tip facilitates easy spot drilling
- Chromium-nickel-molybdenum steel alloy body ensures hammering quality and extended service life
- Heat-treatment procedures and shot-peened finish increase surface hardness, drilling speed, reduce drill bit wear, and improve resistance to bending forces
- Conforms to ANSI Standard B212.15 for verified quality and dimensional accuracy
- High-volume, multi-flute spiral quickly channels concrete dust from the hole to improve drilling speed
- 4 x 90 deg. Quad Head geometry crushes through rebar and prevents sticking in reinforced concrete
Specifications
- Specification: Value
- Model Number (MPN): MDPL10018Q
- Shank Type: SDS-plus Shank
- Head Type: Quad Head 4x Drill Bit
- Diameter: 1 in.
- Overall Length: 18 in.
- Drilling Depth: 16 in.
- Material: Hardened Steel with Carbide Tip
- Standard Compliance: ANSI Standard B212.15
- Country of Origin: Germany
Approved Applications
- Drilling into reinforced concrete - the 4 x 90 deg. Quad Head geometry crushes through rebar and prevents sticking
Frequently Asked Questions
- What type of shank does this drill bit use, and will it fit my rotary hammer?
- This drill bit uses an SDS-plus shank, which is a widely used standard on most mid-size rotary hammers. As long as your rotary hammer accepts SDS-plus tooling, this bit will be compatible with it.
- Can this bit drill through reinforced concrete with rebar?
- Yes. The 4 x 90 deg. Quad Head geometry is specifically designed to crush through rebar and prevent the bit from sticking in reinforced concrete, making it well suited for demanding applications in reinforced concrete.
- What are the key dimensions and drilling depth of this bit?
- This bit has a 1 in. diameter and an overall length of 18 in. The maximum drilling depth is 16 in.
- What materials and quality standards does this drill bit meet?
- The bit body is made from a chromium-nickel-molybdenum steel alloy with uniformly brazed carbide inserts. It undergoes heat-treatment procedures and a shot-peened finish to increase surface hardness, improve drilling speed, reduce wear, and resist bending forces. It conforms to ANSI Standard B212.15 for verified quality and dimensional accuracy.
