Key Features

• Longer bit life - Uniformly brazed carbide inserts result in longer bit life.
• Easy spot drilling - Centering tip facilitates easy spot drilling for precise hole starts.
• Superior body strength - Chromium-nickel-molybdenum steel alloy body ensures hammering quality and extended service life.
• Enhanced surface hardness - Heat-treatment procedures and shot-peened finish increase surface hardness and drilling speed, reduce drill bit wear, and improve resistance to bending forces.
• ANSI compliant - Drill bits conform to ANSI Standard B212.15.
• Efficient dust channeling - Chisel-shaped 2-Cutter drill-bit head penetrates material and directs concrete dust into the multi-flute spiral.
• High-volume multi-flute spiral - Quickly channels concrete dust from the hole to improve drilling speed and keep the bore clear.

Specifications

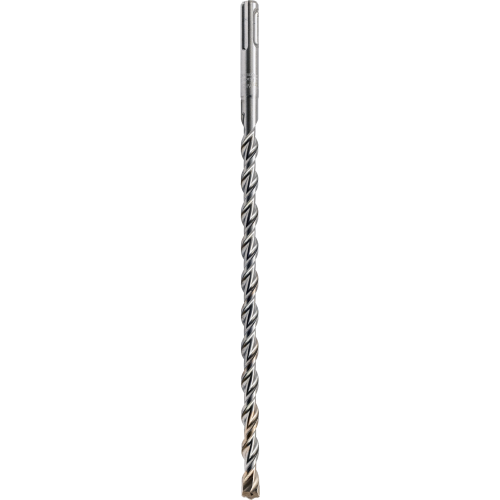

• Model Number (MPN): MDPL10010
• Brand: Simpson Strong-Tie
• Shank Type: SDS-plus Shank
• Head Type: 2-Cutter Head
• Diameter: 1 in.
• Overall Length: 10 in.
• Drilling Depth: 8 in.
• Material / Body: Hardened Steel (Chromium-Nickel-Molybdenum Steel Alloy)
• Tip Material: Carbide-Tipped
• Finish: Shot-Peened
• Compliance Standard: ANSI Standard B212.15
• Country of Origin: Germany

Approved Applications

• Drilling into concrete with SDS-plus rotary hammer tools
• Masonry drilling applications requiring precise tolerance and hole accuracy
• Professional and contractor-grade demolition and drilling projects
• Any drilling application requiring an ANSI B212.15-compliant SDS-plus bit

Frequently Asked Questions

What type of drill is required to use this bit?

This bit is designed for use with SDS-plus rotary hammer tools. The SDS-plus shank is a standard interface that locks securely into compatible rotary hammers, making it suitable for drilling into concrete and masonry applications.

What are the key dimensions of this drill bit?

The Simpson MDPL10010 has a 1 in. diameter, an overall length of 10 in., and a maximum drilling depth of 8 in. These dimensions make it well suited for deeper anchor and fastener holes in concrete and masonry.

What materials is this drill bit made from, and how does that affect performance?

The body is constructed from a chromium-nickel-molybdenum steel alloy, which ensures hammering quality and extended service life. The tip is carbide, with uniformly brazed carbide inserts for longer bit life. Heat-treatment procedures and a shot-peened finish further increase surface hardness, improve drilling speed, reduce bit wear, and enhance resistance to bending forces.

Does this drill bit meet any industry compliance standards?

Yes, the Simpson MDPL10010 conforms to ANSI Standard B212.15, ensuring it meets precise tolerance requirements for professional and contractor-grade drilling applications.
