Product Features
Product Description

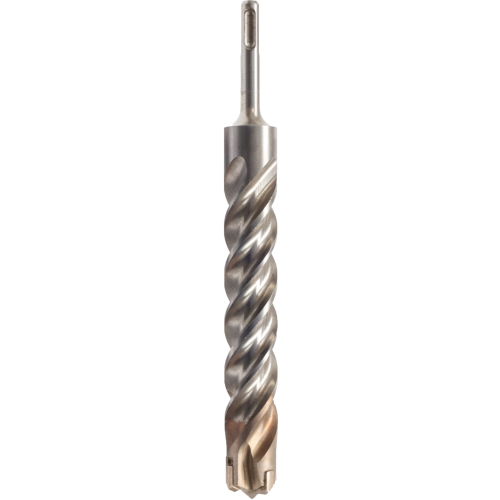

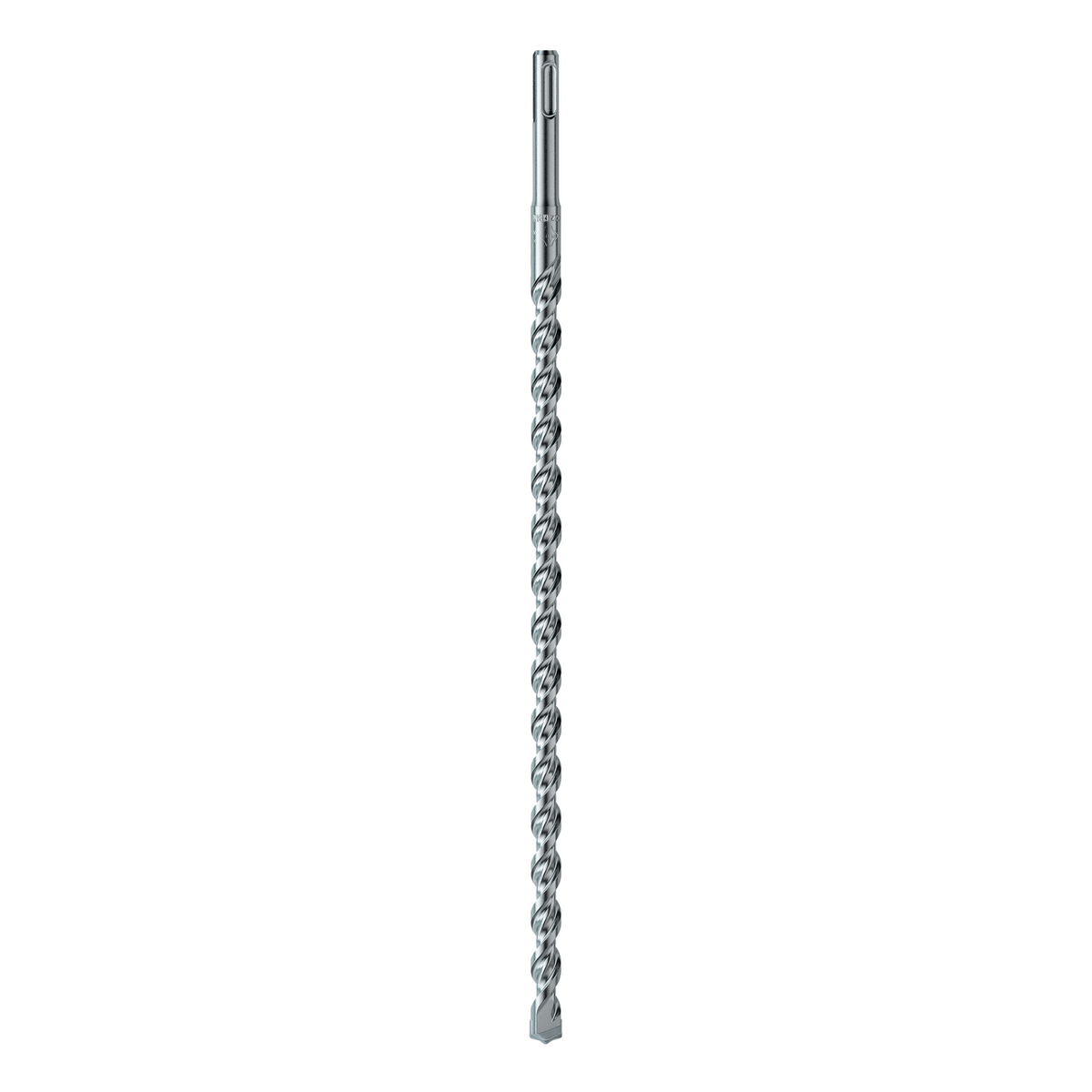

The Simpson MDPL05010 1/2 in. x 10-1/4 in. SDS-plus Shank Drill Bit is a premium-quality, professional-grade carbide-tipped drill bit from Simpson Strong-Tie, engineered to deliver exceptional performance in concrete drilling applications. Featuring a 2-cutter head design and SDS-plus shank compatibility, this bit is built to meet precise tolerance requirements while incorporating proprietary features that enhance durability, drilling speed, and ease of use.
Key Features
- Uniformly brazed carbide inserts result in longer bit life
- Most bits contain a centering tip that facilitates easy spot drilling
- Chromium-nickel-molybdenum steel alloy body ensures hammering quality and extended service life
- Heat-treatment procedures and shot-peened finish increase surface hardness, drilling speed, reduces drill bit wear and improves resistance to bending forces
- Drill bits conform to ANSI Standard B212.15
- Chisel-shaped drill-bit head penetrates the material and directs concrete dust into the multi-flute spiral
- High-volume, multi-flute spiral quickly channels concrete dust from the hole to improve drilling speed
- Compatible with all current and older SDS-plus rotohammers from AEG, Black & Decker, Bosch, DeWalt, Hitachi, Hilti, Kango, Makita, Metabo, Milwaukee, Porter Cable, Ramset, Red Head, Ryobi, and Skil
Specifications
- MPN: MDPL05010
- Brand: Simpson Strong-Tie
- Shank Type: SDS-plus Shank
- Head Type: 2-Cutter Head
- Diameter: 1/2 in.
- Drilling Depth: 8 in.
- Overall Length: 10-1/4 in.
- Material: Hardened Steel
- Country of Origin: DE
Frequently Asked Questions
- What type of shank does the MDPL05010 drill bit use?
- The MDPL05010 features an SDS-plus shank, making it compatible with all current and older SDS-plus rotohammers from a wide range of manufacturers including Bosch, DeWalt, Makita, Milwaukee, Hilti, and many others.
- What is the drilling depth and overall length of this bit?
- This drill bit has a drilling depth of 8 in. and an overall length of 10-1/4 in., with a 1/2 in. diameter.
- What makes this drill bit more durable than standard bits?
- The MDPL05010 is constructed with a chromium-nickel-molybdenum steel alloy body and features uniformly brazed carbide inserts. Additionally, heat-treatment procedures and a shot-peened finish increase surface hardness, reduce drill bit wear, and improve resistance to bending forces for extended service life.
- Does this drill bit meet any industry standards?
- Yes, this drill bit conforms to ANSI Standard B212.15, ensuring it meets precise tolerance requirements and professional-grade quality benchmarks.
Note: Product dimensions may differ from picture. Please see the item description above for specifications.
