Product Features
Product Description

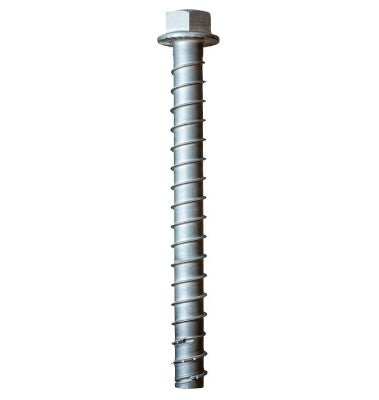

The Simpson Titen HD 1/2 in. x 6-1/2 in. Type 304 Stainless Steel Heavy-Duty Screw Anchor by Simpson Strong-Tie sets the standard for heavy-duty concrete and masonry anchoring in wet, moist, or damp environments. Combining the long-lasting corrosion resistance of Type 304 stainless steel with an innovative heat-treated carbon-steel cutting thread, this screw anchor delivers fast, efficient installation and outstanding load performance - making it the go-to solution for professionals who demand reliability without compromise.
Key Features
- Qualified for static and seismic loading conditions
- Thread design undercuts to efficiently transfer the load to the base material
- No special drill bit required; designed to install using standard-sized ANSI tolerance drill bits
- Hex-washer head requires no separate washer and provides a clean installed appearance

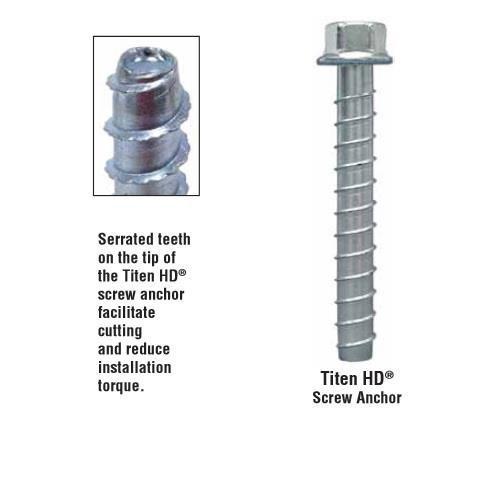

- Innovative carbon-steel thread effectively cuts the concrete while significantly limiting the amount of carbon steel in the anchor; less carbon steel, less expansion
- Made from Type 304 stainless steel - a cost-effective solution for applications where the environment may be wet, moist, or damp
- Combines the corrosion resistance of Type 300 Series stainless steel with the undercutting ability of heat-treated carbon-steel cutting threads
- Caution: Use a Titen HD screw anchor one time only - installing the anchor multiple times may result in excessive thread wear and reduce load capacity
Specifications
- Manufacturer: Simpson Strong-Tie
- MPN: THD50612H4SS
- Diameter: 1/2 in.
- Length: 6-1/2 in.
- Material: Type 304 Stainless Steel
- Finish: Type 304 Stainless Steel
- Head Type: Hex-Washer Head
- Drive Size: 3/4 in. hex
- Installation Method: Installs with an impact wrench or by hand tool; wrench size 3/4 in.
- Recommended Fixture Hole Size: 5/8 in. to 11/16 in.
- Packaging: Packs of 20 and Cartons of 40
- Country of Origin: China
Approved Applications
- Concrete anchoring in wet, moist, or damp environments
- Masonry anchoring requiring corrosion resistance
- Static load applications
- Seismic load applications
- General construction projects where Type 304 stainless steel is specified for moderate corrosion resistance
Frequently Asked Questions
- What type of environments is the Type 304 stainless steel version best suited for?
- Type 304 stainless steel is a cost-effective solution for less extreme applications where the environment may be wet, moist, or damp. For highly corrosive or extreme environments such as salt water or where chemical or corrosive solutions are present, Type 316 stainless steel is the recommended choice.
- Do I need a special drill bit to install this screw anchor?
- No special drill bit is required. The Titen HD screw anchor is designed to install using standard-sized ANSI tolerance drill bits, simplifying the installation process.
- Can this anchor be removed and reinstalled in the same hole?
- No. The Titen HD screw anchor should be used one time only. Installing the anchor multiple times may result in excessive thread wear and reduce its load capacity.
- Is this anchor rated for seismic applications?
- Yes. The Simpson Titen HD screw anchor is qualified for both static and seismic loading conditions, making it suitable for use in regions with seismic requirements.
Note: Product dimensions and/or thread length may differ from picture. Please see the item description above for specifications.
