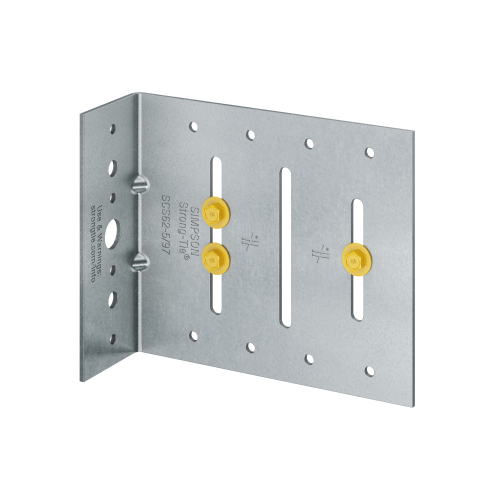

The Simpson SCS62-5/97-KT25 Seismic Bypass Framing Slide Clip is a heavy-duty hybrid connector engineered for framing installations in high-seismic zones where both slide-clip and fixed-clip performance may be required within a single project. Built from 12-gauge (97 mil) steel and finished with a Zinc Galvanized (G90) coating, every element of the SCS clip - from its precision-located ribs and strategically placed darts to the arrangement of its fastener slots and round holes - has been purpose-built to deliver exceptional resistance to in-plane seismic loads. Backed by real-world, full-scale cyclic testing, the SCS clip delivers the highest seismic loads in the industry. This kit includes 25 connectors and 83 XLSH78B1414 #14 shouldered screws so installers have everything required to complete the work without sourcing fasteners separately.

Key Features

• Full 1 in. of vertical deflection in slide-clip mode - the included shouldered washer screws work within the oblong slide slots to accommodate structural movement, helping protect framing assemblies during seismic events without requiring field modification.
• Dual-function design with prepunched slots and round holes - a single clip handles both slide-clip and fixed-clip applications, reducing the need to stock multiple connector types and giving installers flexibility to meet varying load requirements on the same job.
• Precision-located ribs enhance strength while allowing ductility - this balance of rigidity and controlled flex is critical in seismic applications where the connector must resist forces without becoming brittle or failing suddenly.
• Simpson Strong-Tie No-Equal stamps alongside slide slots - clearly marked screw placement indicators guide installers to the correct fastener position, with attachment at the first slot being most critical to in-plane capacity and the clip accommodating two large washer screws at that location.
• Shouldered washer screws included in the kit - the 83 XLSH78B1414 #14 screws packaged with the connectors are specifically engineered for use with these slide slots, ensuring rated performance is achieved without the risk of substituting an incompatible fastener.
• 12-gauge (97 mil) steel construction with G90 galvanized finish - heavy-gauge material provides the structural integrity demanded by seismic applications, while the corrosion-resistant coating supports long-term performance in exposed or moisture-prone framing environments.

Why This Product

• One clip, two installation modes - the hybrid configuration of oblong slide slots and small round holes means this connector can be deployed as either a slide clip or a fixed clip, giving structural framers a single versatile solution that adapts to the load requirements of different wall conditions without switching products.
• Engineered end-to-end for high-seismic performance - the SCS clip is not a general-purpose framing connector adapted for seismic use; every design detail, including dart placement, slot positioning, and rib geometry, has been developed specifically to resist in-plane seismic loads, supported by full-scale cyclic testing.
• Complete, job-ready kit - pairing 25 connectors with 83 XLSH78B1414 #14 shouldered screws in one package means the correct, compatible fasteners are on hand from the start, eliminating a common source of field delays and installation errors that occur when hardware is sourced separately.
• Guided installation reduces placement error - the No-Equal stamps printed directly on the clip alongside each slide slot serve as a built-in installation guide, directing crews to the correct screw position for maximum in-plane capacity without relying on memory or referencing separate documentation on the job site.

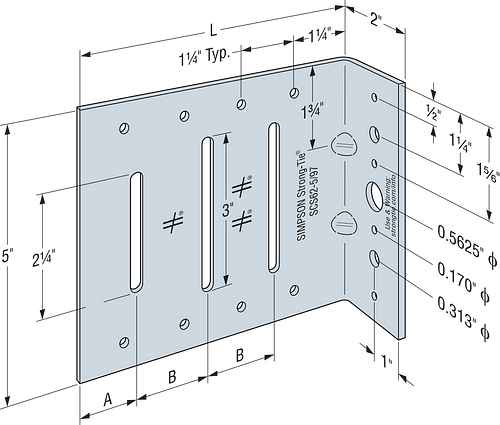

Specifications

• Model Number (MPN): SCS62-5/97-KT25
• Width: 6 in.
• Gauge: 12-Gauge
• Thickness: 97 mil
• Coating / Finish: Zinc Galvanized, G90
• Vertical Deflection: 1 in. (full)
