Product Description

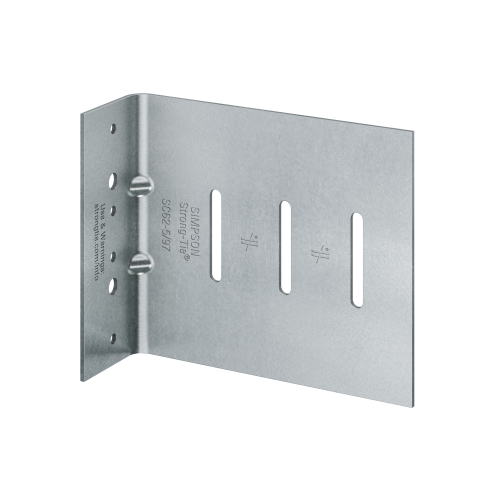

The Simpson SC62-5/97-KT25 SC 6 in. 12 ga. Bypass Framing Slide-Clip Connector with Screws from Simpson is purpose-built for slide-clip bypass framing in high-seismic zones and curtain-wall construction. Fabricated from heavy-duty 12-gauge steel at 50 ksi, these SC connectors deliver exceptional resistance to in-plane seismic load while offering multiple anchorage methods - welding, concrete screws, or powder-actuated fasteners - to suit the demands of cold-formed steel framing projects where both structural performance and installation flexibility are non-negotiable.
Key Features
- Full 3/4 in. upward and downward deflection - accommodates vertical movement in both directions, keeping the structure properly supported through seismic events and thermal cycling without overstressing the framing connection.
- Strategically positioned embossments in the bend line - increase strength and stiffness in the F1 and F2 load directions while leaving room at the top and bottom of the clip for 1 1/2 in. long welds, giving installers a clean, code-compliant welding zone.
- Prepunched large-diameter anchor holes - accept 1/4 in. diameter concrete screws such as the Simpson Titen HD, providing a fast, reliable mechanical attachment option without field drilling.
- Prepunched small-diameter anchor holes - accommodate powder-actuated fasteners like the 0.157 in. diameter Simpson PDPAT or the #12 self-drilling Simpson Strong-Drive XL Large-Head Metal screw, expanding anchorage options for varied substrate conditions.
- No-Equal stamps centered on the slots - guide installers to the correct shouldered screw placement every time, reducing installation error and ensuring the clip performs as engineered.
- Precision-manufactured shouldered screws included - designed to prevent overdriving and ensure proper clip function, eliminating the guesswork of sourcing compatible fasteners separately.
- 6 in. clip length for 6 in. studs with a maximum standoff distance of 1 1/2 in. - sized and rated specifically for 6 in. stud framing assemblies, ensuring a correct fit without field modification.
Why This Product
- Engineered for high-seismic performance - the SC connector's heavy-duty 12-gauge, 50 ksi steel construction and embossed bend line are specifically designed to resist in-plane seismic loads, making this a dependable choice where structural integrity under seismic forces is a code requirement.
- Unmatched anchorage versatility - with support for welding, large-diameter concrete screws, and powder-actuated fasteners all from a single prepunched clip, contractors can adapt their attachment method to the substrate without switching products or compromising load ratings.
- Fastener confidence built in - the included precision shouldered screws and No-Equal slot stamps work together to prevent overdriving and confirm correct placement, reducing callbacks and keeping installations consistent across an entire crew.
- Complete, job-ready package - each pack includes both the connectors and the correct shouldered screws needed for installation, so the right components arrive together and projects stay on schedule.

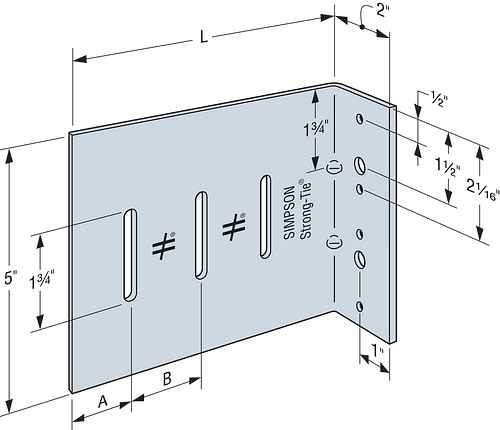

Specifications
- MPN: SC62-5/97-KT25
- Brand: Simpson Strong-Tie
- Clip Length: 6 in.
- Gauge: 12 ga.
- Thickness: 97 mil
- Steel Strength: 50 ksi
- Coating/Finish: Zinc Galvanized, G90
- Member Size: 6 in. stud
- Maximum Standoff Distance: 1-1/2 in. for 6 in. studs
- Deflection: 3/4 in. upward and 3/4 in. downward
- Install With: Fasteners may vary by application; refer to Simpson Strong-Tie catalog or strongtie.com
- Country of Origin: United States
- Package Quantity: 25 connectors
Approved Applications
- Bypass framing
What's Included
- (25) SC62-5/97 connectors
- (83) XLSH78B1414 #14 shouldered screws
Note: Product dimensions may differ from picture. Please see the item description above for specifications.
Frequently Asked Questions
How much deflection do the Simpson SC62-5/97 slide-clip connectors allow?
These connectors provide a full 3/4 in. of both upward and downward deflection, making them well-suited for structural applications where vertical movement must be accommodated.
Can the SC62-5/97 clips be welded to a structure, and are there other attachment options?
Yes. SC clips are often welded to the structure in high-seismic zones. They also feature prepunched large-diameter anchor holes that accommodate 1/4 in. diameter concrete screws such as the Simpson Strong-Tie Titen HD, as well as prepunched small-diameter anchor holes for powder-actuated fasteners like the 0.157 in. diameter Simpson Strong-Tie PDPAT or the #12 self-drilling Simpson Strong-Tie Strong-Drive XL Large-Head Metal screw.
What is the maximum standoff distance for 6 in. studs when using these clips?
The maximum standoff distance is 1-1/2 in. for 6 in. studs.
What screws are included with the SC62-5/97-KT25 package, and why are they important?
Each package includes (83) XLSH78B1414 #14 shouldered screws. These precision-manufactured shouldered screws are designed to prevent overdriving and to ensure the clip functions properly. The SC clips also include No-Equal stamps at the center of the slots to ensure proper shouldered screw placement.
