Product Description

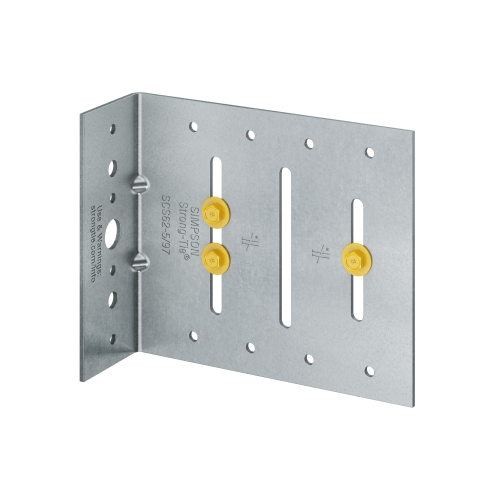

The Simpson SCS32-5/97-KT25 Seismic Bypass Framing Slide Clip from Simpson Strong-Tie is a heavy-duty hybrid connector engineered from the ground up for framing connections in areas of high seismic activity. Every design element - from its 12-gauge steel construction to its strategically placed fastener slots and precision-located ribs - has been purpose-built and validated through real-world, full-scale cyclic testing to deliver exceptional resistance to in-plane seismic loads. The dual-function SCS clip accommodates both slide-clip and fixed-clip applications in a single connector, giving builders and engineers the flexibility to meet a wide range of structural load requirements without swapping hardware. Shouldered washer screws are included, and Simpson Strong-Tie No-Equal stamps alongside the slide slots take the guesswork out of proper screw placement on the job site.
Key Features
- Full 1 in. of vertical deflection in slide mode - the oblong slide slots, used with the included shouldered washer screws, accommodate building movement without transferring damaging loads into the framing, which is critical in seismic zones.
- Dual-function slot and hole pattern - three prepunched oblong slots enable slide-clip use while a separate pattern of small round holes supports fixed-clip configurations, so a single clip type can satisfy multiple engineering specifications on the same project.
- Precision-located ribs for strength with ductility - the strategically placed darts enhance load capacity while preserving the controlled flexibility needed to perform under cyclic seismic loading, reducing the risk of brittle failure.
- No-Equal stamps alongside slide slots - built-in visual indicators show installers exactly where to drive the shouldered washer screws at the first slot, where in-plane capacity is most critical, minimizing costly installation errors.
- Made from 12-gauge (97 mil) steel - heavy-duty construction provides the structural integrity required for high-load seismic bypass framing connections in demanding applications.
- G90 zinc galvanized finish - the corrosion-resistant coating helps protect the connector in moisture-exposed framing environments, supporting long-term performance behind the wall assembly.
- Shouldered washer screws included - the kit ships with 55 XLSH78B1414 #14 shouldered screws matched specifically to the slide slots, eliminating a separate fastener procurement step and ensuring compatibility from day one.
Why This Product
- Engineered specifically for seismic bypass framing - unlike general-purpose framing clips, the SCS is designed from the ground up for high seismic activity environments, with full-scale cyclic testing behind its load ratings, giving engineers and inspectors a connector they can specify with confidence.
- One clip, two applications - the hybrid slide-and-fixed design means contractors can carry a single clip type that satisfies both slide-clip and fixed-clip requirements on the same job, reducing the number of SKUs to track and the chance of grabbing the wrong connector.
- Fastener placement is built into the clip - the No-Equal stamps at the slide slots guide installers to the correct screw position at the first slot, where attachment is most critical to in-plane seismic capacity, helping ensure the connection performs exactly as engineered even under field conditions.
- Complete, ready-to-install kit - the SCS32-5/97-KT25 includes both the connectors and the matched XLSH78B1414 #14 shouldered screws in a single package, so the hardware needed for a code-compliant seismic framing connection arrives together without hunting for compatible fasteners separately.

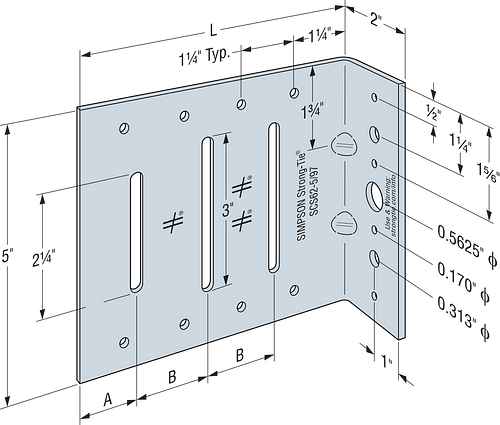

Specifications
- Manufacturer Part Number (MPN): SCS32-5/97-KT25
- Brand: Simpson Strong-Tie
- Gauge: 12
- Thickness: 97 mil
- Width: 3-1/2 in.
- Coating / Finish: Zinc Galvanized, G90
- Material: Steel
- Installation Fasteners: XLSH78B1414 #14 shouldered screws (included)
- Vertical Deflection (Slide Mode): 1 in.
- Quantity: 25 connectors per kit
- Country of Origin: United States
Approved Applications
- Seismic bypass framing connections in areas of high seismic activity
- Slide-clip framing applications requiring up to 1 in. of vertical deflection
- Fixed-clip framing applications using prepunched round hole pattern
- Hybrid installations where both slide-clip and fixed-clip configurations may be required
- In-plane se
Frequently Asked Questions
Can this clip be used for both slide-clip and fixed-clip applications?
Yes. The SCS32-5/97-KT25 is a dual-function hybrid clip. It features three prepunched oblong slots for slide-clip applications, allowing a full 1 in. of vertical deflection, as well as a pattern of small round holes that enable fixed-clip options to meet a range of load needs.
What fasteners are included with this kit, and where should they be installed?
Each kit includes 25 connectors and 55 XLSH78B1414 #14 shouldered screws. Because slide-clip testing confirms that attachment at the first slot is most critical to in-plane capacity, the SCS is designed to accommodate two of these large washer screws at the first slot attached to the stud. Simpson Strong-Tie No-Equal stamps alongside the slide slots indicate proper screw placement.
What material and finish is the SCS32-5/97-KT25 made from?
The clip is made from 12-gauge (97 mil) steel with a G90 zinc galvanized finish for corrosion resistance. It measures 3-1/2 in. wide and is manufactured in the United States.
What makes this clip suitable for high seismic activity areas?
The SCS clip has been engineered specifically for areas of high seismic activity and is validated through real-world, full-scale cyclic testing to deliver the highest seismic loads in the industry. Precision-located ribs enhance strength while allowing ductility, and the strategically placed fastener slots and holes are designed to provide exceptional resistance to in-plane seismic loads.
