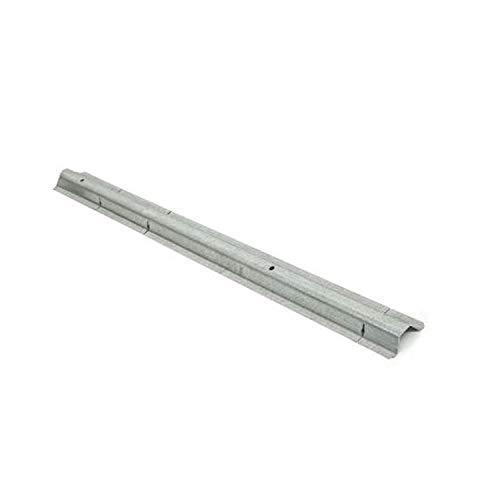

The Simpson DBR/30 22-Gauge Galvanized Drywall Spacer Bracer is an interior cold-formed steel framing solution engineered by Simpson Strong-Tie to reduce installed costs, eliminate stud bow, and speed up drywall attachment. Designed specifically for interior steel stud walls, this spacer bracer provides continuous bracing along the full length of each stud while also accommodating head-of-wall slip conditions - giving framers a faster, more reliable path to a flat, ready-to-sheath wall assembly.

Key Features

• Pre-punched slots eliminate the need for bridging clips with on-module studs - reducing hardware count and cutting installation time on steel stud wall assemblies
• Provides bracing along the length of the stud - actively prevents stud bow so interior walls stay plumb and straight before and during drywall installation
• Accommodates head-of-wall slip conditions - allows the wall assembly to move with building deflection without compromising structural integrity
• 22-gauge steel construction - delivers consistent strength and dimensional precision in cold-formed steel framing applications
• Zinc galvanized G90 finish - provides corrosion resistance suited for interior construction environments where long-term durability is expected
• Comes with bracing load data based on assembly testing - gives designers verified performance numbers to work from, reducing project risk and increasing confidence in design specifications
• Made in the United States - manufactured to consistent quality standards for dependable performance across commercial and residential steel framing projects

Why This Product

• Speeds up stud layout and drywall attachment on interior walls - the pre-punched slots eliminate the separate step of installing bridging clips with on-module studs, directly reducing labor time and installed cost
• Assembly-tested bracing load data is included - unlike spacer bracers without published load ratings, this product gives engineers and designers verified numbers they can cite in specifications, reducing liability and guesswork
• Eliminates stud bow before drywall goes up - by bracing studs along their full length, the DBR removes one of the most common causes of uneven drywall surfaces in cold-formed steel wall assemblies
• Handles head-of-wall slip conditions - this built-in capability means the same product works across a wider range of interior wall configurations without requiring additional hardware or workarounds

Specifications

• Brand: Simpson Strong-Tie
• Gauge: 22
• Finish: Zinc Galvanized, G90
• Coating: Zinc Galvanized, G90
• Country of Origin: United States

Available Pack Options

• DBR/30-R20: 20 Pk
• DBR/30-R680: 680 (Pallet)

Frequently Asked Questions

What is the DBR drywall spacer bracer designed to do?

The DBR is designed for interior cold-formed steel stud walls. It eliminates stud bow, provides bracing along the full length of each stud, and allows for quicker drywall attachment. It also accommodates head-of-wall slip conditions, making it a versatile solution for a range of interior wall assemblies.

Do I still need bridging clips when using the DBR?

Not with on-module studs. The DBR features pre-punched slots that eliminate the need for separate bridging clips when studs are placed on-module, simplifying installation and reducing the number of components required on the job.

Is bracing load data available for the DBR?

Yes. The DBR comes with bracing load data based on assembly testing. This gives structural designers and engineers verified performance data to reference in their specifications, helping to mitigate risk and increase confidence in the design.

What is the gauge and finish of the DBR spacer bracer?

The DBR spacer bracer is manufactured from 22-gauge steel with a Zinc Galvanized G90 finish, providing consistent material thickness and corrosion resistance appropriate for interior steel framing applications.
