Product Features
Product Description

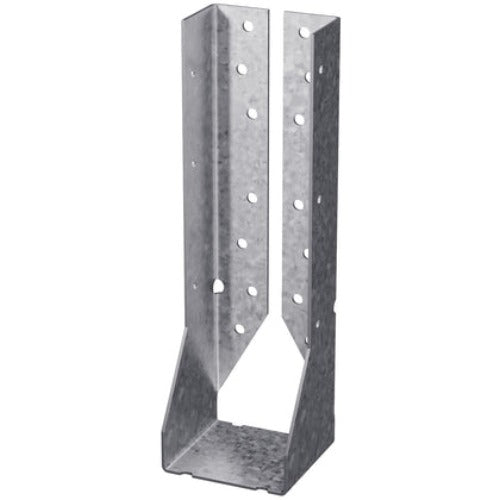

The Simpson HUC410 HUC Galvanized Face-Mount Concealed-Flange Joist Hanger for 4x10 is a heavy-duty structural connector engineered by Simpson Strong-Tie for applications requiring additional strength and safety factors. Designed to install wood joists to wood, masonry, and concrete, this face-mount hanger features concealed header flanges that deliver cleaner visible lines in exposed framing conditions. Its 14-gauge galvanized steel construction provides lasting durability in demanding structural environments.
Key Features
- Extra optional triangle holes for additional load
- HUC-series hangers are tested, load rated and code compliant
- Install wood joists to wood, masonry and concrete
- Seat width: 3-9/16 in.
- Nominal joist size: 4x10
- Made from 14-gauge steel
- Galvanized (G90) for extra corrosion resistance
Specifications
- MPN: HUC410
- Member Size: 4x10
- Height: 8-3/8 in.
- Width: 3-9/16 in.
- Seat Depth: 2-1/2 in.
- Gauge: 14
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Install With: (14-18) 0.162 in. x 3-1/2 in. nails in the header and (6-10) 0.148 in. x 3 in. nails in the joist OR (28) #10 x 1-1/2 in. Strong-Drive SD Connector screws (sold separately)
- Country of Origin: United States
Approved Applications
- Wood joist to wood header connections
- Wood joist to masonry connections
- Wood joist to concrete connections
- Exposed framing conditions requiring concealed header flanges for cleaner visible lines
- Structures requiring additional strength and safety factors
Options
- Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What size joist is the HUC410 designed to support?
- The HUC410 is designed for a nominal joist size of 4x10, with a seat width of 3-9/16 in. to properly cradle and support the joist member.
- What type of fasteners are required to install the HUC410?
- Installation requires either (14-18) 0.162 in. x 3-1/2 in. nails in the header and (6-10) 0.148 in. x 3 in. nails in the joist, or (28) #10 x 1-1/2 in. Strong-Drive SD Connector screws.
- What does the G90 galvanized coating mean for this hanger?
- The G90 designation refers to a zinc galvanized coating that provides extra corrosion resistance, making the HUC410 suitable for use in environments where moisture exposure is a concern.
- Why are the header flanges concealed on the HUC410?
- The concealed header flanges are specifically designed to provide cleaner visible lines in exposed framing conditions, making the HUC410 an ideal choice where aesthetics of the structural connection are important alongside performance.
Note: Product dimensions and/or nail holes may differ from picture. Please see item description and Spec Sheet for specifications.
