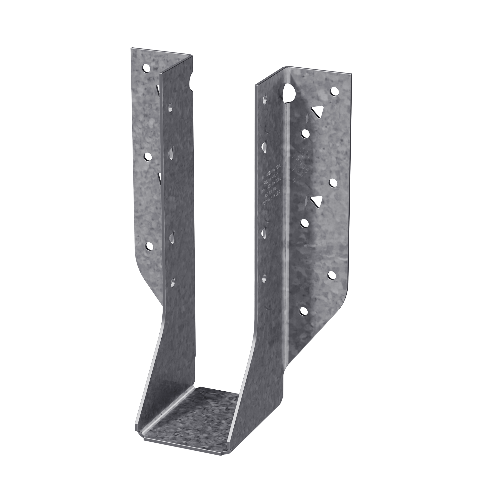

The Simpson HU7 HU Galvanized Face-Mount Joist Hanger is a heavy-duty structural connector from Simpson engineered to support 1-3/4 in. x 7-1/4 in. engineered wood members with the added strength and safety margins that demanding framing applications require. Built to the rigorous standards that engineers and contractors rely on, this face-mount hanger delivers a secure, load-bearing connection between the joist and header, making it a dependable choice for residential and commercial framing projects alike.

Key Features

• "U" design allows for flexibility of placement on the header - lets you fine-tune the hanger's position during installation, reducing the risk of misalignment and saving time on the job.
• Sized for 1-3/4 in. x 7-1/4 in. engineered wood members - matches the actual dimensions of common engineered lumber, ensuring a snug, play-free fit that maintains structural integrity.
• 14-gauge steel construction - provides the heavy-duty rigidity needed for structures where additional strength and safety factors are required beyond what lighter hangers can deliver.
• Zinc Galvanized G90 coating - offers extra corrosion resistance, extending the service life of the connector in moisture-prone or treated-lumber environments.
• Specific nail pattern for header and joist - the designated fastener sizes for each bearing surface work together to achieve a fully engineered, code-consistent connection when installed as directed.

Why This Product

• Heavy-duty performance where it counts - the HU series is specifically designed for structures requiring additional strength and safety factors, giving builders and engineers confidence that the connection won't be the weak point in the assembly.
• Trusted by professionals across the industry - Simpson Strong-Tie connectors are the choice of engineers and contractors because every connector is engineered, tested, and manufactured to consistent quality standards.
• Corrosion-resistant finish for long-term durability - the G90 galvanized coating goes beyond basic protection, making this hanger a solid investment for projects exposed to humidity, outdoor conditions, or pressure-treated lumber.
• Made in the United States to exacting standards - domestic manufacturing supports tighter quality control, so each hanger arrives ready to perform exactly as engineered without dimensional surprises in the field.

Specifications

• MPN: HU7
• Member Size: 1-3/4 in. x 7-1/4 in.
• Width: 1-13/16 in.
• Seat Depth: 2-1/2 in.
• Height: 6-11/16 in.
• Gauge: 14
• Coating: Zinc Galvanized, G90
• Finish: Zinc Galvanized, G90
• Install With: Install with 0.162 in. x 3-1/2 in. nails in the header and 0.148 in. x 1-1/2 in. nails in the joist (sold separately)
• Country of Origin: United States

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What size joist is the HU7 designed to support?

The HU7 is designed for an actual joist size of 1-3/4 in. x 7-1/4 in., making it well suited for engineered wood members of that dimension.

What type of nails should be used to install the HU7?

Install with 0.162 in. x 3-1/2 in. nails in the header and 0.148 in. x 1-1/2 in. nails in the joist for a properly fastened connection.

What gauge steel is the HU7 made from, and what corrosion protection does it have?

The HU7 is made from 14-gauge steel and features a Zinc Galvanized G90 coating, which provides extra corrosion resistance for demanding environments.

What does the "U" design of the HU7 offer during installation?

The "U" design of the HU7 allows for flexibility of placement on the header, making it easier to position the hanger accurately during installation.

Note: Product dimensions and/or fastener holes may differ from picture. Please see item description for specifications.
