The Simpson Heavy Face-Mount Joist Hanger HU5.125/16 is a professional-grade structural connector engineered for framing applications that demand additional strength and elevated safety factors. Built by Simpson to serve demanding residential and commercial construction needs, this heavy-duty face-mount hanger delivers dependable load transfer in joist-to-beam and joist-to-wall connections where standard hangers fall short.

Key Features

• Heavy-duty face-mount design - engineered specifically for structural connections requiring additional strength and elevated safety factors, making it a reliable choice where performance cannot be compromised
• 14-gauge steel construction - provides the structural rigidity and load-bearing integrity required for high-demand framing assemblies in both residential and commercial settings
• G90 Zinc Galvanized coating - delivers robust corrosion resistance suited to demanding construction environments, helping the hanger maintain structural integrity over the long term
• Skewable and slopeable seat configurations - supports angled and sloped framing assemblies up to 45 deg., giving installers flexibility to address non-standard framing conditions without sourcing a separate connector
• Domestic production - built in the United States, supporting consistent quality standards expected in professional structural framing work

Why This Product

• Built for applications where standard hangers are not enough - the HU5.125/16 is specifically designed for structural framing connections that require additional strength and safety factors, making it the appropriate choice when load demands exceed what lighter-duty hangers can handle
• Versatile installation flexibility - with seat configurations that can slope up to 45 deg. and skewable options available, this face-mount hanger accommodates a wider range of framing conditions than fixed-geometry alternatives
• Corrosion protection built into the product - the G90 Zinc Galvanized coating is a recognized standard for durability in construction environments, so the protection is inherent to the hanger rather than relying on site-applied treatments
• Trusted Simpson engineering - the HU series is a well-established line of heavy-duty structural connectors from Simpson, a brand widely recognized by contractors and engineers for precision-engineered framing hardware

Specifications

• Model No.: HU5.125/16
• Gauge (Ga.): 14
• Width: 5 1/4
• Height: 13 7/8
• Seat Depth: 2 1/2
• Coating / Material: Zinc Galvanized, G90
• Country of Origin: United States

Approved Applications

• Structural framing connections requiring additional strength and safety factors
• Heavy-duty joist-to-beam or joist-to-wall face-mount installations
• Framing assemblies involving angled or sloped seat configurations up to 45 degrees
• Residential and commercial construction where elevated load performance is required

What's Included

• 1 x Simpson Heavy Face-Mount Joist Hanger HU5.125/16

Configurable Options

Some models of this heavy-duty, face-mount hanger can be configured with a skewable seat and a seat that slopes as far as up to 45 degrees. Contact us for Configurable Options and Special orders.

Frequently Asked Questions

What gauge steel is the HU5.125/16 made from?

The HU5.125/16 is manufactured from 14-gauge steel, providing the heavy-duty structural integrity required for high-load framing applications.

What type of corrosion protection does this hanger have?

This hanger features a G90 Zinc Galvanized coating, which provides a high level of corrosion resistance suitable for demanding construction environments.

What are the dimensions of the HU5.125/16?

The HU5.125/16 has a width (W) of 5 1/4 in., a height (H) of 13 7/8 in., and a B dimension of 2 1/2 in.

Where is the HU5.125/16 manufactured?

The HU5.125/16 is manufactured in the United States.

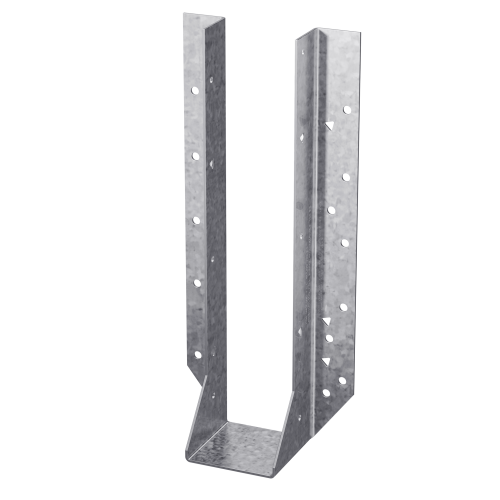

Note: Product dimensions and/or fastener holes may differ from picture. Please see item description for specifications.
