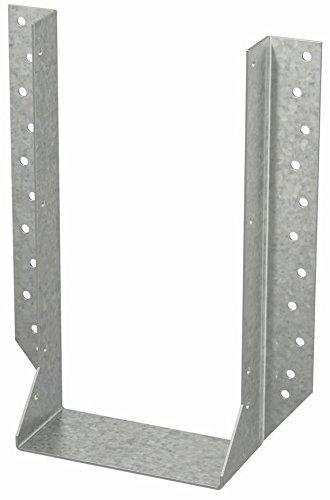

The Simpson HU5.125/12 Heavy-Duty Face-Mount Joist Hanger is a structural connector engineered by Simpson for framing applications that demand additional strength and safety. Built to support double 2-1/2 in. x 11-7/8 in. I-joists and 5-1/8 in. glulam engineered wood members, this heavy-gauge face-mount hanger delivers the precise, reliable performance that engineers and contractors depend on for code-compliant residential and commercial construction. Simpson connectors are manufactured to the highest quality standards and tested to perform, making them a trusted choice wherever structural integrity is non-negotiable.

Key Features

• "U" design for flexible header placement - allows installers to position the hanger where it works best during framing, reducing layout constraints and saving time on the job site
• Compatible with double 2-1/2 in. x 11-7/8 in. I-joists and 5-1/8 in. glulam members - purpose-built for engineered wood products commonly used in modern structural framing, so the fit is precise and the connection is secure
• 14-gauge steel construction - heavy-duty material thickness provides the load capacity and structural reliability required in applications where additional strength factors are specified
• G90 zinc galvanized coating - delivers extra corrosion resistance to help the hanger hold up in moisture-prone environments, extending the service life of the connection

Why This Product

• Engineered and tested for demanding structural applications - Simpson designs this hanger specifically for structures requiring additional strength and safety factors, giving builders and engineers confidence in every connection
• Broad compatibility with engineered lumber - supporting both double I-joist and glulam configurations, this hanger works across a range of engineered wood framing systems without requiring separate hardware for each member type
• Corrosion-resistant finish suited for challenging environments - the G90 galvanized coating goes beyond a basic protective finish, making this hanger a practical choice for projects where moisture exposure is a real concern
• Trusted by engineers and contractors - Simpson connectors are manufactured to rigorous quality standards and are a recognized choice for code-compliant construction, reducing approval uncertainty on professional projects

Specifications

• Model Number: HU5.125/12
• Gauge: 14
• Seat Depth: 2-1/2 in.
• Height: 10-1/4 in.
• Joist Size: Double 2-1/2 in. x 11-7/8 in. I-joist, 5-1/8 in. glulam
• Width: 5-1/4 in.
• Coating/Finish: Zinc Galvanized, G90
• Installation Fasteners: 0.162 in. x 3-1/2 in. nails in the header and 0.148 in. x 1-1/2 in. nails in the joist (sold separately)

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What joist sizes is the HU5.125/12 designed to support?

The HU5.125/12 is designed for double 2-1/2 in. x 11-7/8 in. I-joists as well as 5-1/8 in. glulam engineered wood members.

What type of nails should be used to install the HU5.125/12?

Install with 0.162 in. x 3-1/2 in. nails in the header and 0.148 in. x 1-1/2 in. nails in the joist for a proper, code-compliant connection.

What does the G90 galvanized coating provide?

The G90 zinc galvanized coating provides extra corrosion resistance, making the HU5.125/12 suitable for use in environments where moisture and corrosion are a concern.

What is the advantage of the "U" design on this joist hanger?

The "U" design allows for flexibility of placement on the header, giving installers more versatility when positioning the hanger during framing and construction.

Note: Product dimensions and/or fastener holes may differ from picture. Please see item description for specifications.
