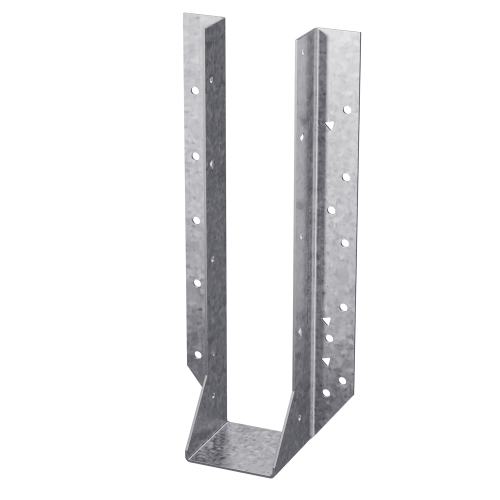

The Simpson Heavy Face-Mount Joist Hanger, Galvanized HU4.75/9 is a heavy-duty face-mount connector engineered by Simpson to meet the higher strength and safety factor requirements of demanding structural framing applications. Designed to attach directly to the face of a supporting beam or header, this joist hanger delivers reliable load transfer and a secure, precise connection for framing crews working on projects where standard hangers fall short.

Key Features

• Heavy-duty face-mount design - attaches directly to the face of the supporting beam or header, simplifying installation while providing a secure, structurally sound connection for joist framing.
• 14-gauge steel construction - thicker steel contributes to the heavy-duty classification, supporting greater load-bearing demands than lighter-gauge alternatives and giving builders added confidence in high-stress framing situations.
• Zinc Galvanized G90 coating - provides a protective barrier against rust and corrosion, extending the service life of the hanger in environments where moisture exposure is a concern.
• 4 3/4 in. width - sized to accommodate corresponding lumber dimensions, ensuring a snug, precise fit that minimizes movement and promotes consistent load transfer.
• 9 in. height with 2 1/2 in. seat depth - delivers ample bearing surface and seating depth to support stable joist placement and dependable performance across a range of structural framing configurations.

Why This Product

• Built for demanding framing applications - the heavy-duty designation means this face-mount hanger is engineered to meet higher strength and safety factor requirements, making it a dependable choice when standard connectors are not adequate for the job.
• Trusted Simpson quality made in the United States - produced by Simpson, a widely recognized name in structural connectors, giving contractors and builders assurance in the consistency and reliability of what they are installing.
• Corrosion-resistant finish for long-term durability - the Zinc Galvanized G90 coating helps protect the hanger from moisture-related deterioration, reducing the risk of premature failure in conditions where humidity or weather exposure is a factor.
• Straightforward face-mount installation - the face-mount design allows the hanger to be fastened directly to the header or beam face without complex setups, helping framing crews work efficiently and accurately on the job site.

Specifications

• Model No.: HU4.75/9
• Gauge (Ga.): 14
• Width W (in.): 4 3/4
• Height H (in.): 9
• Seat Depth: 2 1/2
• Coating/Material: Zinc Galvanized, G90
• Height: 9 in.
• Width: 4-3/4 in.
• Country of Origin: United States

Options

Contact us for Configurable Options and Special orders

Frequently Asked Questions

What type of mounting does the HU4.75/9 use?

The HU4.75/9 uses a face-mount design, meaning it attaches directly to the face of the supporting beam or header, providing a straightforward and secure installation method for joist framing.

What gauge steel is used in the HU4.75/9?

The HU4.75/9 is constructed from 14-gauge steel, which contributes to its heavy-duty classification and ability to meet higher strength and safety factor requirements.

What corrosion protection does the HU4.75/9 have?

The HU4.75/9 features a Zinc Galvanized G90 coating, which provides a protective layer against rust and corrosion, making it suitable for use in environments where moisture exposure is a concern.

Can the HU4.75/9 be used at an angle?

Some models in the HU series are available with a skewable seat and a seat that slopes up to 45 degrees, allowing for angled framing configurations..

Note: Product dimensions and/or fastener holes may differ from picture. Please see item description for specifications.
