The Simpson Double 3 x 8 Face-Mount Joist Hanger (HU38-2) is a heavy-duty connector built for framing applications where two 3 x 8 dimensional lumber members must be securely anchored in a face-mount configuration. Engineered by Simpson and made in the United States, this double joist hanger is designed to deliver reliable load transfer in demanding structural conditions, making it a go-to choice for contractors and builders working on decks, floor framing, and other load-bearing assemblies where a single hanger is not sufficient.

Key Features

• Double joist, face-mount design - supports two 3 x 8 lumber members in a single connector, reducing the need for multiple hangers and simplifying installation in high-load framing layouts
• 14-gauge steel construction - provides the rigidity and structural strength required for elevated load and safety requirements in residential and commercial framing projects
• G90 zinc galvanized coating - offers a high level of corrosion resistance, keeping the connector performing reliably when used with pressure-treated lumber or in moisture-exposed environments such as decks and crawl spaces
• Face-mount installation method - allows the hanger to attach directly to the face of a header or beam, enabling straightforward positioning and consistent fastener placement on the job site

Why This Product

• Built for two-member framing needs - the double-joist configuration handles applications where a single hanger falls short, giving builders a purpose-made solution for carrying paired 3 x 8 members without improvising connections
• Corrosion protection where it counts - the G90 zinc galvanized coating makes this hanger compatible with pressure-treated lumber and suitable for outdoor or high-moisture framing environments, helping the connection maintain its integrity over time
• Trusted Simpson engineering - produced by Simpson, a recognized name in structural connectors, this hanger is manufactured in the United States and reflects the consistent quality standards builders rely on for load-critical framing work
• Heavy-gauge strength for demanding structures - 14-gauge steel construction means this connector is engineered for structures with elevated strength and safety requirements, not just light-duty residential work

Specifications

• Model No.: HU38-2
• Gauge (Ga.): 14
• Width: 5 1/8
• Height: 5 13/16
• Seat Depth: 2 1/2
• Coating/Material: Zinc Galvanized, G90
• Country of Origin: United States

Options

Contact us for Configurable Options and Special orders

Frequently Asked Questions

What lumber size is the HU38-2 designed to support?

The HU38-2 is designed as a double joist hanger, configured to support two 3 x 8 dimensional lumber members in a face-mount installation.

What gauge steel is used in this joist hanger?

This hanger is manufactured from 14-gauge steel, providing the heavy-duty strength required for structures with elevated load and safety requirements.

What type of coating does the HU38-2 have, and why does it matter?

The HU38-2 features a G90 zinc galvanized coating, which provides a high level of corrosion resistance. This makes it well-suited for use with pressure-treated lumber and in environments where moisture exposure is a concern.

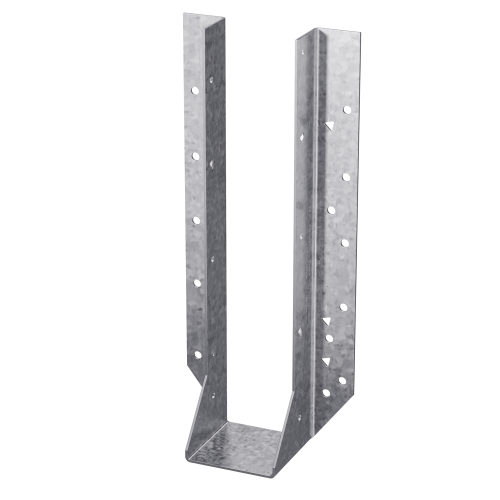

Note: Product dimensions and/or fastener holes may differ from picture. Please see item description for specifications.
