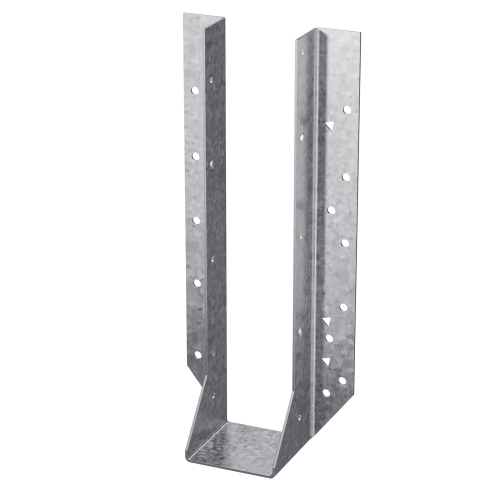

The Simpson HU216-3 Heavy-Duty Face-Mount Joist Hanger is a structural connector engineered by Simpson to deliver reliable, high-capacity support for triple 2x16 framing members in demanding construction applications. Built for projects where additional strength and safety factors are required, this heavy-duty hanger gives engineers and contractors a proven connection solution for floor framing, headers, and similar load-bearing assemblies where a secure face-mount attachment is critical.

Key Features

• "U" design allows for flexibility of placement on the header - lets installers position the hanger without being locked into a single spot, reducing layout errors and saving time on the job.
• Sized for a nominal triple 2x16 joist - purpose-built for heavy framing members, ensuring a snug, code-consistent fit without field modification.
• Manufactured from 14-gauge steel - the heavier steel construction translates directly to greater load capacity and long-term structural integrity under demanding conditions.
• G90 zinc galvanized coating - provides an elevated level of corrosion resistance compared to standard finishes, making this hanger suitable for environments where moisture exposure is a concern.

Why This Product

• Heavy-duty performance for large framing assemblies - designed specifically for triple 2x16 members, this face-mount hanger addresses high-load structural connections that lighter-duty hangers are not built to handle.
• Trusted engineering behind every connector - Simpson connectors are engineered and tested to perform, and manufactured to rigorous quality standards, giving builders confidence that each connection meets the demands of the structure.
• Flexible installation without sacrificing strength - the "U" design gives installers practical versatility when positioning on the header, so framing crews can work efficiently without compromising the integrity of the connection.
• Built-in corrosion protection for lasting durability - the G90 galvanized finish adds a meaningful layer of protection against rust and degradation, helping the hanger maintain its structural role over the life of the building.

Specifications

• Model Number: HU216-3
• Member Size: Triple 2x16
• Seat Depth: 2-1/2 in.
• Gauge: 14
• Coating/Finish: Zinc Galvanized, G90
• Width (W): 4-11/16 in.
• Height (H): 13-7/8 in.
• Install With: 0.162 in. x 3-1/2 in. nails in the header and 0.148 in. x 3 in. nails in the joist (sold separately)
• Country of Origin: United States

Options

• Contact us for Configurable Options and Special orders

Frequently Asked Questions

What joist size is the HU216-3 designed for?

The HU216-3 is designed for a nominal triple 2x16 joist, making it suitable for heavy-duty structural applications that require a strong, reliable face-mount connection.

What type of nails should be used to install the HU216-3?

Install with 0.162 in. x 3-1/2 in. nails in the header and 0.148 in. x 3 in. nails in the joist for a proper, code-compliant installation.

What gauge steel is the HU216-3 made from, and what corrosion protection does it have?

The HU216-3 is manufactured from 14-gauge steel and features a G90 zinc galvanized coating, providing enhanced corrosion resistance for long-lasting durability in demanding environments.

What is the benefit of the "U" design on the HU216-3?

The "U" design of the HU216-3 allows for flexibility of placement on the header, giving installers greater versatility and ease of positioning during construction.

Note: Product dimensions and/or fastener holes may differ from picture. Please see item description for specifications.
