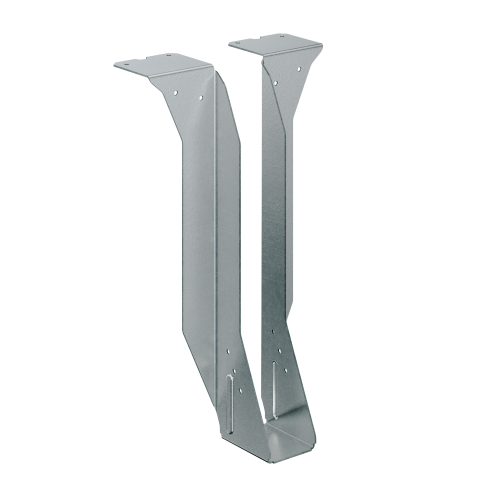

The Simpson Strong-Tie S/LBV3.38/6 is a high-capacity, top-flange hanger engineered for cold-formed steel framing systems that demand reliable, load-rated joist support. Built from 68 mil (14 ga.) steel with a G90 zinc galvanized finish, this hanger is designed to carry double 1-5/8 in. x 6 in. cold-formed steel joists and installs to either structural steel beams or cold-formed steel beams - giving contractors a versatile connection solution across a wide range of commercial and residential CFS applications. Precision forming and strict quality control deliver the dimensional accuracy required for proper bearing area and a secure, code-listed connection on every installation.

Key Features

• High-capacity, top-flange design with precision forming and quality control - delivers consistent dimensional accuracy and proper bearing area so every connection meets structural performance requirements without rework.
• Versatile attachment compatibility - attaches to cold-formed steel members with screws or to structural steel with powder-actuated fasteners or welds, giving installers flexibility across different beam types on the same jobsite.
• Sized specifically for double cold-formed steel joists (1-5/8 in. x 6 in.) - purpose-built fit eliminates guesswork and helps ensure a secure, properly bearing connection for paired CFS joists.
• Made from 68 mil (14 ga.) steel - heavy-gauge construction supports high-load CFS framing applications where thinner connectors would fall short.
• Galvanized G90 zinc coating - provides corrosion resistance suited to the demands of long-term structural installations.
• Load-rated, tested, and code listed - gives engineers, inspectors, and contractors confidence that the connector meets recognized performance and compliance standards.

Why This Product

• Built for high-demand CFS framing - this is a high-capacity hanger manufactured to exacting tolerances, making it a dependable choice when double cold-formed steel joists need a connection that holds up under load.
• One hanger, multiple beam types - compatibility with both cold-formed steel members (screw-fastened) and structural steel beams (powder-actuated fasteners or welds) means fewer SKUs to manage and greater flexibility on complex projects.
• Code-listed and load-rated out of the box - because the S/LBV3.38/6 is tested and code listed, it simplifies the approval process for engineers and inspectors without requiring additional documentation from the installer.
• Corrosion-resistant G90 galvanized finish - the zinc galvanized coating is built into the product at the factory, so the hanger arrives ready for installation without any additional field treatment needed for corrosion protection.

Specifications

• Manufacturer Part Number (MPN): S/LBV3.38/6
• Brand: Simpson Strong-Tie
• Member Size: (2) 1-5/8 in. x 6 in.
• Gauge: 14 ga.
• Thickness: 68 mil
• Width (W): 3-3/8 in.
• Height (H): 6 in.
• Coating / Finish: Zinc Galvanized, G90
• Hanger Type: Top-Flange, High-Capacity
• Installation Fasteners: Fasteners may vary by application; refer to Simpson Strong-Tie catalog or strongtie.com (sold separately)
• Country of Origin: United States

Approved Applications

The S/LBV3.38/6 hanger is designed for use in cold-formed steel framing systems where high-capacity joist support is required. Typical applications include:

• Supporting double cold-formed steel joists (1-5/8 in. x 6 in.) in commercial and residential CFS construction.
• Attaching to structural steel beams using powder-actuated fasteners or welds.
• Attaching to cold-formed steel beams using screws in a wide variety of CFS framing configurations.
• Projects requiring load-rated, code-listed connectors that meet structural performance requirements.

What's Included

• (1) Simpson Strong-Tie S/LBV3.38/6 Joist Hanger

Note: Fasteners are not included. Fasteners may vary by application; refer to the Simpson Strong-Tie catalog or strongtie.com for fastener specifications.

Options

• Can be skewed to a maximum of 45 deg. - Contact us for Customizations / Special orders

Frequently Asked Questions

What joist size is the S/LBV3.38/6 designed to support?

This hanger is designed specifically for double cold-formed steel joists measuring 1-5/8 in. in width and 6 in. in height - that is, (2) 1-5/8 in. x 6 in. cold-formed steel joists seated side by side.

What types of beams can this hanger attach to?

The S/LBV3.38/6 can attach to either cold-formed steel beams or structural steel beams. When connecting to cold-formed steel members, screws are used. When connecting to structural steel, the hanger can be fastened with powder-actuated fasteners or welds.

What material and finish is this hanger made from?

The hanger is manufactured from 68 mil (14-gauge) steel and features a G90 zinc galvanized finish, which provides corrosion resistance in demanding environments.

Is the S/LBV3.38/6 load-rated and approved for use under building codes?

Yes. The S/LBV3.38/6 is load-rated, tested, and code listed, meaning its performance has been verified through testing and it meets the requirements for code-compliant cold-formed steel framing applications.
