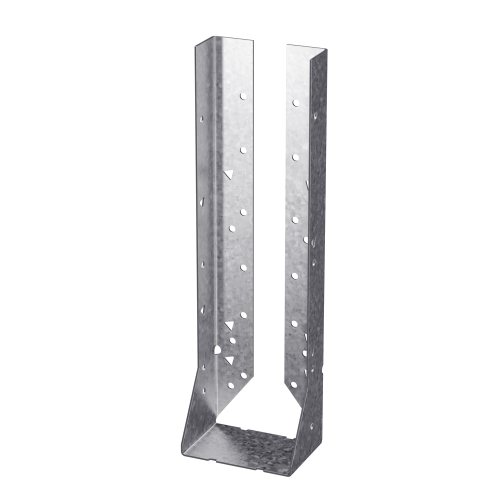

The Simpson 4-1/8 x 9-1/2 Concealed-Flange Heavy Face-Mount Hanger is a heavy-duty joist and beam connector built for structures requiring additional strength and higher safety factors. Its concealed header flanges keep mounting hardware hidden from view, making it equally well-suited for exposed architectural framing where clean visible lines matter as much as structural performance. Whether the application is residential or commercial construction, this face-mount hanger delivers the load capacity and finished appearance that demanding projects require.

Key Features

• Concealed Header Flanges - Hide the mounting flanges from sight so exposed framing maintains clean, finished visible lines without sacrificing connection strength.
• Heavy Face-Mount Design - Engineered specifically for structures requiring additional strength and higher safety factors, going beyond what standard joist hangers provide in demanding residential and commercial applications.
• 14-Gauge (68 mil) Galvanized Steel Construction - Heavy-gauge material delivers the rigidity and corrosion resistance needed for long-term performance in structural connections.
• Configurable Seat Options - Select models can be configured with a skewable seat or a seat that slopes up to 45 deg., giving builders flexibility for non-standard framing angles without sourcing a different connector.
• Precise 4-1/8 x 9-1/2 Joist Fit - Dimensioned specifically for 4-1/8 x 9-1/2 in. joist members, ensuring a secure, properly seated connection with no field modification required.

Why This Product

• Aesthetics and strength in one connector - The concealed-flange design is purpose-built for exposed framing conditions where visible hardware would detract from the finished look, eliminating the need to choose between appearance and structural integrity.
• Built for elevated load demands - Rated for structures requiring additional strength and higher safety factors, this heavy face-mount hanger is a reliable choice when standard connectors are not sufficient for the application.
• Adaptable to complex framing geometry - The ability to configure a sloped or skewed seat connection on select models makes this hanger a practical solution for projects involving angled or non-standard joist installations.
• Consistent, quality-controlled manufacturing - Produced in the United States under Simpson quality standards, buyers receive a connector that meets the dimensional and material specifications published for this model.

Specifications

• Model Number: HUC4.28/9
• Description: 4-1/8 x 9-1/2 HUC Heavy Concealed-Flange Face-Mount Joist Hanger
• Finish: Galvanized
• Material / Gauge: 14 ga. (68 mil)
• Mount Type: Face-Mount
• Flange Style: Concealed-Flange
• Joist Size: 4-1/8 x 9-1/2
• Height: 9 in.
• Width: 4-9/32 in.
• Seat Depth: 2-1/2 in.
• Country of Origin: United States

Approved Applications

• Structures requiring additional strength and higher safety factors
• Exposed framing conditions where concealed flanges provide cleaner visible lines
• Heavy-duty joist and beam connections in residential and commercial construction
• Applications where a sloped or skewed seat connection may be required (configurable - for options)

Configurable Options & Special Orders

Some models of this heavy-duty hanger can be configured with a skewable seat and a seat that slopes up to 45 degrees. For configurable options and special orders, please .

Frequently Asked Questions

What size joist is the HUC4.28/9 designed to support?

The HUC4.28/9 is designed for joist members measuring 4-1/8 x 9-1/2 inches.

What gauge steel is used in this hanger?

This hanger is constructed from 14-gauge (68 mil) galvanized steel, classifying it as a heavy-duty connector.

What is the benefit of the concealed-flange design?

The concealed header flanges hide the mounting flanges from sight, providing cleaner visible lines in exposed framing and architectural applications where appearance matters alongside structural performance.

Where is the HUC4.28/9 manufactured?

This product is manufactured in the United States.

Note: Product dimensions and/or nail holes may differ from picture. Please see the item description for specifications.
