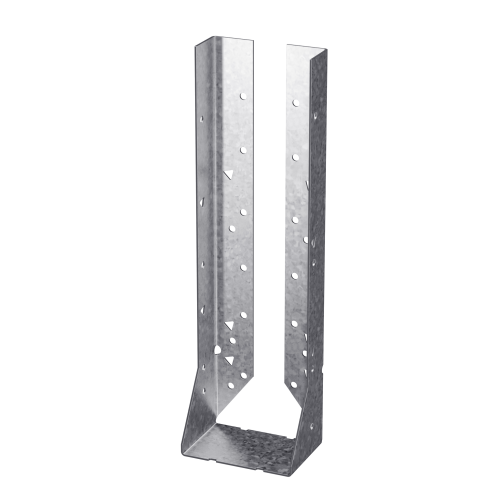

The Simpson Concealed-Flange Heavy Face Mount Hanger 2-5/16 x 16 is a professional-grade joist hanger built for structural framing connections that demand additional strength and elevated safety factors. Designed as a heavy face-mount I-joist hanger, it features concealed header flanges that keep hardware visually unobtrusive - making it a practical choice for exposed timber framing, heavy joist-to-header connections, and demanding residential or commercial construction applications alike.

Key Features

• Concealed Header Flanges - Flanges sit against the header in a way that minimizes their visibility, delivering cleaner, unobtrusive lines in exposed framing conditions where appearance matters alongside structural performance.
• Heavy Face-Mount Configuration - Designed specifically for applications where face-mount installation is required or preferred, providing a secure, load-bearing connection between joists and headers or beams in both residential and commercial construction.
• 14 ga. (68 mil) Steel Construction - The heavy-duty gauge steel provides the structural integrity needed for high-load connections, giving builders and engineers confidence in demanding framing applications.
• Galvanized Finish - Offers corrosion resistance suitable for a wide range of construction environments, helping the hanger maintain performance over the life of the structure.
• Domestic Manufacturing - Produced in the United States, supporting consistent quality standards expected in professional structural framing work.
• Configurable Options Available - Compatible with configurable variants that include a skewable seat and a seat that slopes up to 45 deg., giving contractors flexibility to adapt the connection to non-standard framing conditions.

Why This Product

• Aesthetics and strength in one hanger - The concealed-flange design addresses a common challenge in exposed timber framing: the concealed header flanges reduce visible hardware bulk so structural connections do not compromise the finished appearance of the framing.
• Engineered for demanding load situations - As a heavy face-mount hanger fabricated from 14 ga. (68 mil) steel, this product is approved for structural framing connections requiring additional strength and elevated safety factors - going beyond what a standard-duty hanger provides.
• Versatile across residential and commercial projects - Approved applications span heavy-duty joist-to-header and joist-to-beam connections in both residential and commercial construction, making this hanger a dependable single solution across a variety of project types.
• Adaptable to complex framing geometry - With configurable options that include a skewable seat and sloped seat up to 45 deg., the hanger can accommodate non-standard angles and conditions without requiring custom fabrication.

Specifications

• Specification: Detail
• Model Number: HUC3516/22
• Description: 2-5/16 x 16 HUC Heavy Concealed-Flange Face-Mount Joist Hanger
• Material: 14 ga. (68 mil) steel
• Finish: Galvanized
• Hanger Type: Heavy Face-Mount
• Flange Style: Concealed Header Flanges
• Seat Depth: 2-1/2 in.
• Height: 14-1/4 in.
• Width: 2-3/8 in.
• Country of Origin: United States

Approved Applications

• Structural framing connections requiring additional strength and safety factors
• Exposed timber and beam framing where concealed flanges provide cleaner aesthetics
• Heavy-duty joist-to-header or joist-to-beam connections in residential and commercial construction
• Applications where face-mount installation is required or preferred

Options

Configurable options are available for this hanger, including models that can be configured with a skewable seat and a seat that slopes up to 45 degrees. Contact us for configurable options.

Frequently Asked Questions

What gauge steel is the HUC3516/22 made from?

The HUC3516/22 is fabricated from 14 ga. (68 mil) steel, providing the heavy-duty strength required for high-load structural connections.

What does "concealed-flange" mean on this hanger?

Concealed header flanges are designed so that the flange sits against the header in a way that minimizes its visibility, providing cleaner visible lines in exposed framing or timber applications.

What finish does the HUC3516/22 have?

This hanger features a galvanized finish, offering corrosion resistance suitable for a wide range of construction environments.

Where is the HUC3516/22 manufactured?

The HUC3516/22 is manufactured in the United States.

Note: Product dimensions and/or nail holes may differ from picture. Please see the item description and Spec Sheet for specifications.
