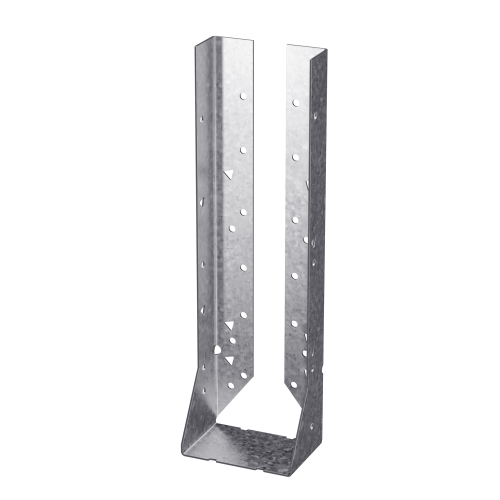

The Simpson 3 x 16 Concealed-Flange Heavy Face-Mount Hanger HUC316 is a heavy-duty joist hanger engineered by Simpson for structural framing applications that call for additional strength and safety factors beyond what standard hangers provide. Its concealed header flanges set it apart in exposed framing situations, delivering secure joist-to-header connections without sacrificing clean, unobtrusive visible lines where the framing remains in view.

Key Features

• Concealed header flanges - keep visible framing lines clean and tidy, making this hanger a practical choice for exposed framing conditions where appearance and structural integrity both matter
• Heavy face-mount configuration - provides a dependable joist-to-header connection designed to handle demanding loads, giving builders confidence in applications that require extra strength and safety margins
• 14 ga. (68 mil) steel construction - delivers the heavy-duty durability needed for robust framing connections, supporting the additional load requirements this hanger is engineered to meet
• Galvanized finish - adds a layer of corrosion resistance to help protect the hanger in challenging environments and extend the long-term reliability of the connection
• Sized for 3x16 dimensional lumber - purpose-built to accommodate larger framing members, making it well suited for heavy structural assemblies where standard hanger sizes fall short

Why This Product

• Built for demanding structural work - engineered specifically for framing applications requiring additional strength and safety factors, this heavy face-mount hanger is a dependable solution when standard hangers are not sufficient for the load at hand
• Aesthetics meet structural performance - the concealed header flange design allows contractors and builders to maintain clean sight lines in exposed framing scenarios without compromising the integrity of the joist-to-header connection
• Trusted Simpson quality - produced by Simpson, a recognized name in structural connectors, the HUC316 reflects the engineering standards builders rely on for critical framing connections
• Made in the United States - domestic production supports consistent manufacturing quality, giving buyers added assurance in the reliability of each connector

Specifications

• Model Number: HUC316
• Description: 3x16 HUC Heavy Concealed-Flange Face-Mount Joist Hanger
• Material: 14 ga. (68 mil) steel
• Finish: Galvanized
• Height: 14-3/16 in.
• Width: 2-9/16 in.
• Seat Depth: 2-1/2 in.
• Country of Origin: United States

Options

Contact us for Configurable Options and Special orders

Frequently Asked Questions

What type of lumber does the HUC316 accommodate?

The HUC316 is designed to accommodate 3x16 dimensional lumber, making it suitable for heavy framing applications that require a robust joist-to-header connection.

Why does the HUC316 use concealed header flanges?

The concealed header flanges are designed to provide cleaner visible lines in exposed framing conditions, allowing the hanger to perform structurally while maintaining a tidier appearance where the framing remains visible.

What gauge steel is used in the construction of the HUC316?

The HUC316 is constructed from 14 ga. (68 mil) steel, which contributes to its heavy-duty load capacity and suitability for structures requiring additional strength and safety factors.

What finish does the HUC316 have, and why does it matter?

The HUC316 features a galvanized finish, which provides a layer of corrosion resistance to help protect the hanger in demanding environments and extend the service life of the connection.

Note: Product dimensions and/or nail holes may differ from picture. Please see item description and Spec Sheet for specifications.
