Product Description

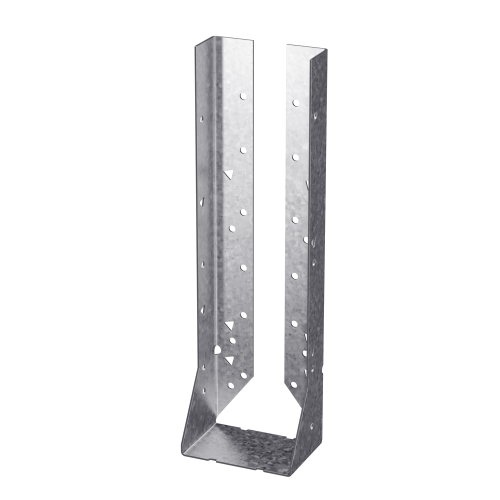

The Simpson 2-1/2 x 14 Concealed-Flange Heavy Face-Mount Hanger HUC314 is a heavy-duty face-mount joist hanger from Simpson engineered for structural connections that demand additional strength and safety factors. Designed to accommodate a 2-1/2 x 14 framing member, this hanger is built for demanding load applications in residential and commercial construction, where both structural integrity and a clean finished appearance are priorities.
Key Features
- Heavy-duty face-mount design - engineered for structures requiring additional strength and safety factors, giving builders confidence in high-load framing connections
- Concealed header flanges - hide behind the header to deliver cleaner, more visually appealing lines in exposed framing conditions where appearance matters
- 14-gauge (68 mil) steel construction - provides the material thickness and rigidity needed to handle demanding structural loads that lighter-gauge hangers cannot support
- Galvanized finish - offers corrosion resistance to help preserve the hanger's structural integrity in moisture-prone environments
- Sized for a 2-1/2 x 14 member - the hanger's geometry is purpose-built for this specific joist or beam dimension, ensuring a precise, secure fit without field modification
Why This Product
- Built for high-demand structural applications - the heavy face-mount configuration and 14-gauge (68 mil) steel make this hanger appropriate where standard light-gauge connectors fall short on load requirements
- Aesthetics meet structural performance - the concealed-flange design keeps mounting hardware out of sight, making this hanger a practical choice for exposed framing in finished or semi-finished spaces
- A trusted name in structural connectors - Simpson is a widely recognized brand in engineered connectors, and the HUC314 reflects that commitment to precision-engineered, code-compliant framing hardware
- Domestic production - the HUC314 is a product of the United States, which appeals to buyers with project specifications or preferences favoring domestically produced structural components
Specifications
- Model Number: HUC314
- Description: 2-1/2x14 HUC Heavy Concealed-Flange Face-Mount Joist Hanger
- Finish: Galvanized
- Material: 14 ga. (68 mil)
- Height: 12-7/16 in.
- Width: 2-9/16 in.
- Seat Depth: 2-1/2 in.
- Country of Origin: United States
Options
Contact us for Configurable Options and Special orders
Frequently Asked Questions
- What makes the HUC314 different from a standard joist hanger?
- The HUC314 is a heavy-duty hanger built from 14-gauge (68 mil) steel, designed for structures requiring additional strength and safety factors beyond what a standard light-gauge hanger provides.
- What is the benefit of the concealed-flange design?
- The concealed header flanges hide the hanger's mounting flanges behind the header, resulting in cleaner, more visually appealing lines in exposed framing or finish conditions.
- What beam or joist size does the HUC314 accommodate?
- The HUC314 is sized to accommodate a 2-1/2 x 14 member, as indicated by its model designation.
Note: Product dimensions and/or nail holes may differ from picture. Please see item description and Spec Sheet for specifications.
