Product Description

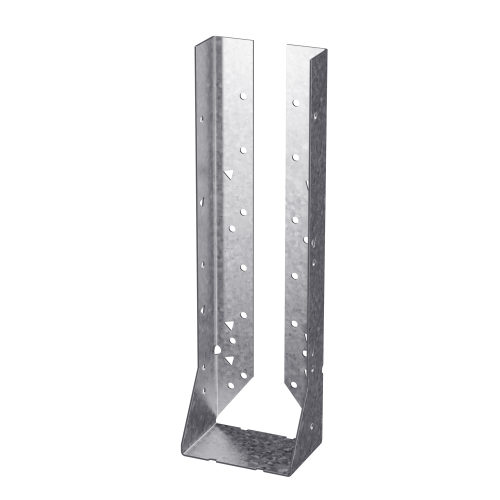

The Simpson Double 2 x 16 Concealed-Flange Heavy Face-Mount Hanger HUC216-2 is a heavy-duty structural connector from Simpson built for framing assemblies that demand a stronger, more reliable connection than standard joist hangers can provide. Designed to support a double 2x16 member, this face-mount hanger is a practical solution for heavier structural loads where both connection integrity and a clean finished appearance matter.
Key Features
- Concealed header flanges - remain hidden once installed, producing clean, professional visible lines that are well-suited to exposed framing conditions where aesthetics cannot be compromised
- Heavy-duty HUC series construction - engineered for structures requiring additional strength and higher safety factors, making it a step up from lighter-duty connector options
- Face-mount installation style - attaches directly to the header face, simplifying alignment and fastening during framing
- 14-gauge steel construction - delivers a notably more robust connection than lighter-gauge alternatives, providing confidence in demanding structural applications
- Galvanized finish - provides corrosion resistance to help maintain connection performance over time in typical framing environments
- Sized for double 2x16 supported members - purpose-built dimensions ensure a precise, secure fit for heavier lumber assemblies without field modification
Why This Product
- Built for demanding loads - the HUC series is specifically designed for structures requiring additional strength and higher safety factors, making this hanger a dependable choice when a standard connector is not enough
- Cleaner results in visible framing - the concealed-flange design keeps header connections out of sight, delivering a more finished look in open or exposed structural assemblies without sacrificing load capacity
- Precise fit for heavy lumber combinations - purpose-built to accept a double 2x16 member, this hanger eliminates guesswork and reduces the risk of misfit connections in heavier framing systems
- Trusted Simpson engineering - this connector comes from Simpson, a brand widely recognized among contractors and builders for structural connector quality and consistency
Specifications
- Model Number: HUC216-2
- Description: Double 2x16 HUC Heavy Concealed-Flange Face-Mount Joist Hanger
- Material: 14 ga. (68 mil) steel
- Finish: Galvanized
- Height: 13-7/8 in.
- Width: 3-1/8 in.
- Seat Depth: 2-1/2 in.
- Country of Origin: United States
Frequently Asked Questions
- What makes the HUC216-2 different from a standard joist hanger?
- The HUC216-2 belongs to Simpson Strong-Tie's heavy-duty HUC series, which is specifically designed for structures requiring additional strength and higher safety factors compared to standard joist hangers. Its 14-gauge (68 mil) steel construction provides a notably more robust connection than lighter-gauge alternatives.
- What does "concealed-flange" mean on this hanger?
- Concealed-flange refers to the design of the header flanges, which are hidden from view once the hanger is installed. This results in cleaner, more finished visible lines - making the HUC216-2 an excellent choice for exposed framing conditions where the appearance of the structural connection matters.
- What lumber size is the HUC216-2 designed to support?
- The HUC216-2 is specifically sized to accommodate a double 2x16 supported member, making it suited for heavier framing assemblies that require wider, deeper lumber connections.
- Can the seat of the HUC216-2 be configured for angled or sloped installations?
- Contact us
Note: Product dimensions and/or nail holes may differ from picture. Please see item description and Spec Sheet for specifications.
