Product Description

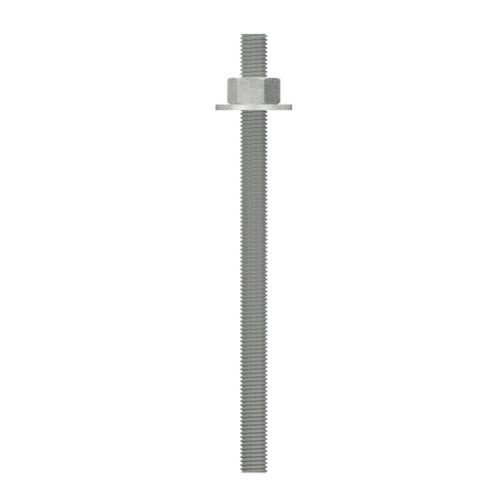

Simpson Strong-Tie RFB 5/8 in. x 12 in. Hot-Dip Galvanized Retrofit Bolt is a precision-engineered anchoring solution from Simpson Strong-Tie, designed to anchor into existing concrete and masonry when used with Simpson Strong-Tie adhesives. This precut threaded rod is supplied complete with nut and washer, and features end-stamping with rod length in inches along with color-coding that indicates the grade or type of steel - enabling quick and easy identification after installation. For diameters of 1/2 in. and larger, the distinctive No-Equal symbol is also stamped on each end. When paired with a compatible Simpson Strong-Tie adhesive, the RFB delivers a complete engineered anchoring system capable of handling both tension and shear loads.
Key Features
- Provides both tension and shear loads in connections
- Coarse thread type for reliable engagement in adhesive anchoring applications

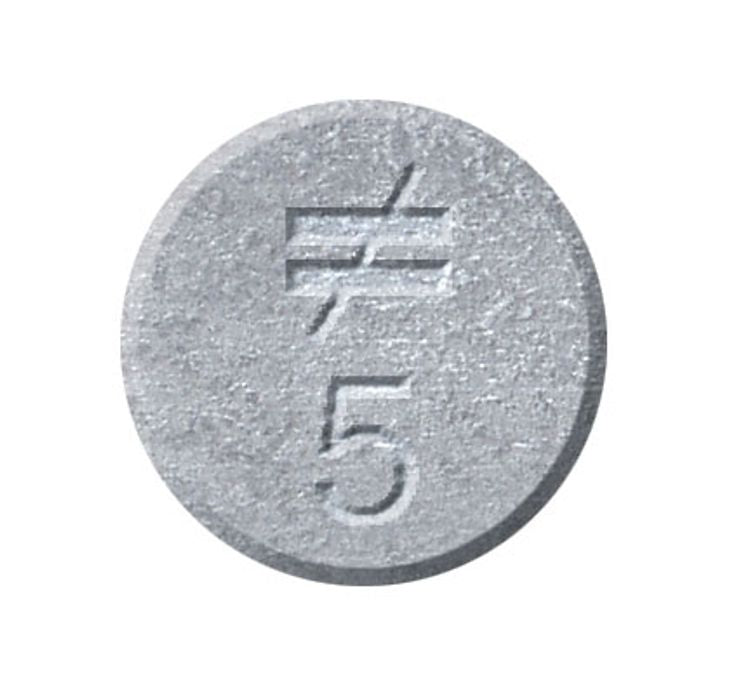

- Each end stamped with rod length in inches for easy post-installation identification
- Color-coded to indicate the grade or type of steel
- No-Equal symbol stamped on rod ends (for 1/2 in. diameter and larger)
- Hot-dip galvanized finish for corrosion resistance
- Supplied with nut and washer included
- Designed as part of a complete engineered anchoring system when used with Simpson Strong-Tie adhesives
Specifications
- Manufacturer Part Number (MPN): RFB#5X12HDGP2
- Brand: Simpson Strong-Tie
- Diameter: 5/8 in.
- Bolt Length: 12 in.
- Thread Type: Coarse
- Coating: Hot-Dip Galvanized
- Finish: Hot-Dip Galvanized
- Country of Origin: United States
Approved Applications
- Anchoring into existing concrete when used with Simpson Strong-Tie adhesives
- Anchoring into existing masonry when used with Simpson Strong-Tie adhesives
- Connections requiring both tension and shear load resistance
What's Included
Sold as packs of (2) Hot-Dip Galvanized Retrofit Bolts, Precut hot-dip galvanized threaded rod (5/8 in. x 12 in.), Nut, Washer.
Frequently Asked Questions
- What type of base materials can the RFB Retrofit Bolt be used to anchor into?
- The Simpson Strong-Tie RFB Retrofit Bolt is designed to anchor into existing concrete and masonry when used with a compatible Simpson Strong-Tie anchoring adhesive.
- How can the RFB Retrofit Bolt be identified after installation?
- Each end of the threaded rod is stamped with the rod length in inches and is color-coded to indicate the grade or type of steel, enabling quick and easy identification post-installation. For 1/2 in. diameters and larger, the distinctive No-Equal symbol is also stamped on the rod ends.
- What type of loads does the RFB Retrofit Bolt support?
- The RFB Retrofit Bolt is engineered to provide resistance to both tension and shear loads in anchoring connections, making it suitable for structurally demanding applications.
- Does the RFB Retrofit Bolt need to be used with an adhesive?
- Yes. The RFB Retrofit Bolt is intended for use with Simpson Strong-Tie adhesives. When combined with a compatible Simpson Strong-Tie adhesive, the RFB forms a complete engineered anchoring system.
Note: Product dimensions and/or length may differ from picture. Please see the item description above for specifications.
