BN Products-USA Diamond Rebar Cutter/Bender Combination Kit for #8 Grade 60 Rebar delivers professional-grade cutting and bending capability in a single, integrated unit built for demanding concrete construction work. By mounting the DBD-25H rebar bender and DC-25X rebar cutter together on a heavy-duty stationary stand, this combo kit eliminates the need to move between separate machines - saving time and labor on rebar-intensive projects. Whether you are working on a fixed job site or need portable cutting capability, this combination unit adapts to both scenarios with ease.

Key Features

• Handles up to #8 Grade 60 rebar for both cutting and bending - tackles the heavy-gauge rebar common in structural concrete work, including footings, columns, and slabs.
• Hydraulic shear cutting for #8/25mm Grade 60 rebar - delivers clean, precise cuts through high-strength rebar without the vibration or sparks associated with abrasive cutting methods.

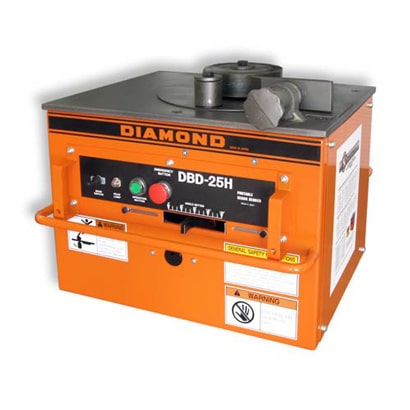

• Bending range of 0-180 deg. - covers the full range of standard construction bend angles, from gentle curves to complete 180 deg. U-bends, in a single machine.
• Two angle locks for repeat bends - allows crews to dial in a specific angle and reproduce it consistently across dozens or hundreds of pieces, improving accuracy and reducing rework.

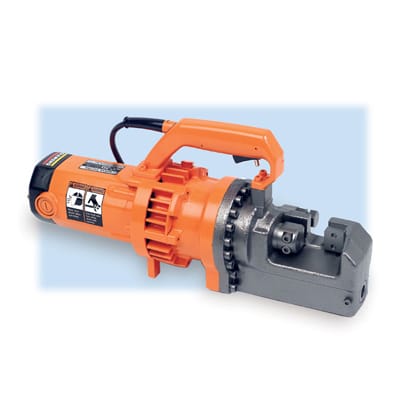

• DC-25X cutter is fully removable from the stand - when portability is needed, the cutter detaches for use at remote locations, then locks back into the stand for stationary foot-pedal operation.
• Foot pedal switch controls both tools hands-free - keeps the operator's hands free to position and guide rebar safely, reducing fatigue and improving throughput on repetitive tasks.
• Both tools mount as a single integrated unit - one stand, one power setup, and one footprint on the job site replaces two separate machines, reducing equipment clutter and setup time.

Why This Product

• Two machines in one stand - contractors who need both cutting and bending on the same project no longer have to purchase, transport, or maintain two separate rebar tools. The DBC-25H combines the DC-25X cutter and DBD-25H bender into one unit that occupies a single footprint.
• Flexible deployment - stationary or portable - the DC-25X cutter can be removed and taken to locations where the full stand cannot go, then returned to the stand for foot-pedal-controlled stationary operation. This dual-mode capability makes the combo kit useful across a wider range of job site conditions.
• Repeat-bend accuracy with two angle locks - production rebar work demands consistency. The two built-in angle locks let operators set a target angle and replicate it exactly, cut after cut, without re-measuring - supporting ACI 318-05 compliance for structural bends.
• Hands-free foot pedal operation for both tools - operating both the bender and cutter via foot pedal means the operator keeps both hands on the rebar at all times, improving both safety and efficiency during high-volume fabrication.

Specifications

• Model Number: DBC-25H
• Brand: BN Products-USA, LLC
• Bender Model: DBD-25H
• Cutter Model: DC-25X
• Rebar Capacity: Up to #8 (25mm) Grade 60 rebar
• Bending Range: 0-180 deg.
• Angle Locks: Two angle locks for repeat bends
• Weight: 275 lbs.

Frequently Asked Questions

Can the rebar cutter be used separately from the stand?

Yes. The DC-25X rebar cutter can be removed from the combination stand and used as a standalone portable cutter for applications where the full unit cannot be brought on site. It can also be locked back into the stationary position on the stand for foot-pedal-controlled operation.

What rebar size and grade does the DBC-25H handle?

The DBC-25H combination kit handles up to #8 (25mm) Grade 60 rebar for both cutting and bending operations. This covers the heavy-gauge structural rebar used in most commercial and residential concrete construction applications.

How do the two angle locks work on the bender?

The DBD-25H bender includes two angle locks that allow the operator to set a specific target bend angle and then repeat that angle consistently across multiple pieces of rebar. This is especially useful during production fabrication where the same bend must be reproduced accurately many times in succession.

How is the DBC-25H operated - does it require hands on the controls?

Both the bender and the cutter are operated hands-free using a foot pedal switch. This allows the operator to use both hands to position and support the rebar while triggering the cutting or bending cycle with a foot pedal, improving both safety and workflow efficiency.
