Product Description

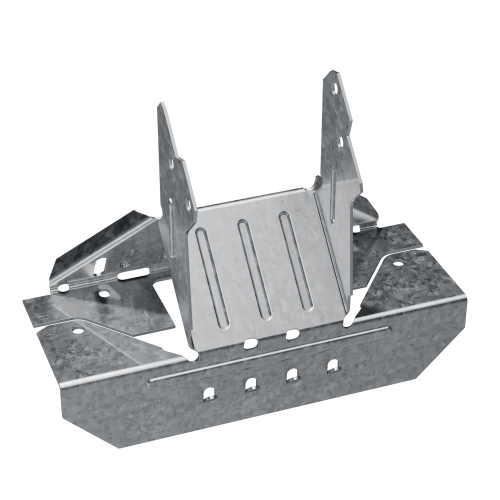

The Simpson VPA35 2-1/4" Joist Variable Pitch Connector from Simpson is a field-adjustable galvanized connector engineered to simplify roof framing by attaching joists and rafters to the top plate without the hassle of extra cuts or complex nailing techniques. Covering a wide range of roof pitches directly on the job site, this connector is a practical solution for framing crews who need reliable performance and installation flexibility across varying roof slopes.
Key Features
- Field-adjustable pitch range from 3:12 to 12:12 - slopes on site to match virtually any common roof pitch, eliminating guesswork and reducing material waste during framing.
- Eliminates notched rafters, beveled top plates, and toe nailing - cuts out time-consuming prep work so installation moves faster with fewer steps and less skilled labor required per connection.
- 18-gauge steel construction with Zinc Galvanized G90 coating - delivers the structural rigidity and corrosion resistance needed for framing applications where moisture exposure is a concern.
- Designed for 2-1/4 in. joist width - sized precisely for dimensional lumber common in residential and light commercial roof framing, ensuring a secure, flush fit without modification.
- Compatible with LSSR and LSSJ connectors - works as part of a coordinated framing connector system, giving builders a consistent, integrated approach from ridge to plate.
Why This Product
- One connector handles a wide slope range - because the VPA35 adjusts in the field to cover pitches from 3:12 to 12:12, framing crews can use a single connector type across multiple roof sections rather than stocking separate hardware for each pitch condition.
- Fewer installation steps mean faster job completion - by removing the need for notched rafters, beveled top plates, and toe nailing, this rafter connector reduces the number of operations per connection point, which adds up to meaningful time savings on larger framing projects.
- American-made quality backed by Simpson engineering - produced domestically by Simpson, a name recognized throughout the structural connector industry, the VPA35 is built to consistent manufacturing standards that contractors depend on for code-compliant framing work.
- Corrosion-resistant finish for lasting performance - the Zinc Galvanized G90 coating provides a protective barrier suitable for typical framing environments, helping the connector maintain its integrity over the long life of the structure.
Specifications
- Model Number: VPA35
- Joist Width: 2-1/4 in.
- Gauge: 18
- W: 2-5/6 in.
- Coating/Material: Zinc Galvanized, G90
- Fasteners - Carrying Member: 0.148" x 3" Nails
- Fasteners - Carried Member: 0.148" x 1-1/2" Nails
- Country of Origin: United States
Note: Product dimensions may differ from picture. Please see the item description above for specifications.
Frequently Asked Questions
What roof slope range does the VPA35 accommodate?
The VPA35 adjusts in the field to accommodate slopes between 3:12 and 12:12, making it suitable for a wide variety of roof pitches without additional cutting or modification.
Does the VPA35 require notched rafters or beveled top plates?
No. The VPA35 is specifically designed to eliminate the need for notched rafters, beveled top plates, and toe nailing, simplifying the installation process significantly.
What fasteners are required to install the VPA35?
Installation requires 0.148" x 3" nails for the carrying member and 0.148" x 1-1/2" nails for the carried member.
What coating does the VPA35 have, and why does it matter?
The VPA35 features a Zinc Galvanized G90 coating, which provides corrosion resistance suitable for typical framing environments where moisture exposure is a concern.
