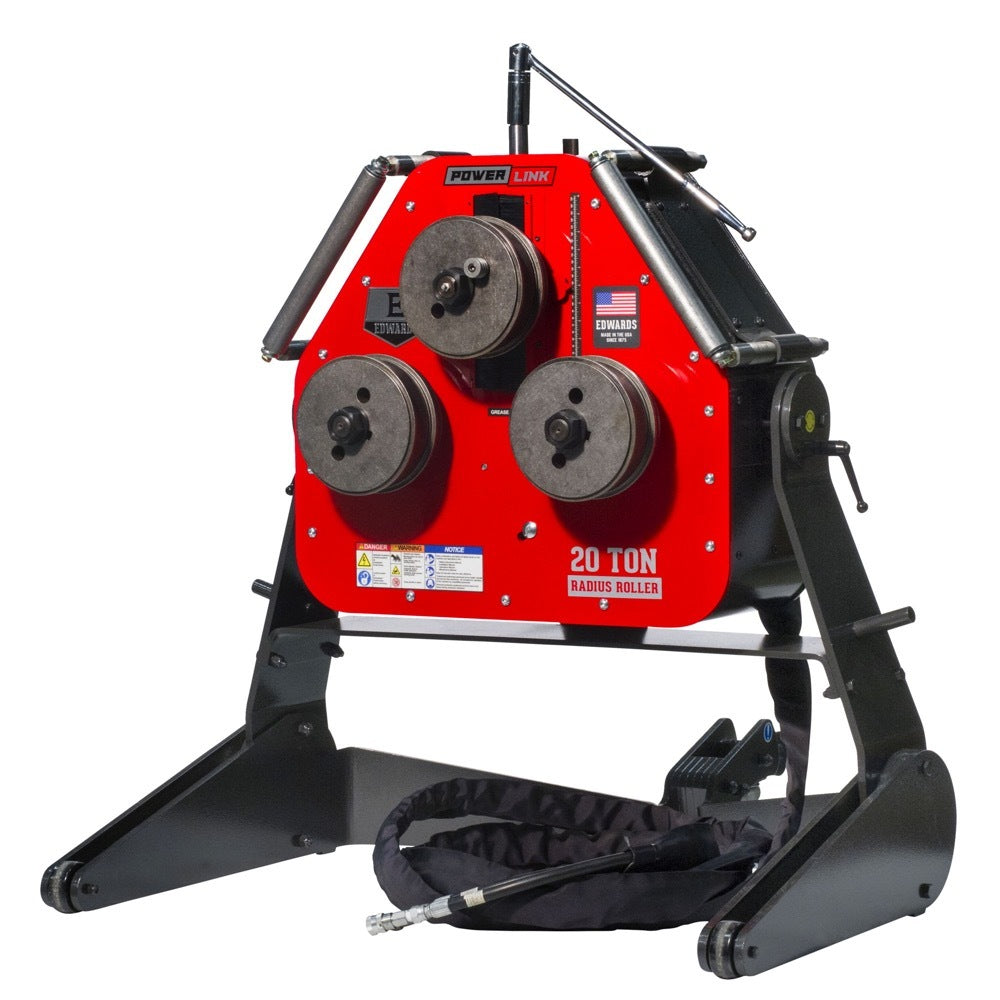

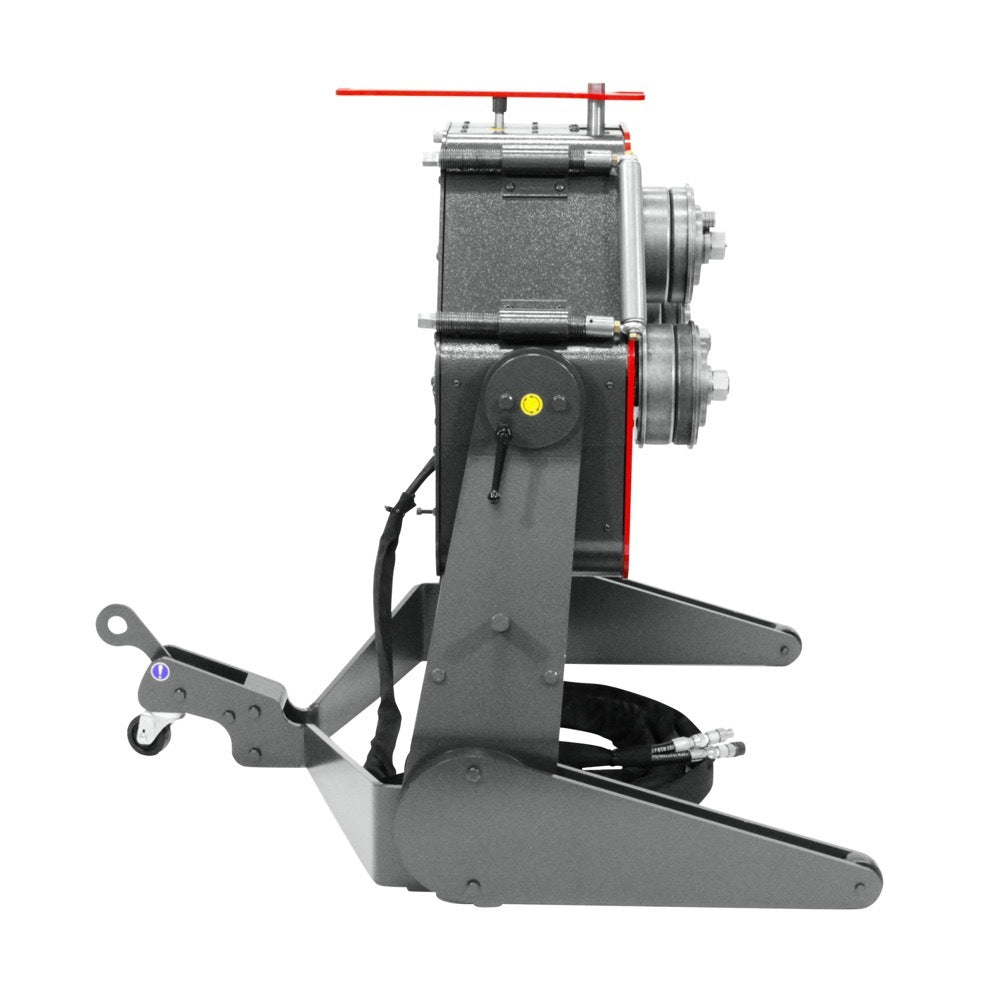

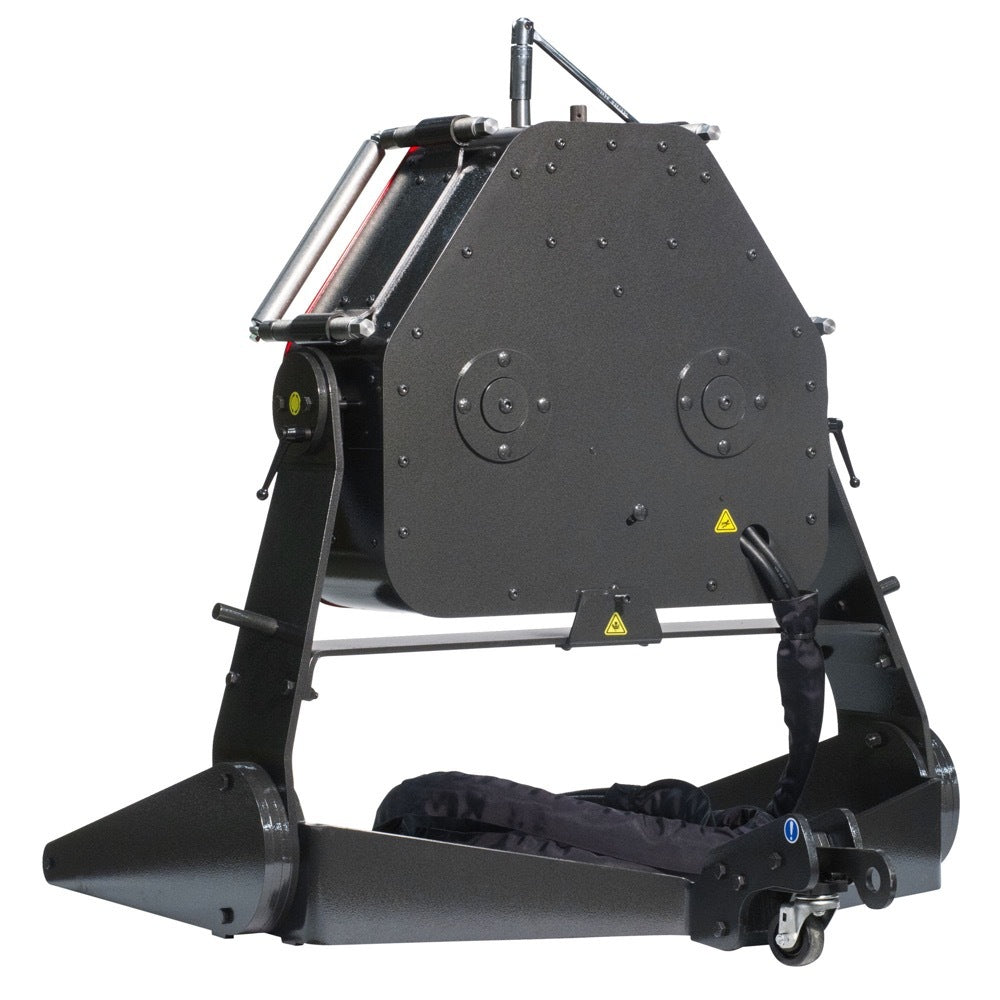

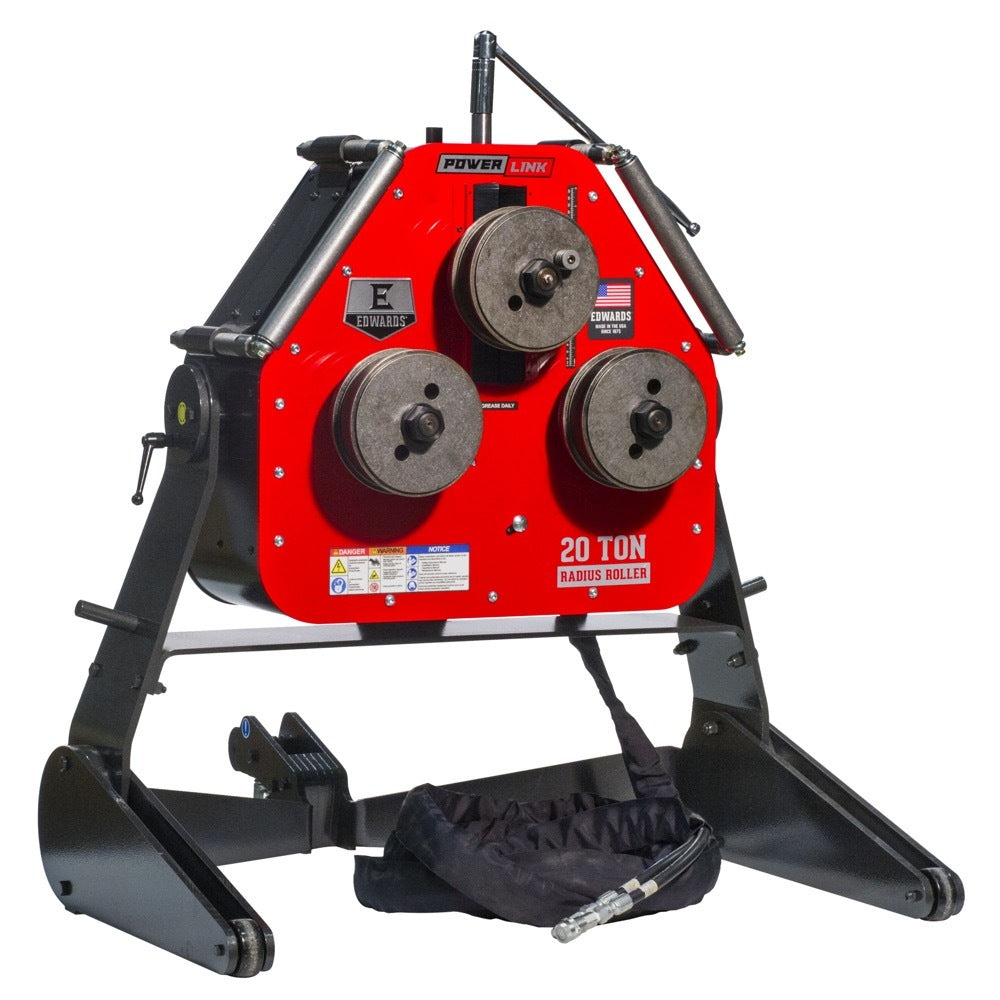

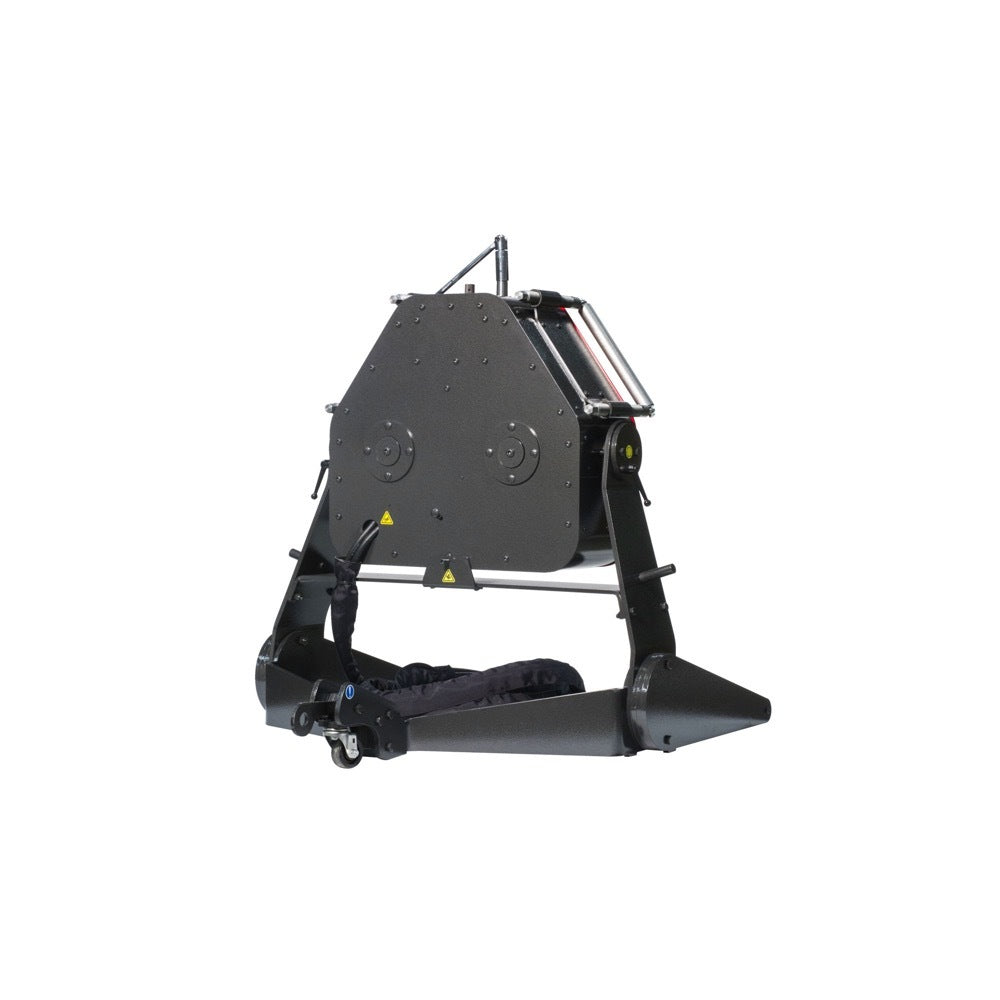

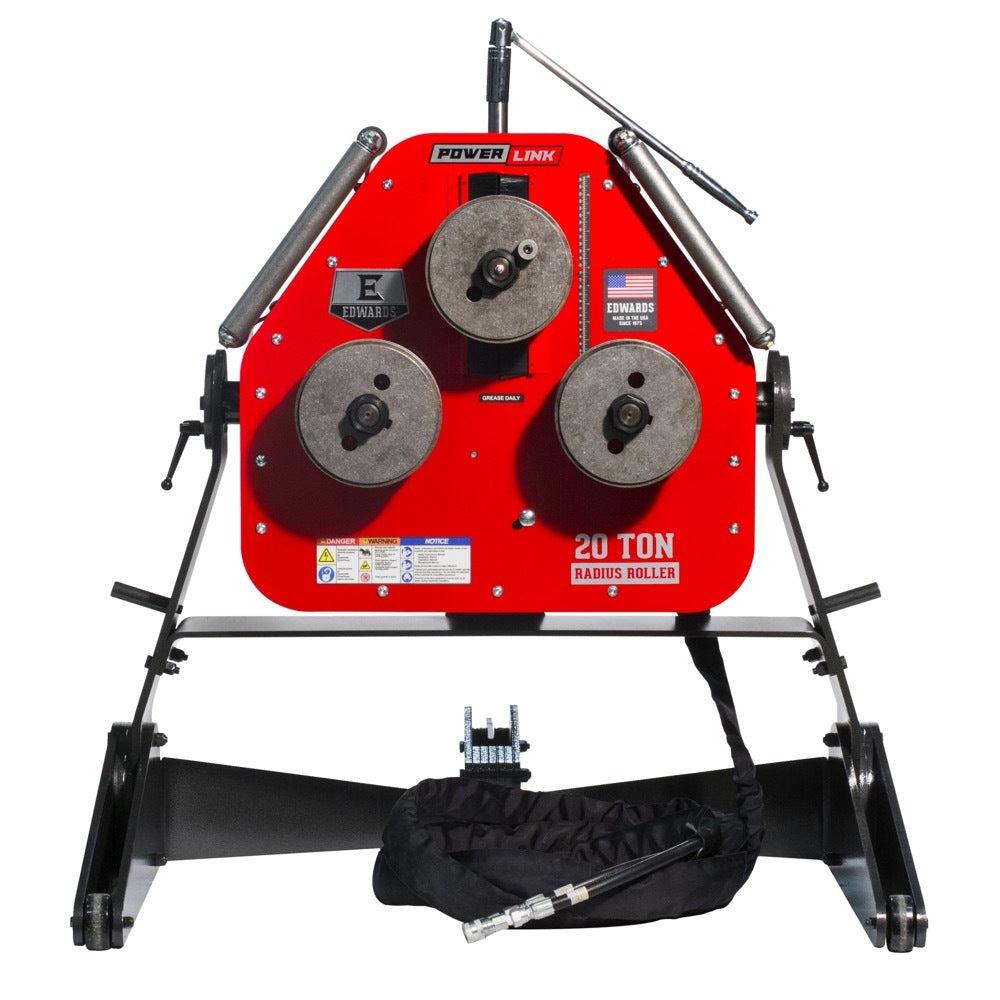

Edwards 20 Ton Radius Roller and Portable Power Unit 230V, 1Ph by Edwards is a heavy-duty rolling and bending solution engineered to produce smooth, long-diameter curves in a wide variety of materials including pipe, tube, square tube, solid round, flat bar, angle iron, and channel. Designed for both horizontal and vertical operation, this package arrives complete with a Portable Power Unit so it is ready to plug in and power up right out of the box.

Key Features

• Bends a smooth, long-diameter curve for a wide variety of materials including pipe, tube, square tube, solid round, flat bar, angle iron, and channel
• Horizontal or vertical operation provides the user flexibility depending on project requirements
• Variable speed hydraulic drive allows users to dial in the appropriate speed for different materials
• Includes a 6 Universal Piece Die Set that accepts square tube, flat bar, angle iron, and channel
• Optional dies available for round pipe, tube, or solid round
• Requires an Edwards Ironworker with PowerLink System or a Portable Power Unit to operate - Portable Power Unit is included with this package
• Heavy-duty rolling base for easy movement and storage when the project is complete
• Easy to use Hand/Jog controls with integrated E-Stop for operator safety
• 20-foot quick-connect hoses for simple plug-and-play operation
• Built-in storage on the frame for convenient organization

Specifications

• Brand: Edwards
• MPN: ED9-HAT5010
• Capacity: 20 Ton
• Voltage: 230V
• Phase: 1Ph (Single Phase)
• Operation Orientation: Horizontal or Vertical
• Drive Type: Variable Speed Hydraulic
• Hose Length: 20 ft quick-connect hoses
• Die Set Included: 6 Universal Piece Die Set

Approved Applications

• Rolling medium to heavy flat bar into smooth, long-diameter bends
• Bending angle iron and channel for structural and fabrication work
• Forming pipe, tube, and square tube into wide-radius curves
• Bending solid round stock for custom metalwork and fabrication projects
• Shop or field use thanks to the portable power unit and heavy-duty rolling base

What's Included

• Edwards 20 Ton Radius Roller
• Portable Power Unit (230V, 1Ph)
• 6 Universal Piece Die Set (accepts square tube, flat bar, angle iron, and channel)
• 20-foot quick-connect hoses

Frequently Asked Questions

Can this radius roller be used in both horizontal and vertical positions?

Yes. The Edwards 20 Ton Radius Roller is designed to operate either horizontally or vertically, giving users the flexibility to choose the orientation that best suits their specific project requirements.

Does this package include a power source, or do I need to purchase one separately?

This package includes a Portable Power Unit (230V, 1Ph), so it is ready to plug in and power up. It can also be operated using a compatible Edwards Ironworker with PowerLink System if one is available.

What materials can the 6 Universal Piece Die Set accommodate?

The included 6 Universal Piece Die Set accepts square tube, flat bar, angle iron, and channel. Optional dies are available separately for round pipe, tube, or solid round materials.

How is the variable speed hydraulic drive beneficial when bending different materials?

The variable speed hydraulic drive allows operators to dial in the appropriate rolling speed for each specific material, helping to achieve consistent, smooth, long-diameter bends whether working with lighter flat bar or heavier pipe and channel stock.

Note: Product Dimensions (In.) and additional dimensional data are subject to manufacturer specifications. Optional dies for round pipe, tube, or solid round are available separately and are not included with this package.
