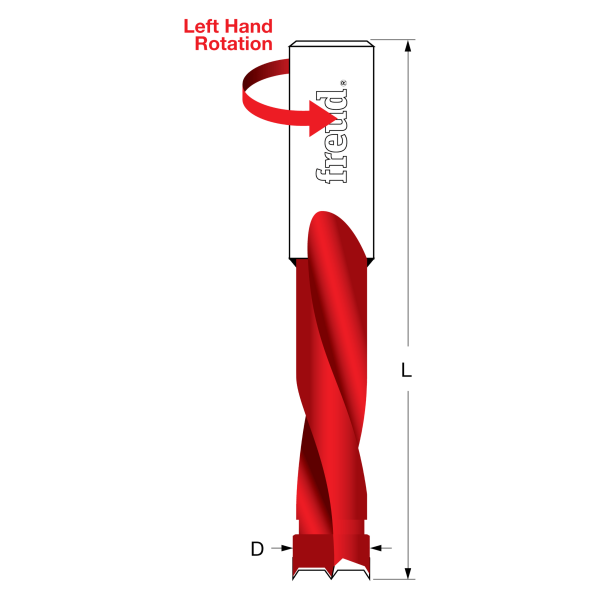

The Freud 7 mm Brad Point Bit is an industrial-grade carbide tipped boring bit engineered for precise, clean entry holes in a wide range of wood-based and composite materials. Designed specifically for use on multiple spindle boring machines - both automatic and manual - this left-hand rotation bit delivers the accuracy and durability that production woodworking and cabinet manufacturing applications demand. With a 10 mm shank fitted with an adjustable top screw, it integrates seamlessly with most boring machines, reducing setup time and keeping multi-spindle operations running efficiently.

Key Features

• Industrial carbide tips - provide exceptional hardness and edge retention, extending tool life far beyond standard high-speed steel alternatives in demanding production environments.
• 7 mm diameter with 70 mm overall length - delivers precise hole sizing ideal for shelf pin, dowel, and hardware boring applications common in cabinet and furniture production.
• 10 mm shank with adjustable top screw - ensures compatibility with most boring machine heads, simplifying changeovers and maintaining consistent positioning across multi-spindle setups.
• Left-hand rotation (LH) - specifically suited for left-hand spindle positions on multi-spindle boring machines, ensuring clean cutting action and reduced tearout on the workpiece face.
• Maximum hole depth of 35 mm - sufficient for standard cabinet and furniture boring requirements, including shelf pin sockets and dowel joints.
• Compatible with composites, solid surface, veneered plywood, hardwoods, and softwoods - one bit handles the full range of materials found in modern woodworking shops, reducing the need to swap tooling between jobs.
• Freud Limited Lifetime Guarantee - backs the bit against defects, giving buyers long-term confidence in their tooling investment.
• Made in Italy - manufactured to the precision tolerances that professional woodworking production requires.

Why This Product

• Built for high-volume production boring - the carbide tipped construction and compatibility with automatic multi-spindle boring machines make this bit a reliable choice for cabinet shops and furniture manufacturers who need repeatable results run after run.
• Versatile material compatibility - whether your workflow involves solid hardwoods, softwoods, veneered plywood, solid surface panels, or composite sheet goods, this single bit handles all of them without requiring separate tooling.
• Left-hand spindle ready - the LH rotation specification means this bit is the correct match for left-hand spindle positions, eliminating the risk of pairing the wrong rotation bit to a machine spindle and causing poor hole quality or bit damage.
• Backed by a Limited Lifetime Guarantee - Freud stands behind this bit's performance, making it a lower-risk investment for shops that depend on consistent boring quality day after day.

Specifications

• Brand: Freud
• Model Number: BP70070L
• Diameter: 7 mm
• Length: 70 mm
• Shank: 10 mm
• Maximum Hole Depth: 35 mm
• Rotation: LH
• Compatible Tools: Drill Press; Hand Held Drill
• Compatible Materials: Composites; Solid Surface; Veneered Plywood; Hardwoods; Softwoods
• Pack Quantity: 1
• Country of Origin: Italy

Approved Applications

• Drills all composition materials, solid surface materials, plywoods, hardwoods, and softwoods on automatic or manual multi-spindle boring machines.
