Product Description

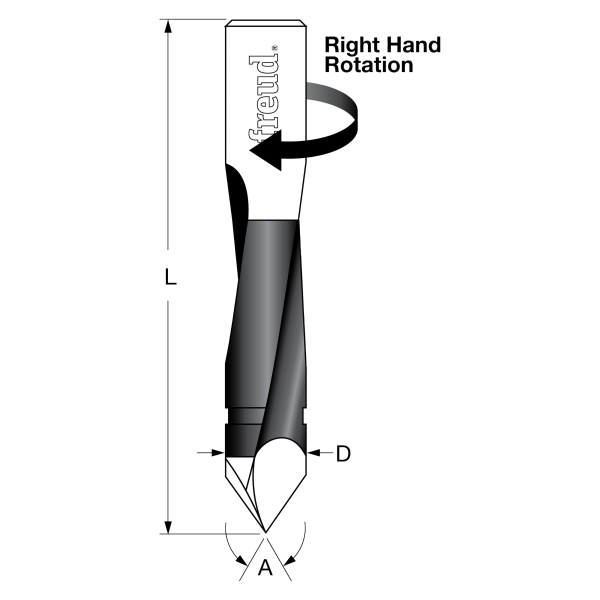

Freud 6 mm Through Hole Bit (TH60070R) is an industrial carbide tipped boring bit engineered for precision drilling on automatic and manual multi-spindle boring machines. With a 6 mm cutting diameter, 70 mm overall length, and a 60 deg. point angle, this right-hand rotation bit delivers accurate hole location for through holes in a wide range of wood and composite materials. The 10 mm shank with an adjustable top screw makes it compatible with most boring machines, while Freud's industrial-grade carbide tip construction ensures superior performance and extended service life across demanding production environments.
Key Features
- Industrial carbide tips - provide superior hardness and wear resistance, maximizing tool life in high-volume production drilling applications
- 60 deg. point angle - ensures accurate hole location for through holes, reducing wandering and improving precision when drilling composites, hardwoods, softwoods, and veneered plywood
- 10 mm shank with adjustable top screw - makes this bit compatible with most boring machines, offering flexibility across a range of multi-spindle setups without requiring additional adapters
- Right-hand rotation - matches the standard spindle direction of drill presses and multi-spindle boring machines, allowing straightforward installation and immediate use
- 35 mm maximum hole depth - accommodates standard through-hole requirements in cabinet panels, plywood, solid surface, and composite workpieces
- Freud Limited Lifetime Guarantee - backs the bit against defects, providing long-term value and confidence in the investment
Why This Product
- Designed specifically for multi-spindle boring machines - both automatic and manual - this bit handles the repetitive, high-throughput demands of cabinet and furniture production without sacrificing hole accuracy
- The 60 deg. point angle is purpose-built for accurate through-hole location, reducing setup time and scrap rates when boring panels of veneered plywood, hardwoods, softwoods, solid surface materials, and composites
- Carbide construction combined with Freud's Limited Lifetime Guarantee means this bit is built to outlast standard high-speed steel alternatives in demanding shop environments, protecting your tooling budget over time
- The adjustable top screw on the 10 mm shank gives this bit broad machine compatibility, making it a practical replacement or addition for shops running most common boring machines without the need for specialty toolholders
Specifications
- Brand: Freud
- Manufacturer Part Number: TH60070R
- Category: Through Hole Bits
- Diameter: 6 mm
- Length: 70 mm
- Shank: 10 mm
- Angle: 60 deg.
- Maximum Hole Depth: 35 mm
- Rotation: RH
- Compatible Tools: Drill Press; Hand Held Drill
- Compatible Materials: Composites; Solid Surface; Veneered Plywood; Hardwoods; Softwoods
- Pack Quantity: 1
- Country of Origin: Italy
Approved Applications
- Drills all composition materials, solid surface materials, plywoods, hardwoods, and softwoods on automatic and manual multi-spindle boring machines.
Frequently Asked Questions
What machines is the Freud TH60070R compatible with?
This through hole bit is designed for multiple spindle boring machines - both automatic and manual. The 10 mm shank features an adjustable top screw that makes it compatible with most boring machines. It can also be used with a drill press or hand held drill.
What materials can this bit drill through?
The TH60070R is designed to drill composites, solid surface materials, veneered plywood, hardwoods, and softwoods. Its industrial carbide tip construction provides the durability needed to handle this range of materials in production settings.
What is the maximum hole depth this bit can achieve?
The maximum hole depth for the Freud TH60070R is 35 mm. The overall bit length is 70 mm with a 6 mm cutting diameter, making it well suited for standard through-hole applications in panel and cabinet work.
Does this bit come with any warranty or guarantee?
Yes. The Freud TH60070R is backed by Freud's Limited Lifetime Guarantee, providing assurance of quality and long-term performance for the life of the tool.
