Product Description
The Freud 20 mm Diameter Cylinder (Hinge) Bit is a precision-engineered boring bit built for professional woodworking applications that demand clean, accurate holes with no bottom-side tear-out. Featuring industrial carbide tips and a 70mm length with a 10mm shank, this right-hand rotation bit is engineered for use on automatic and manual multi-spindle boring machines as well as drill presses and hand-held drills. Whether you are working with hardwoods, softwoods, veneered plywood, solid surface materials, or composites, Freud delivers consistent, repeatable results across a wide range of substrates.
Key Features
- Industrial carbide tips - provide superior cutting performance and extended tool life compared to standard high-speed steel bits, reducing replacement frequency on demanding production runs
- Two wing cutters and two spur cutters - work together to prevent bottom-side tear-out, delivering clean entry and exit holes in finished panels and veneered surfaces
- 10mm shank with adjustable top screw - ensures compatibility with most boring machines, making this bit a versatile drop-in addition to existing multi-spindle setups
- Right-hand rotation (RH) - matches the standard spindle direction of most drill presses and multi-spindle boring machines, so no additional setup or adapter is required
- 70mm overall length - provides sufficient depth clearance for hinge and cylinder boring tasks common in cabinet and furniture manufacturing
- Wood storage case included - protects the carbide tips during storage and transport, preserving sharpness and extending usable life between jobs
- Freud Limited Lifetime Guarantee - backs this bit against defects, giving buyers confidence in the long-term value of their investment
- Made in Italy - reflects Freud's European precision manufacturing standards for cutting tool performance
Why This Product
- Purpose-built for hinge and cylinder boring on multi-spindle machines, this bit addresses the precise tolerances required in cabinet door hinge installations and furniture production workflows where accuracy cannot be compromised.
- The industrial carbide tipped construction means this bit holds its edge through extended runs in hardwoods, softwoods, composites, and solid surface materials - reducing downtime and tooling costs in high-volume shop environments.
- The combination of spur and wing cutters actively prevents tear-out on veneered plywood and finished panels, protecting the visible face of the workpiece and reducing the need for rework or waste.
- Freud's Limited Lifetime Guarantee means this is a long-term tooling investment - not a consumable - making it a cost-effective choice for shops that need reliable boring performance day after day.

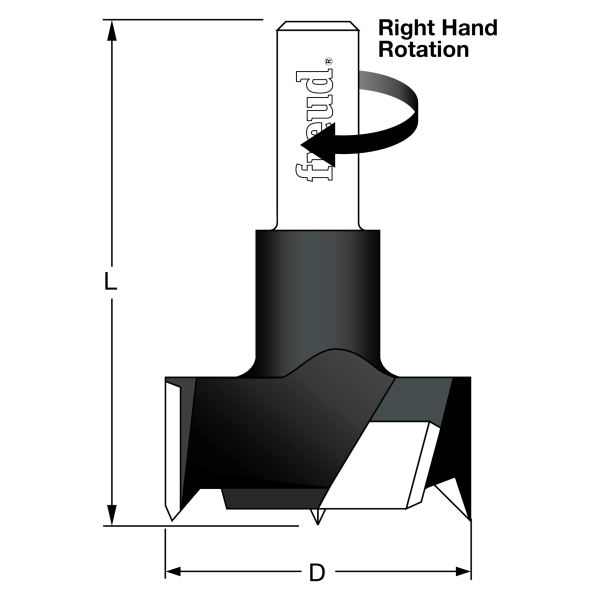

Specifications
- Brand: Freud
- Model Number: CB20070R
- Diameter: 20mm
- Length: 70mm
- Shank: 10mm
- Rotation: RH
- Compatible Tools: Drill Press; Hand Held Drill
- Compatible Materials: Composites; Solid Surface; Veneered Plywood; Hardwoods; Softwoods
- Pack Quantity: 1
- Country of Origin: Italy
Approved Applications
- Drills all composition materials, solid surface materials, plywoods, hardwoods, and softwoods. Use on automatic and manual multi-spindle boring machines.
- Cylinder and hinge boring in cabinet door construction and furniture manufacturing
- Multi-spindle machine boring operations in production woodworking environments
- Precision boring on drill presses and hand-held drills for shop and job-site use
What's Included
- 1x Freud 20mm Cylinder (Hinge) Bit (CB20070R)
- Wood storage case for protection and easy storage
Frequently Asked Questions
What machines is the Freud CB20070R compatible with?
This bit features a 10mm shank with an adjustable top screw, making it compatible with most boring machines including automatic and manual multi-spindle boring machines. It is also suitable for use with drill presses and hand-held drills.
What materials can this cylinder boring bit cut through?
The Freud CB20070R is designed to bore through composites, solid surface materials, veneered plywood, hardwoods, and softwoods. The industrial carbide tips maintain cutting performance across all of these substrates.
How does this bit prevent tear-out on veneered or finished panels?
The bit is engineered with two wing cutters and two spur cutters that work together to prevent bottom-side tear-out. This design helps protect the face of veneered plywood and other finished materials during boring operations.
What warranty does Freud offer on the CB20070R?
Freud backs this cylinder bit with their Limited Lifetime Guarantee, covering the bit against defects and supporting its long-term use in professional woodworking and production environments.
