Product Description
The Freud 20 mm Cylinder (Hinge) Bit is a precision-engineered boring bit built for accurate, clean-entry drilling in woodworking and cabinet production environments. Designed with industrial carbide tips and two wing cutters combined with two spur cutters, this hinge boring bit prevents bottom-side tear out - delivering smooth, accurate bores in composites, solid surface materials, veneered plywood, hardwoods, and softwoods. Whether used in a drill press or a hand held drill, this 20 mm bit is sized and configured for professional results on automatic and manual multi-spindle boring machines.
Key Features
- Industrial carbide tips - provide superior cutting durability and maximum bit life, reducing replacement frequency in high-volume boring operations.
- Two wing cutters and two spur cutters - work together to prevent bottom-side tear out, ensuring clean, accurate bores on veneered plywood and other finish-sensitive materials.
- 10 mm shank with adjustable top screw - ensures compatibility with most boring machines, making the bit easy to install and fine-tune without additional adapters.
- Right hand rotation - matches standard boring machine spindle direction, so the bit can be dropped into most multi-spindle setups without modification.
- 20 mm diameter, 57.5 mm length - precisely sized for hinge cup boring, meeting the common European hinge standard used in cabinet and furniture production.
- Wood case included - provides organized, protected storage between uses, helping maintain cutting-edge integrity and extending the working life of the bit.
- Freud Limited Lifetime Guarantee - backs the bit against defects, giving buyers confidence in a long-term professional tool investment.
Why This Product
- The industrial carbide tip construction is specifically designed for multiple spindle boring machines, making this the right choice for cabinet shops and millwork operations that need consistent, repeatable hinge cup holes across high volumes of panels.
- The combination of wing cutters and spur cutters actively prevents tear out on veneered plywood and composite materials - critical when surface quality matters on finished cabinet faces and door panels.
- The 10 mm shank with adjustable top screw gives this bit broad machine compatibility, so it installs directly into most manual and automatic multi-spindle boring setups without the need for special adapters or chucks.
- Backed by Freud's Limited Lifetime Guarantee and made with industrial carbide tips, this bit is built for long service life in demanding shop environments - reducing downtime and tooling costs over time.

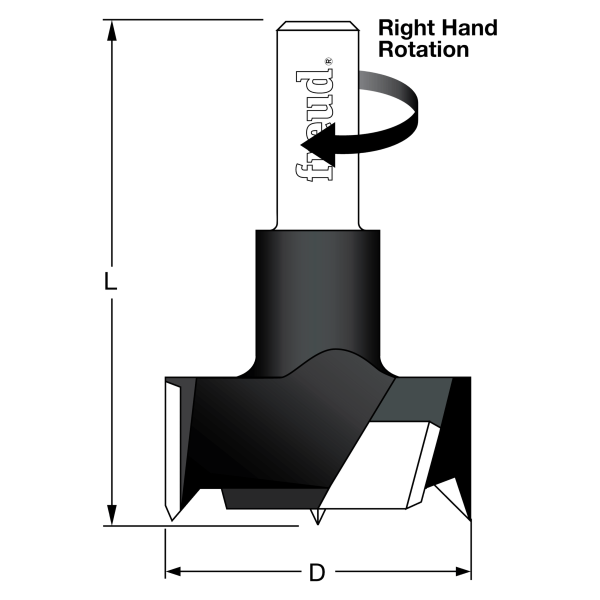

Specifications
- Brand: Freud
- Model Number: CB20057R
- Diameter: 20 mm
- Length: 57.5 mm
- Shank: 10 mm
- Rotation: Right Hand (RH)
- Compatible Tools: Drill Press; Hand Held Drill
- Compatible Materials: Composites; Solid Surface; Veneered Plywood; Hardwoods; Softwoods
- Pack Quantity: 1
- Country of Origin: Italy
Approved Applications
- Drills all composition materials, solid surface materials, plywoods, hardwoods, and softwoods. Use on automatic and manual multi-spindle boring machines.
What's Included
- 1x Freud 20 mm Cylinder (Hinge) Bit (CB20057R) in wood storage case
Frequently Asked Questions
What shank size does this Freud cylinder bit use, and will it fit my boring machine?
This bit uses a 10 mm shank with an adjustable top screw, which makes it compatible with most boring machines. The adjustable top screw allows for fine positioning adjustments to suit different machine setups without requiring additional adapters.
What materials can the Freud CB20057R bore through?
This cylinder hinge bit is designed to drill composites, solid surface materials, veneered plywood, hardwoods, and softwoods. The industrial carbide tips and spur-and-wing cutter design help prevent tear out across all of these materials, including finish-sensitive veneered surfaces.
Is this bit designed for right hand or left hand rotation?
The CB20057R is a right hand rotation (RH) bit. It is intended for use with standard boring machine spindles and drill presses that rotate in the right hand direction. Be sure to confirm your machine's spindle rotation before use.
Does this bit come with any storage or warranty coverage?
Yes - each bit is packaged in a wood case for easy storage and edge protection between uses. It is also covered by Freud's Limited Lifetime Guarantee, which backs the tool against defects and supports its use as a long-term professional boring solution.
