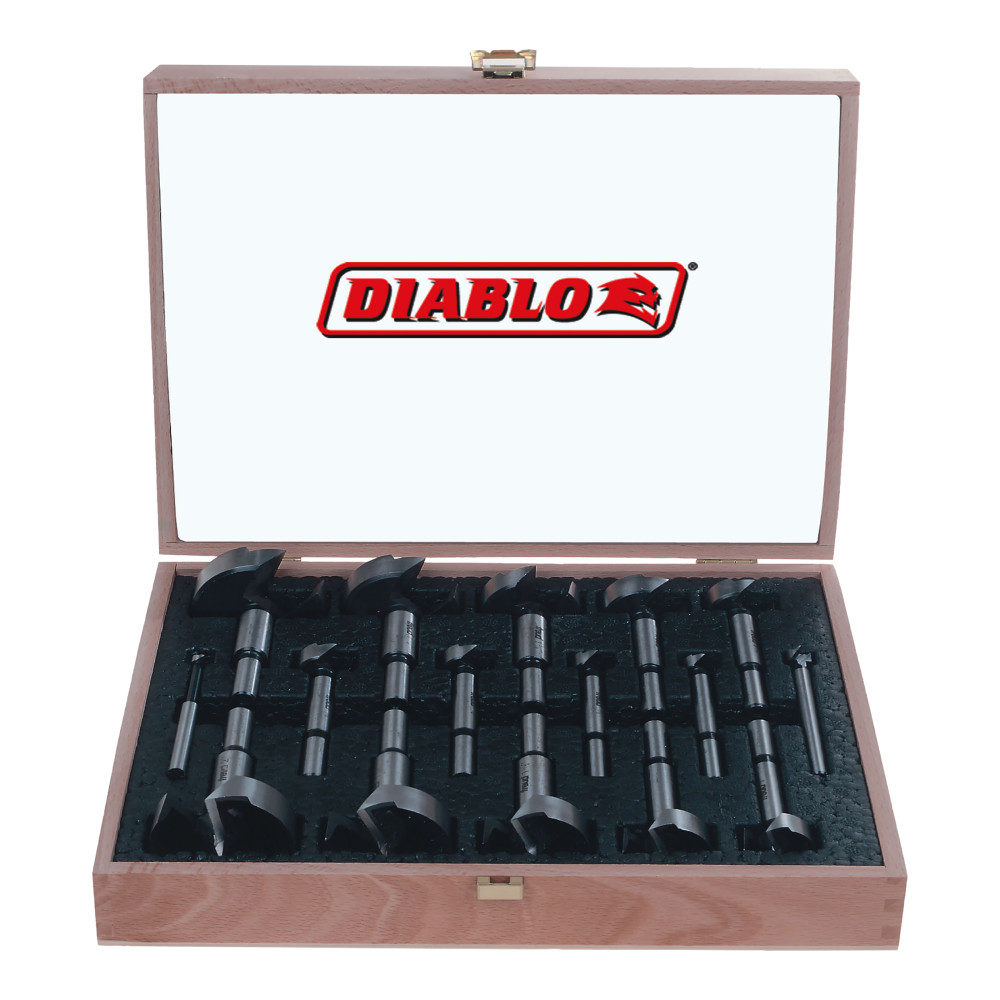

The Diablo Forstner Bit Set for Wood (16-pc) gives woodworkers and contractors a complete range of precision boring tools in a single kit. Engineered by Diablo with a hardened steel, forged construction, these high-speed steel bits are purpose-built for drilling flat bottom holes, pocket holes, and overlapping holes in hardwoods, softwoods, veneered plywood, and MDF. The set spans every size from 1/4 in. to 2 1/8 in. diameter, making it a versatile solution for cabinetry, furniture building, and general woodworking applications with both drill presses and handheld drills.

Key Features

• Forged hardened steel body construction - delivers longer cutting life and maintains a sharper cutting edge through demanding use in dense hardwoods and sheet goods
• Steep, angled cutting edges that produce smooth, flat holes and create chisel-like curls - allows for fast, clean chip removal so work surfaces stay clean and bits stay cooler
• Ultra-sharp spur at the tip - prevents the bit from walking on the material surface, so every hole starts exactly where you intend it
• Double-ground serrated rim edge - reduces splintering and chipping, resulting in cleaner hole edges in veneered plywood and finished wood surfaces
• Set contains all 16 Diablo forstner bits from 1/4 in. to 2 1/8 in. diameter - eliminates the need to purchase individual bits and covers the full range of common woodworking hole sizes
• Compatible with drill presses and handheld drills - gives you flexibility across shop and job-site setups without needing separate bit sets
• Requires a minimum chuck size of 3/8 in. - fits most standard drill presses and handheld drill chucks used in professional and workshop environments
• Overall length of 3 1/2 in. - provides adequate reach for pocket hole applications and deeper boring tasks without excessive flex

Why This Product

• A single set covers 1/4 in. through 2 1/8 in. diameters across 16 individual bits - so cabinetmakers, finish carpenters, and woodworkers have every common flat bottom boring size on hand without hunting for individual pieces
• The serrated rim combined with steep angled cutting edges means cleaner results in both veneered plywood and solid hardwoods - reducing sanding and rework time on finished surfaces
• The ultra-sharp centering spur prevents bit walking at the start of each hole - a critical advantage when precision matters in furniture joinery, shelf pin holes, and hinge mortising
• Forged hardened steel construction is built to handle repeated use in dense materials like hardwoods and MDF - giving professional users a set that holds up over time instead of dulling quickly

Specifications

• Brand: Diablo
• Manufacturer Part Number: FB-100
• Diameter: 1/4 in. to 2 1/8 in.
• Length: 3 1/2 in.
• Shank: 1/4 in. to 3/8 in.
• Piece Count: 16
• Compatible Tools: Drill Press; Hand Held Drill
• Compatible Materials: Hardwoods; Softwoods; Veneered Plywood; MDF
• Country of Origin: Austria

Approved Applications

• Drilling flat bottom holes in hardwoods, softwoods, and veneered plywood
• Creating pocket holes for woodworking joinery
• Boring overlapping holes for shaped cutouts and decorative work
• Angled hole drilling in nearly every type of wood

What's Included

• 1x FB-001 Forstner Bit
• 1x FB-002 Forstner Bit
• 1x FB-003 Forstner Bit
• 1x FB-004 Forstner Bit
• 1x FB-005 Forstner Bit
• 1x FB-006 Forstner Bit
• 1x FB-007 Forstner Bit
• 1x FB-008 Forstner Bit
• 1x FB-009 Forstner Bit
• 1x FB-010 Forstner Bit
• 1x FB-011 Forstner Bit
• 1x FB-012 Forstner Bit
• 1x FB-013 Forstner Bit
• 1x FB-014 Forstner Bit
• 1x FB-015 Forstner Bit
• 1x FB-016 Forstner Bit
