Product Description

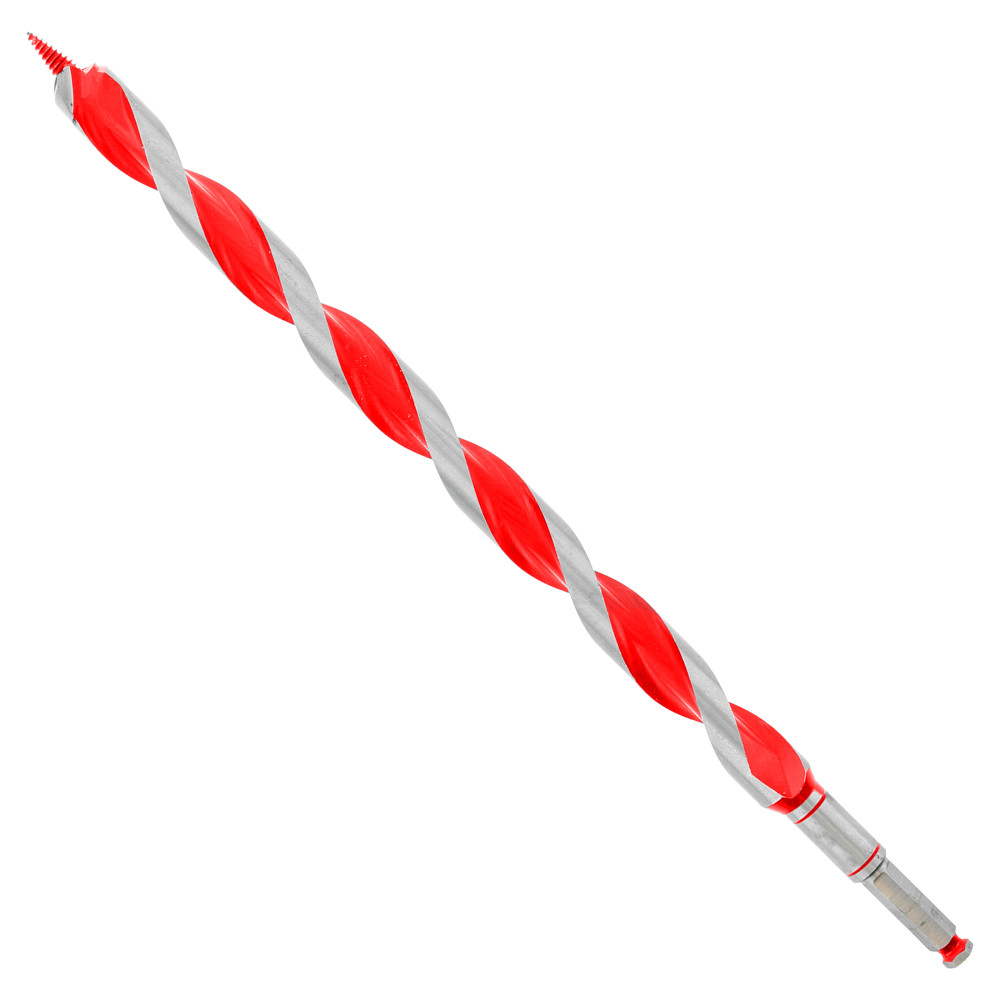

The Diablo 1" x 17-1/2" Auger Bit for Wood and Nail-Embedded Wood delivers maximum performance and extreme durability for demanding wood drilling tasks including wood framing, stacked furniture, gardening, and plumbing applications. Engineered by Diablo, this long-reach auger bit combines a self-feeding tip with a dual cutting edge to drive through hardwoods, softwoods, plywood, and nail-embedded lumber with effortless precision - making it a reliable choice for professionals and tradespeople who need clean, accurate holes in tough materials.
Key Features
- Two-step cutting action for precise, clean holes in wood drilling applications - reduces tear-out and ensures accurate bore diameter even in dense or layered wood
- Dura-Tip self-feeding point for extreme durability in nail-embedded wood - the tip pulls the bit forward automatically, reducing operator push force and increasing control
- Dual cutting edge design for effortless, smooth hole drilling in nail-embedded wood - minimizes binding and keeps drilling momentum consistent even when nails are encountered
- Deep flutes for fast chip removal - rapidly clears waste material from the bore, supporting more holes per battery charge when used with cordless drill drivers
- 7/16 in. hex quick change shank increases stability and durability in cordless and corded impact wrenches and drill drivers - tool-free bit changes speed up workflow on the job site
Why This Product
- Designed specifically for nail-embedded wood - the Dura-Tip and dual cutting edge work together to handle nails without sacrificing hole quality, making this bit well-suited for demolition-adjacent framing and retrofit plumbing or electrical work
- The 17-1/2" overall length with a 13-1/2" working length gives tradespeople the deep reach needed for wood framing, stacked lumber, and through-wall plumbing or gardening installations without requiring extensions
- Compatible with both cordless and corded drill drivers via the 7/16 in. hex quick change shank, so it integrates into existing tool setups without additional adapters
- Deep flute geometry prioritizes chip evacuation, which helps sustain drilling speed across multiple holes and extends battery runtime on cordless tools - a practical advantage in high-volume framing or plumbing tasks
Specifications
- Brand: Diablo
- Model Number: DAG3110
- Diameter: 1"
- Length: 17-1/2"
- Working Length: 13-1/2"
- Shank: Hex 7/16"
- Compatible Tools: Drill/Driver
- Compatible Materials: Hardwoods; Softwoods; Nail-Embedded Wood; Plywood
- Pack Quantity: 1
- Product Group: Auger Bits
- Category: Individual Bits
Approved Applications
- Drilling clean wood and nail-embedded wood
- Wood framing
- Stacked furniture
- Gardening applications
- Plumbing applications
Frequently Asked Questions
Can this auger bit drill through wood that contains embedded nails?
Yes. The Diablo DAG3110 is specifically engineered for nail-embedded wood. The Dura-Tip provides extreme durability when it contacts nails, and the dual cutting edge maintains smooth drilling momentum through nail-embedded lumber without losing hole quality.
What shank type does this bit use, and is it compatible with impact drivers?
This bit features a 7/16 in. hex quick change shank, which is compatible with both cordless and corded impact wrenches and drill drivers. The quick change design allows tool-free bit swaps, and the hex shank geometry increases stability and durability during high-torque drilling.
What is the working length versus the total length of this bit?
The Diablo DAG3110 has a total length of 17-1/2" and a working length of 13-1/2". The extended reach makes it well-suited for deep drilling tasks such as through-wall plumbing runs, wood framing, and stacked or layered wood applications.
What wood materials is this auger bit rated to drill?
This bit is rated for use in hardwoods, softwoods, plywood, and nail-embedded wood. Its two-step cutting action and deep flute design support clean, efficient boring across all of these material types in applications such as wood framing, gardening, and plumbing work.
