Product Description

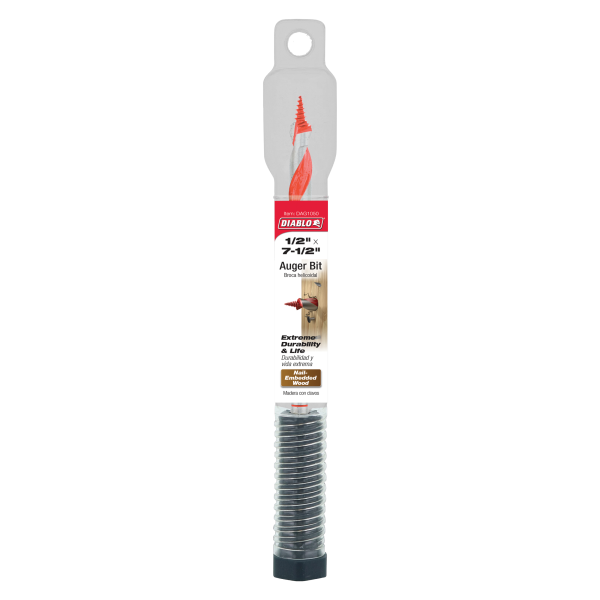

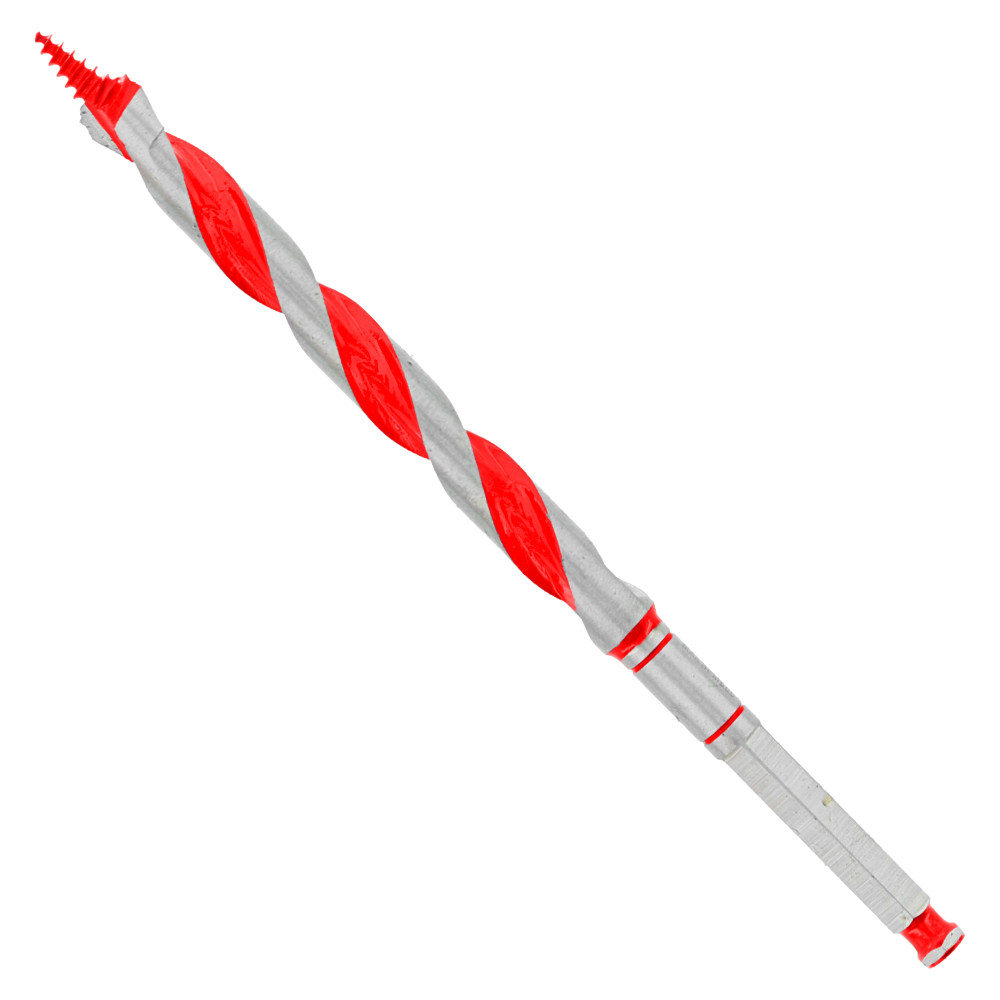

The Diablo 1/2 in. x 7-1/2 in. Auger Bit for Wood and Nail-Embedded Wood is engineered for professional-grade drilling in a wide range of wood materials, including hardwoods, softwoods, plywood, and lumber with embedded nails. Diablo designed this bit with a two-step cutting action and a self-feeding Dura-Tip to deliver fast, clean, and precise holes - even when working through challenging nail-embedded framing lumber. Whether you are tackling wood framing, plumbing rough-ins, stacked furniture assembly, or gardening installations, this auger bit is built to keep up with demanding jobsite conditions while maximizing drilling efficiency per battery charge.
Key Features
- Two-step cutting action - creates precise, clean holes in wood drilling applications, reducing tearout and minimizing cleanup time on finished work
- Dura-Tip self-feeding point - pulls the bit forward automatically for extreme durability in nail-embedded wood, eliminating the need for excessive downward pressure from the operator
- Dual cutting edge design - delivers an effortless, smooth hole drilling experience in nail-embedded wood, reducing operator fatigue during extended use
- Deep flutes for fast chip removal - evacuates wood chips quickly and efficiently, translating into more holes per battery charge and less time clearing the hole
- 5/16 in. hex quick change shank - increases stability and durability in both cordless and corded impact wrenches and drill drivers, providing a secure fit and reducing wobble during drilling
Why This Product
- Designed specifically for nail-embedded wood - the Dura-Tip and dual cutting edge work together so you can drill through lumber with nails without switching bits or risking premature wear on a standard auger bit
- The deep flute geometry accelerates chip evacuation, meaning fewer pauses to clear debris and more productive holes on a single battery charge - a real advantage in high-volume wood framing and plumbing rough-in work
- The 5/16 in. hex quick change shank is compatible with cordless drill drivers and corded impact wrenches, making this bit a versatile choice across different tool setups on the same jobsite
- A working length of 5-1/2 in. on a 7-1/2 in. overall bit provides the reach needed for typical wood framing, stacked furniture, and plumbing penetrations without requiring an extension
Specifications
- Brand: Diablo
- Model Number: DAG1050
- Diameter: 1/2 in.
- Length: 7-1/2 in.
- Working Length: 5-1/2 in.
- Shank: Hex 5/16 in.
- Compatible Tools: Drill/Driver
- Compatible Materials: Hardwoods; Softwoods; Nail-Embedded Wood; Plywood
- Pack Quantity: 1
Approved Applications
- Drilling clean wood and nail-embedded wood
- Wood framing applications
- Stacked furniture assembly
- Gardening applications
- Plumbing applications
Frequently Asked Questions
Can this auger bit drill through wood that contains embedded nails?
Yes. The Diablo DAG1050 is specifically engineered for nail-embedded wood. The Dura-Tip self-feeding point and dual cutting edge work together to maintain performance and durability when encountering nails embedded in framing lumber or other wood materials.
What type of tool does this bit require?
This auger bit is designed for use with a drill driver. The 5/16 in. hex quick change shank provides a secure, stable fit in both cordless and corded drill drivers and impact wrenches.
What is the difference between the overall length and the working length of this bit?
The overall length of the bit is 7-1/2 in., which includes the shank. The working length - the portion of the bit that actively drills into the material - is 5-1/2 in. This working length determines the maximum depth of hole you can drill without an extension.
What wood materials is this bit rated to drill?
The Diablo DAG1050 is rated for use in hardwoods, softwoods, plywood, and nail-embedded wood, making it suitable for a broad range of wood framing, plumbing, stacked furniture, and gardening applications.
