Product Description

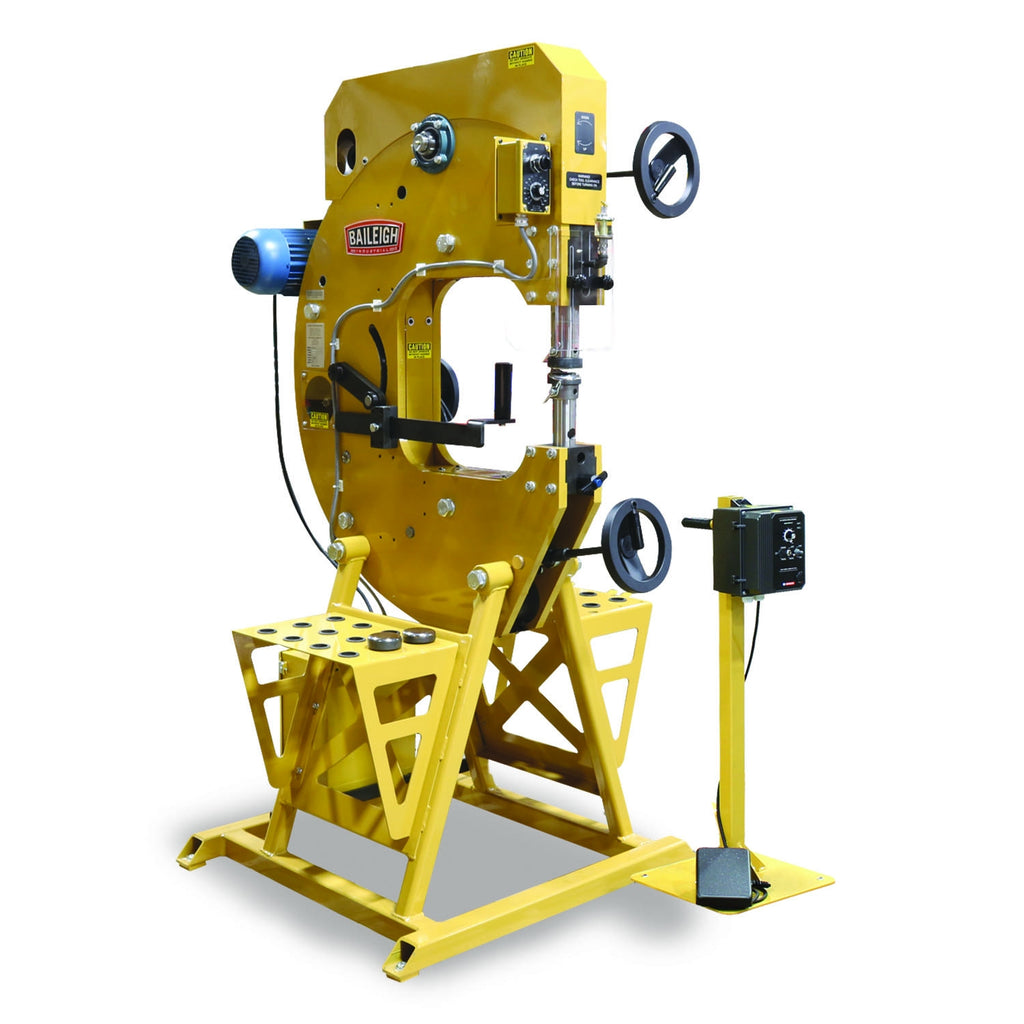

Baileigh Power Hammer MH-19 is a professional-grade metal-shaping machine from Baileigh designed to handle the full spectrum of panel-shaping and planishing work. Built from 1"-thick steel, this USA-made power hammer delivers the structural rigidity and performance that fabricators and metalworkers demand, whether they are drastically shaping panels or achieving a refined planished finish.
Key Features
- Constructed from 1"-thick steel for exceptional rigidity and long-term durability

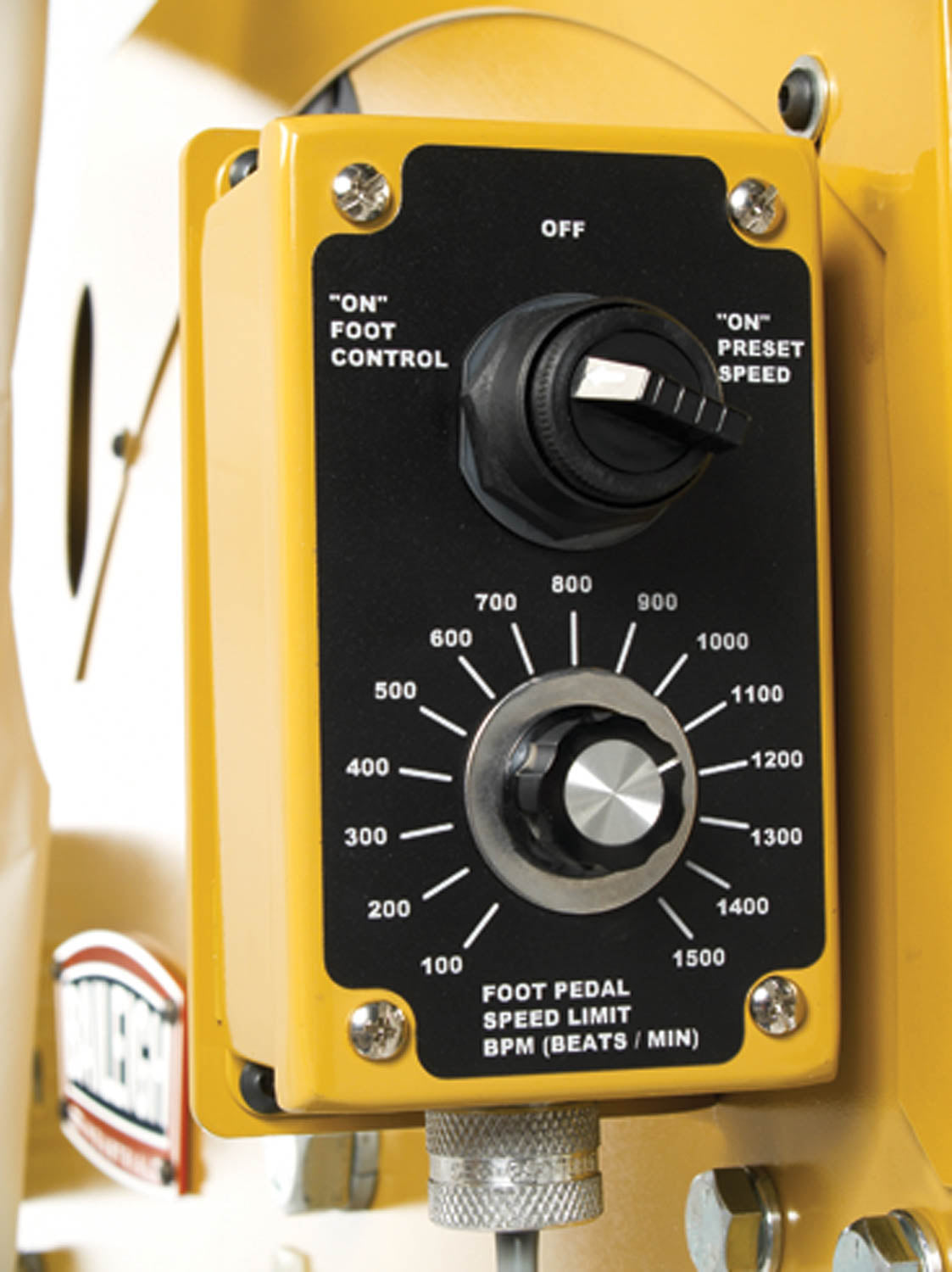

- Variable speed range of 0-1,500 beats per minute gives precise control over every operation

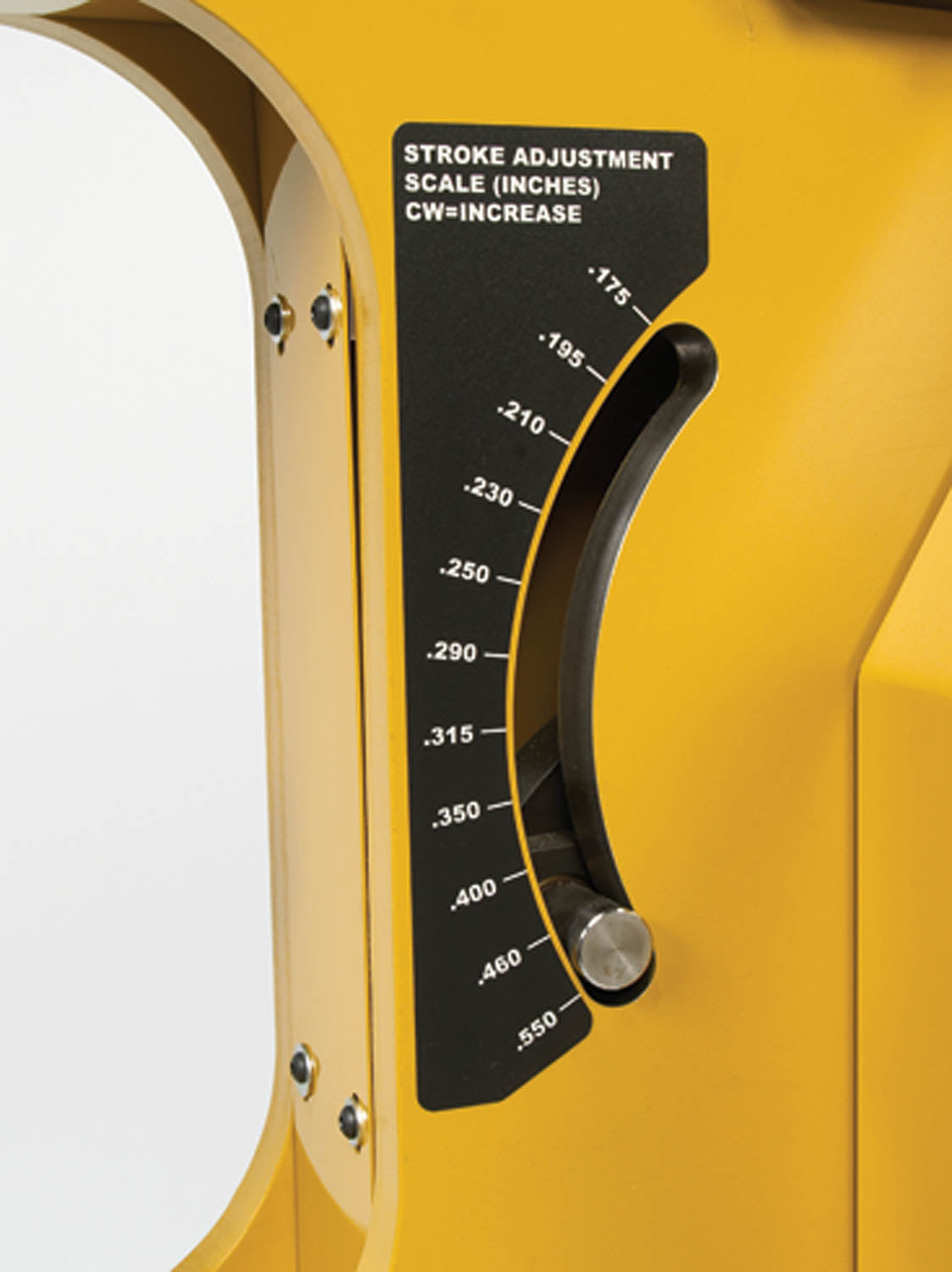

- Adjustable stroke length from .177 in. to .550 in. accommodates a wide variety of shaping tasks
- Generous 19-inch throat depth allows work on large panels and complex pieces
- Accepts a bolt-on planishing hammer attachment directly to the side of the machine for finishing work
- Compatible with the optional English wheel kit (MH19ENGLWHEEL) for expanded versatility
- Flexible 110/220 single-phase input power makes it adaptable to a variety of shop electrical setups
- Capable of working 12-gauge aluminum and 16-gauge mild steel
Specifications
- MPN: BA9-MDL-MH19
- Brand: Baileigh
- Country of Origin: United States
- Aluminum Capacity (gauge): 12
- Mild Steel Capacity (gauge): 16
- Input Power: 110/220 Single Phase
- Range of Speeds: 0-1,500 beats / minute
- Stroke Length: .177 in. to .550 in.
- Throat Depth: 19 in.
Approved Applications
- Dramatically shaping metal panels for automotive bodywork and custom fabrication
- Planishing metal surfaces to achieve a smooth, finished appearance
- English wheel-style forming when paired with the optional MH19ENGLWHEEL kit
- General metalworking tasks requiring variable-speed hammer control
Options
- English Wheel Kit: MH19ENGLWHEEL - expands machine versatility for additional forming operations
- Planishing Hammer Attachment: Bolts to the side of the MH-19 for finishing work
Frequently Asked Questions
- What materials can the Baileigh MH-19 power hammer work with?
- The MH-19 is rated to work with up to 12-gauge aluminum and up to 16-gauge mild steel, making it suitable for a broad range of metal-shaping projects.
- Can I use the MH-19 for planishing as well as panel shaping?
- Yes. A planishing hammer attachment can be bolted directly to the side of the machine, allowing you to both drastically shape panels and finish pieces without needing a separate dedicated tool.
- What power supply does the Baileigh MH-19 require?
- The MH-19 operates on 110/220 single-phase input power, giving it the flexibility to be used in a wide variety of shop electrical configurations.
- Is there an accessory to add even more capability to the MH-19?
- Yes. The optional English wheel kit (MH19ENGLWHEEL) is a robust accessory that brings additional versatility to the machine, expanding the range of forming operations it can perform.
