Product Description

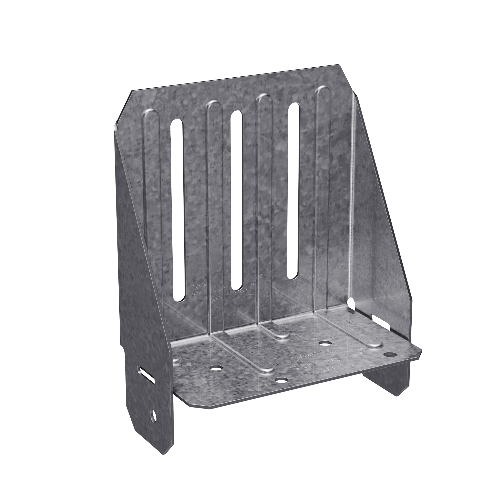

The Simpson HTC4 HTC 18-Gauge Galvanized Heavy Truss Clip by Simpson Strong-Tie is engineered to provide precise alignment control between a roof truss and nonbearing walls. Its 2-1/2 in. slot permits vertical truss chord movement when loads are applied, making it a trusted solution for contractors and engineers who demand performance and reliability in structural connections.
Key Features
- 2-1/2 in. slot to accommodate truss movement
- This connector has high lateral capacity
- Made from 18-gauge steel
- Galvanized (G90) for extra corrosion resistance
Specifications
- Model Number: HTC4
- Gauge: 18
- Coating: Zinc Galvanized, G90
- Finish: Zinc Galvanized, G90
- Country of Origin: United States
Approved Applications
- Alignment control between a roof truss and nonbearing walls
- Applications requiring vertical truss chord movement accommodation under applied loads
Frequently Asked Questions
- What is the primary purpose of the Simpson HTC4 Heavy Truss Clip?
- The HTC4 provides alignment control between a roof truss and nonbearing walls. The 2-1/2 in. slot permits vertical truss chord movement when loads are applied, helping maintain structural integrity and preventing damage caused by truss deflection.
- What fasteners should be used to install the HTC4?
- The HTC4 should be installed with 10d common nails for a proper and secure connection.
- What gauge steel is the HTC4 made from, and what corrosion protection does it have?
- The HTC4 is made from 18-gauge steel and features a Zinc Galvanized (G90) coating, which provides extra corrosion resistance for long-lasting performance.
- Does the HTC4 have high lateral load capacity?
- Yes, the HTC4 heavy truss clip is engineered with high lateral capacity, making it well-suited for structural connections where lateral forces must be effectively transferred between the truss and nonbearing wall.
